计算机系统II

硬件 Week1 - 6

Review Week1

Why not single-cycle?

• longest delay determines clock period
• waste of area(e.g. mul need to use ALU repeatedly)

Why not multi-cycle?

• even longer time (longer than single-cycle)
• a new perspective:finer-grained

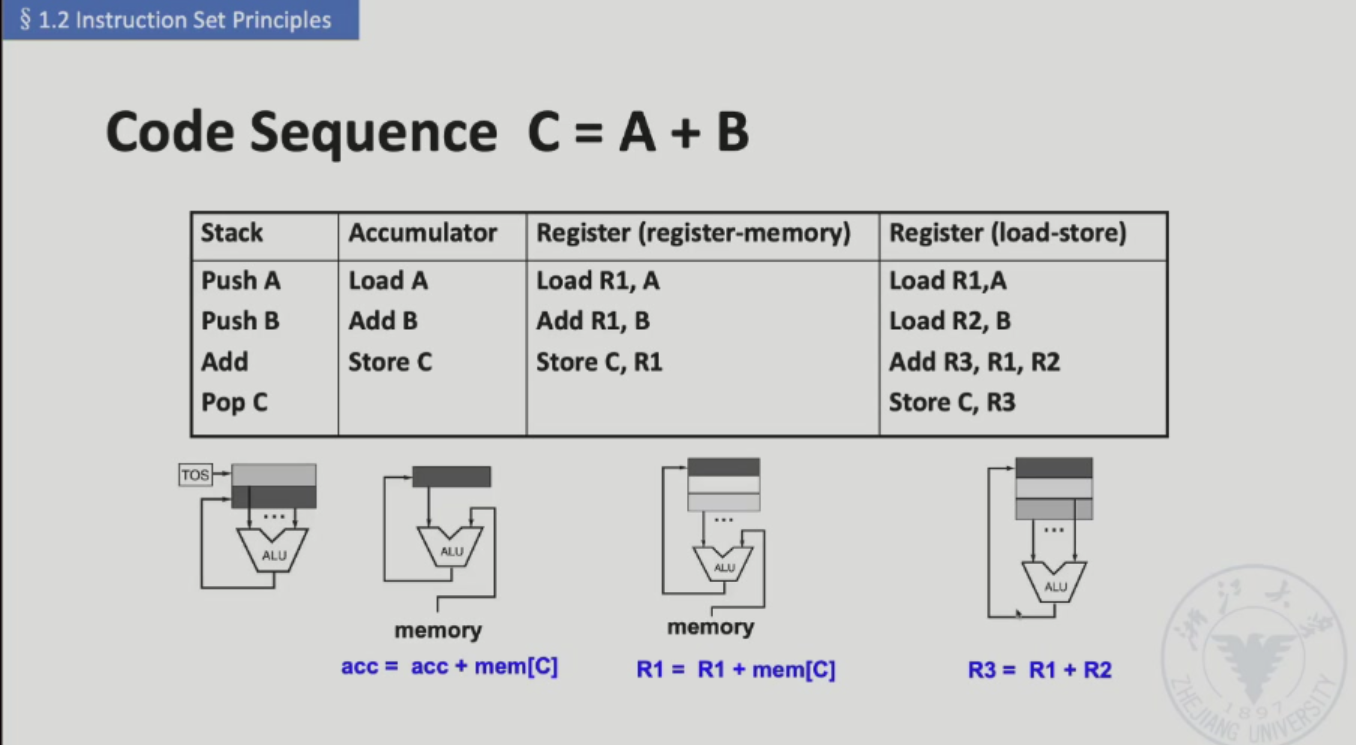

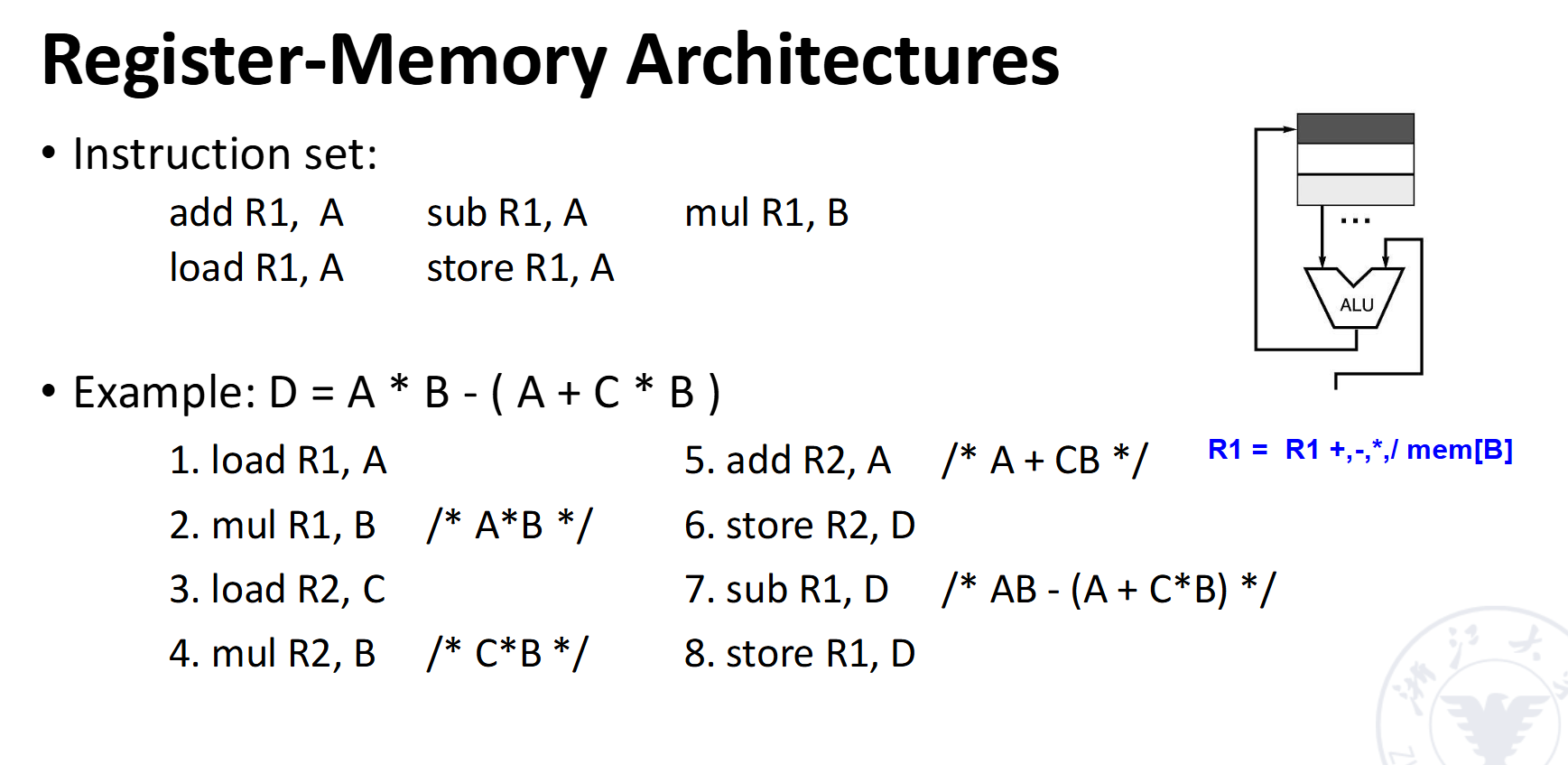

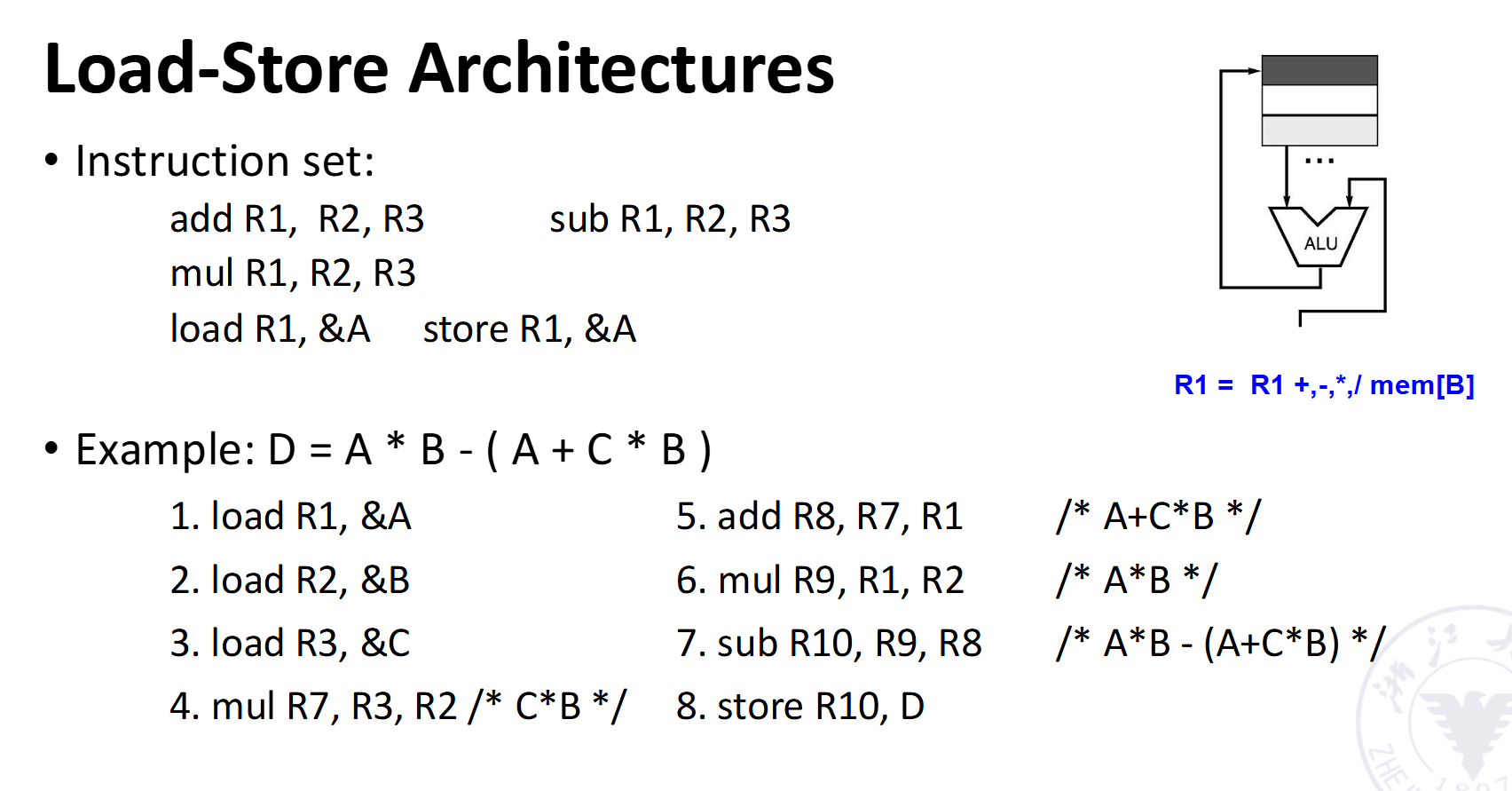

ISA:stack,accumulator,register(register-memory),register(load-store)

practice:D = A * B - (A + C * B)

//stack:
push A
push B
mul
push A
push C
push B
mul
add
sub   //这是正确的 栈顶指针指向的元素是第二操作数
pop D


//accumulator:
load A
mul B
store E
load C
mul B
add A
store F
load E
sub F  //第一操作数是寄存器 第二操作数是内存变量
store D

//优化：
load B
mul C
add A
store D
load A
mul B
sub D
store D

不同操作数的数目意味着不同的指令数

优化CPU：
减少指令条数（CISC一条指令蕴含操作更多）

使用带累加器的GPR：更快更便捷
取址模式：立即数寻址、寄存器寻址、基于偏移的内存寻址
内存寻址：排列（小端序RISC-V，大端序）、对齐（不对齐可能需要多次访存操作）

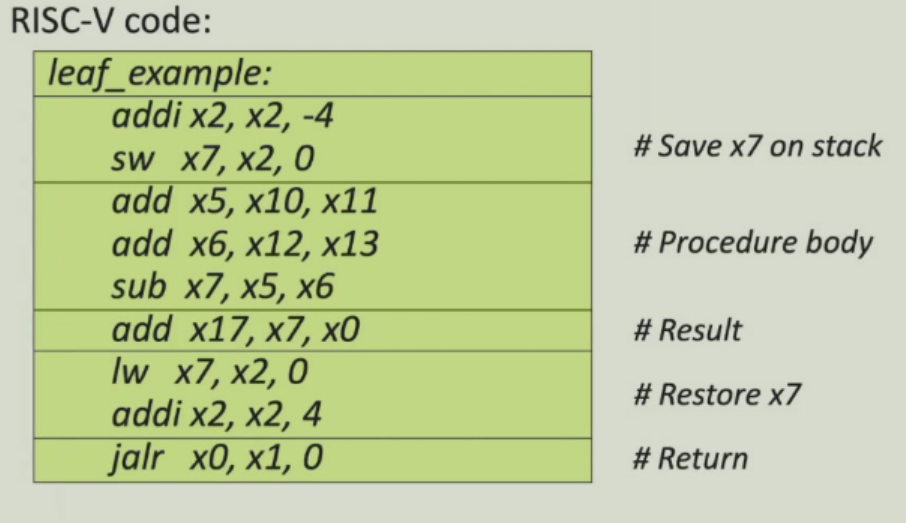

2000 jal x1,procedureoffset
2004 add ...
...
3000 proc sub ...
     ret

x1存的地址应该是2004，确保跳转后的指令是没有执行过的

jalr x3(效果同jal的x1),x1(基地址 编码空间 jal只能跳转32-5-7=20位，x1用于跳转到更大的范围),offset 执行前有要保证x7的值不变，以免外部程序调用时出错
为了状态保存，有两种寄存器保存方法：caller saving(可能需要保存所有寄存器)/callee saving(从函数的声明可知所需的寄存器)

流水线 Week2 - 6

流水线基础 Week2 - 3

1.流水线：co-use dependent function areas
average:faster
individual:slower for queueing

IF ID EX(ALU)
sequential execution:IF_K ID_K EX_K IF_K+1 ID_K+1 EX_K+1
优点：容易实现，器件更少(不会发生冲突)
overlapping execution:
t_IF = t_ID = t_EX = Δt
execute time for n instructions:
优点：快，器件利用率提高

单重叠（执行第k条指令的同时fetch第k+1条）：T = (2n+1)Δt
优点：节省1/3的时间；提高利用率
缺点：添加寄存器，控制硬件与逻辑更复杂

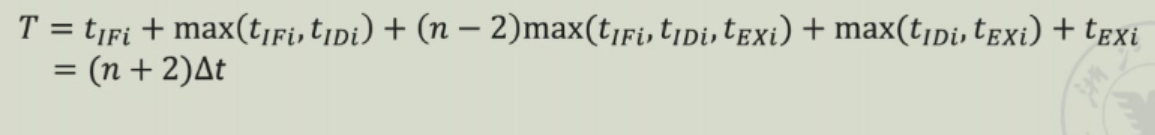

双重叠：T = (n+2)Δt
优点：节省2/3的时间；提高利用率
缺点：硬件进一步增加；必须将fetch,decode,execute完全分开

假设：IF + ID = EX
单重叠: T = (n+1)Δt
=> 阶段划分的合理性(非RISC-V)(RISC-V中，IF很慢，因为需要访问寄存器)

流水线：基于重叠执行的扩展（冒险）
子过程：stages/segments
深度depth：the number of segments（指令执行的条数）

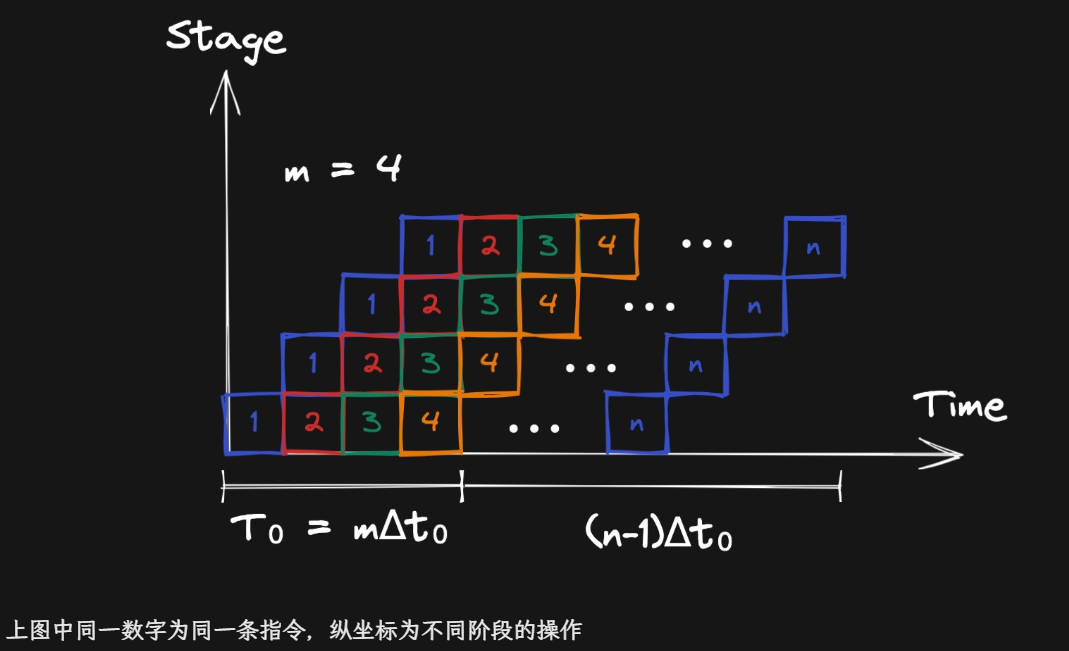

space-time图
多周期的实际执行时间＞单周期，但其实现思路可以借鉴到pipelining
性质：
(1)划分子过程，每个阶段有对应的功能模块实现
(2)每个阶段的时长要尽可能相等以确保效率，瓶颈bottleneck：最长的阶段，决定时钟周期
(3)每个阶段的功能块需要一个buffer register（缓存寄存器/流水线的阶段间寄存器）在下一个时钟周期来临前存储这一阶段数据
(4)适用范围：大量重新执行过程；充满
(5)pass time:进入时间（从开始到充满） empty time:排空时间（从充满到全部执行完）
分类：

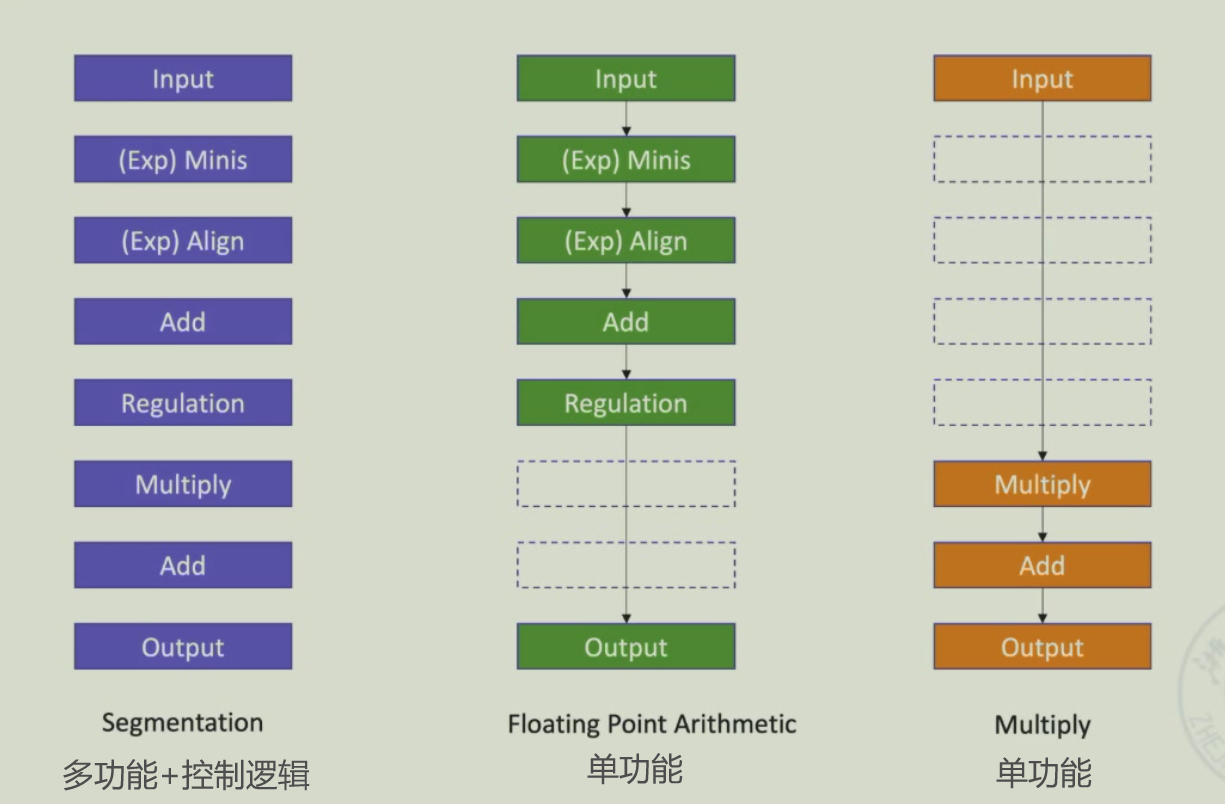

(1)单功能与多功能（功能：加减乘除与或非） (2)静态流水线与动态流水线（都是多功能流水线）
静态：单一时间只能完成一个功能
动态：前一功能未执行完就可 以执行另一功能的操作
灵活，效率高；但冲突，控制逻辑复杂
(3)算术逻辑操作层流水component level，指令层流水processor level，跨处理器流水inter processor level
(4)线性与非线性：feedback loop 指令执行过程中，数据流动是否存在回环（器件重复利用）
非线性流水线需要调度以避免冲突/调度表
(5)循序与乱序：指令结束的顺序是否与进入的顺序相同
(6)标量处理器与矢量处理器：处理器是否包含矢量表征与矢量指令，e.g.GPU

2.流水线的实现:

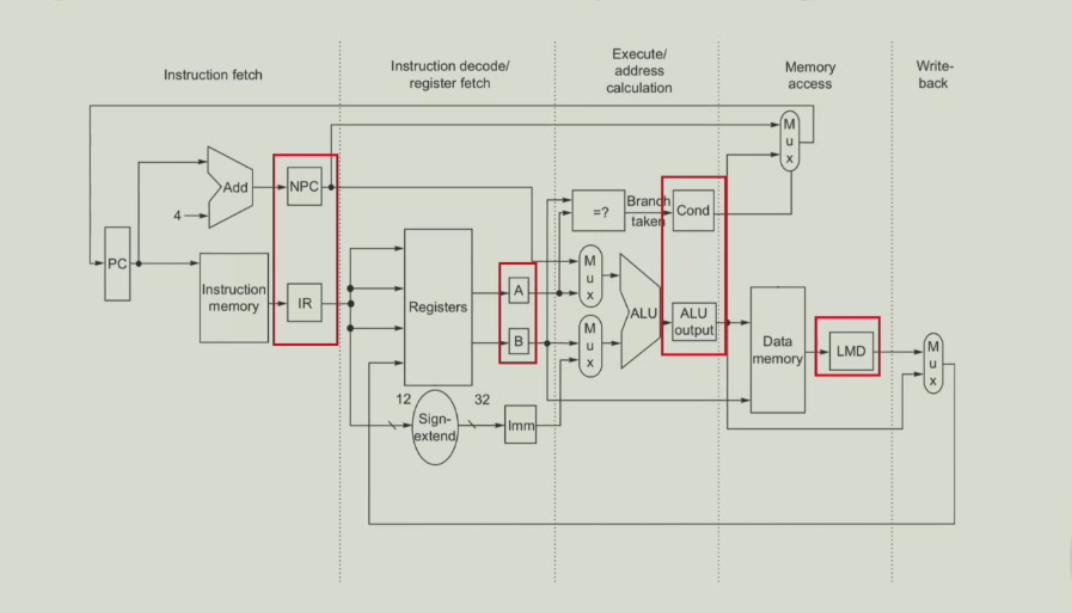

IF,ID,EX,MEM,WB IR:取出的指令
NPC：PC + 4（后续阶段使用）PC的分支跳转（提前）
A,B:寄存器操作数
=?:ALU_0SEL
ALUoutput:数据/地址
Cond：控制信号
LMD：取址结果

3.流水线的效率：绝对性能——时间、相对性能——对比单周期CPU
时钟周期：单周期（最长指令）、流水线（最长阶段）
n条指令的执行时间
量化指标：
(1)Throughput吞吐量:单位时间执行的指令条数

\(TP = \frac{n}{T} < TP_{max}\)

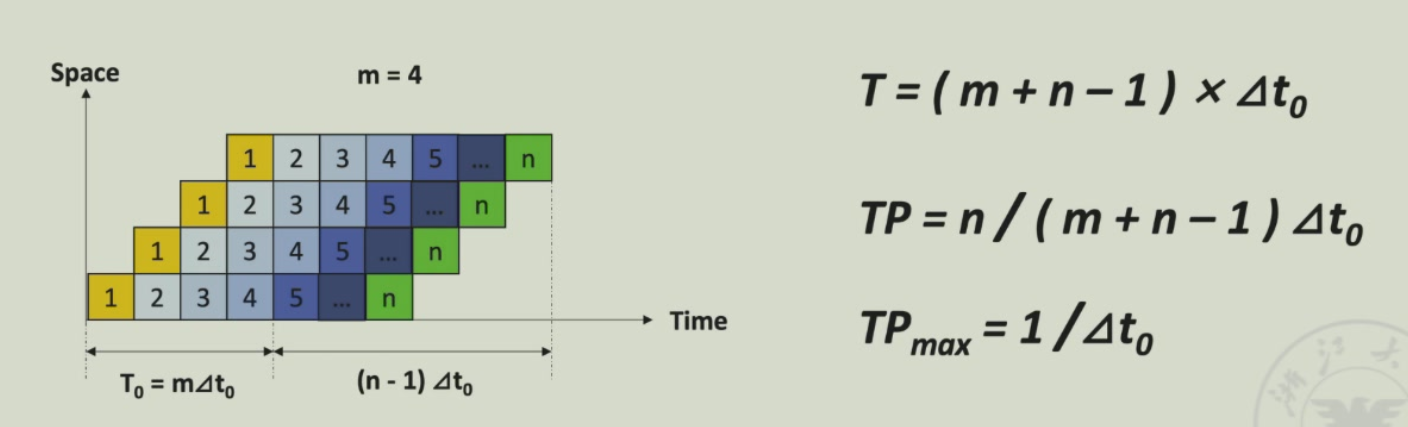

\(T = (m+n-1)*Δt_0\)

\(TP = \frac{n}{(m+n-1)*Δt_0}\)

\(TP_{max} = \frac{1}{Δt_0} = TP(n → ∞)\)

实际情况需要考虑瓶颈 e.g.
m = 4, s1,s3,s4:Δt, s2:3Δt

\(TP = \frac{n}{(3n+3)*Δt}\)

\(TP_{max} = \frac{1}{3Δt} = TP(n → ∞)\)

\(TP = \frac{n}{(m-1)Δt + nmax(Δt_1,Δt_2,...,Δt_m)}\)

提高吞吐量/解决瓶颈：

• subdivision:divide s2 into s2a,s2b,s2c
• repetition:s2:s2a,s2b,s2c
  e.g.译码，一次可在寄存器取两个操作数rs1,rs2

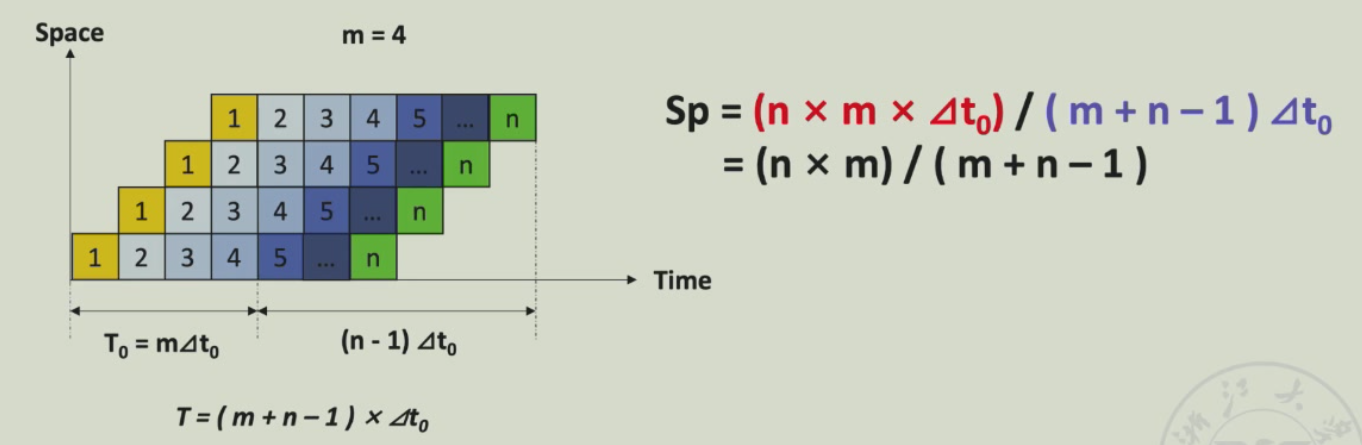

(2)Speedup加速比>1：

\(Sp = \frac{ExecutionTime_{non-pipelined}}{ExecutionTime_{pipelined}}\)

\(ExecutionTime_{pipelined} ≈ \frac{ExecutionTime_{non-pipelined}}{NumberOfStages}\)

\(Sp = \frac{n*m*Δt_0}{(m+n-1)*Δt_0} = \frac{n*m}{m+n-1} = m (n >> m)\)

与流水线的时钟周期长度无关，只与流水线的深度和条数有关
(3)效率η

\(η = \frac{Sp}{m} = 1 (n >> m)\)

理解:时空图中格子占时间*空间面积的比值
why pipelining:

• decrease CPU time
• improve TP
• improve effiency for resources

ideal speedup = number of pipeline stages
too many stages:

• lots of complications
• should take care of possible dependecies among in-flight instructions
• huge control logic

what affects the efficiency of multi-functional pipeline

• segment in idle time for certain function
• idle segments when establishing
• clock cycle depends on the bottleneck segment
• needs emptied when switch
• output of last operation is the input of the next
• register delay & overhead of clock skew(由布线长度和负载导致的顺序相邻寄存器的时钟信号到达时间之间的差异)

4.流水线实现的困难：
阶段执行时间不同造成时间浪费（尽量让各阶段时间长度相同）
冯诺依曼架构在内存访问时的冲突，MEM和IF阶段访问同一块memory
解决：哈佛架构/cache/instruction buffer（缓存）

流水线冒险 Week3 - 5

流水化设计：
回环：跳转地址（控制冲突）、写回（数据冲突）
加入阶段间寄存器共用基础组件

(1)结构冒险(Structural Hazard):a required resource(硬件) is busy

冯诺依曼架构下，a single memory，data access & instruction fetch在同一时钟周期同时访问内存
problem:two or more instructions compete for access to a single physical resource
solution1:stall(nop instruction(addi x0,x0,0))
solution2:add more hardware(can always solve structual hazard)

(2)数据冒险(Data Hazard):data dependency between instructions

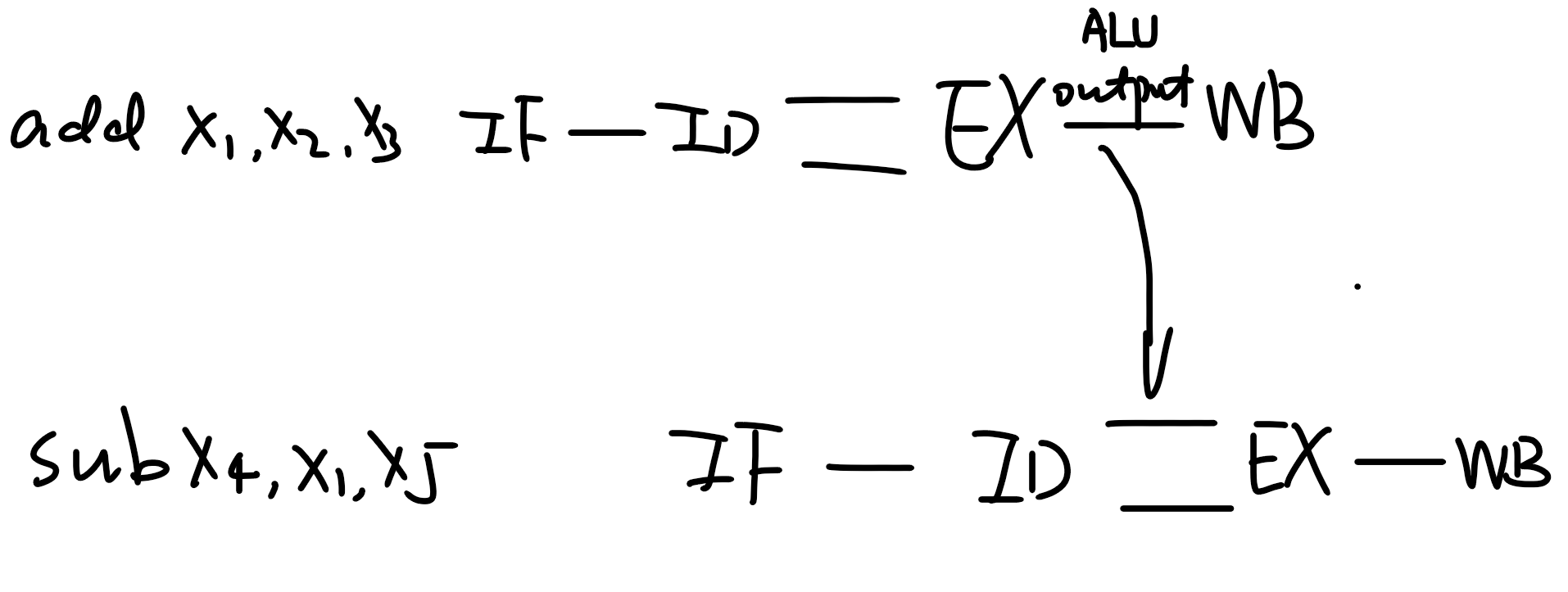

add x1,x2,x3 IF-ID-EX-WB(write x1)
sub x4,x1,x5    IF-ID(read x1)-EX-WB

problem:instruction depends on the result from the previous
solution1:stall(severely)
solution2:forwarding(旁路:ALU output->input of EX)
could not solve all the situation:
通过多路选择器引入<-多路选择器的控制信号<-冲突发生的条件
条件：
(1)前两条操作的目的操作数 = 后两条操作的源操作数

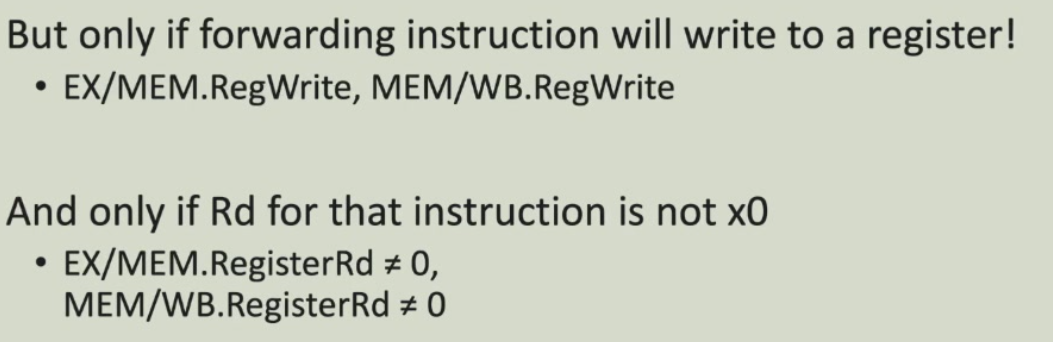

(2)EX/MEM.RegWrite == 1：即前一条指令写入了寄存器
(3)EX/MEM.Rd != 0：即前一条指令写入的不是 x0（如果是 x0 则不会发生任何变化）
硬件实现:增加Forwarding unit
input rs1,rs2,rd,EX_MEM_rd,MEM_WB_rd
output ForwardA,ForwardB to Mux_ALU
双重冒险double hazard

add [x1],x1,x2
add [x1],[x1],x3
add x1,[x1],x4

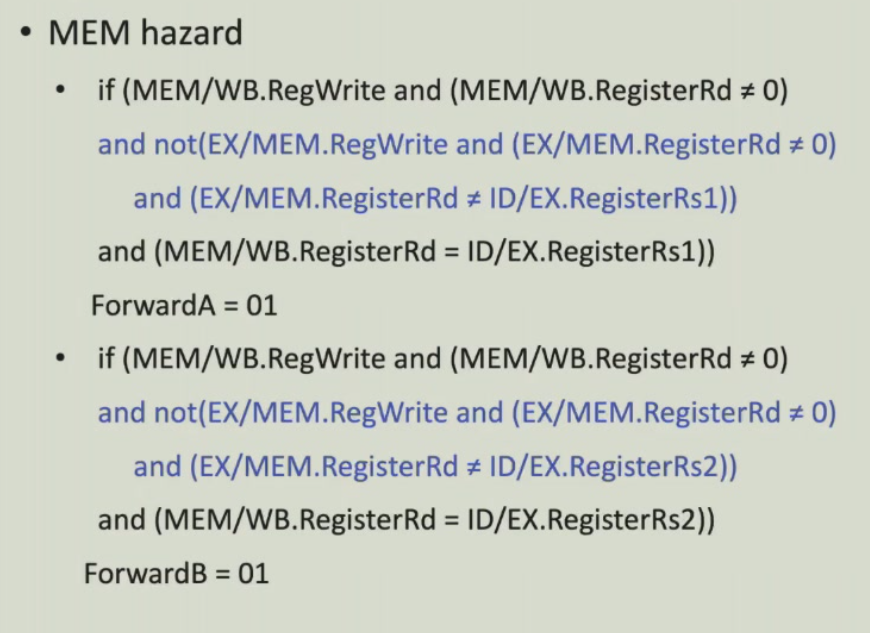

revise forwarding condition:
MEM hazard

• if(MEM/WB.RegWrite and (MEM/WB.Rd != 0))
  and not(EX hazard)
  and (MEM/WB.Rd == ID/EX.Rs1)
  ForwardA = 01

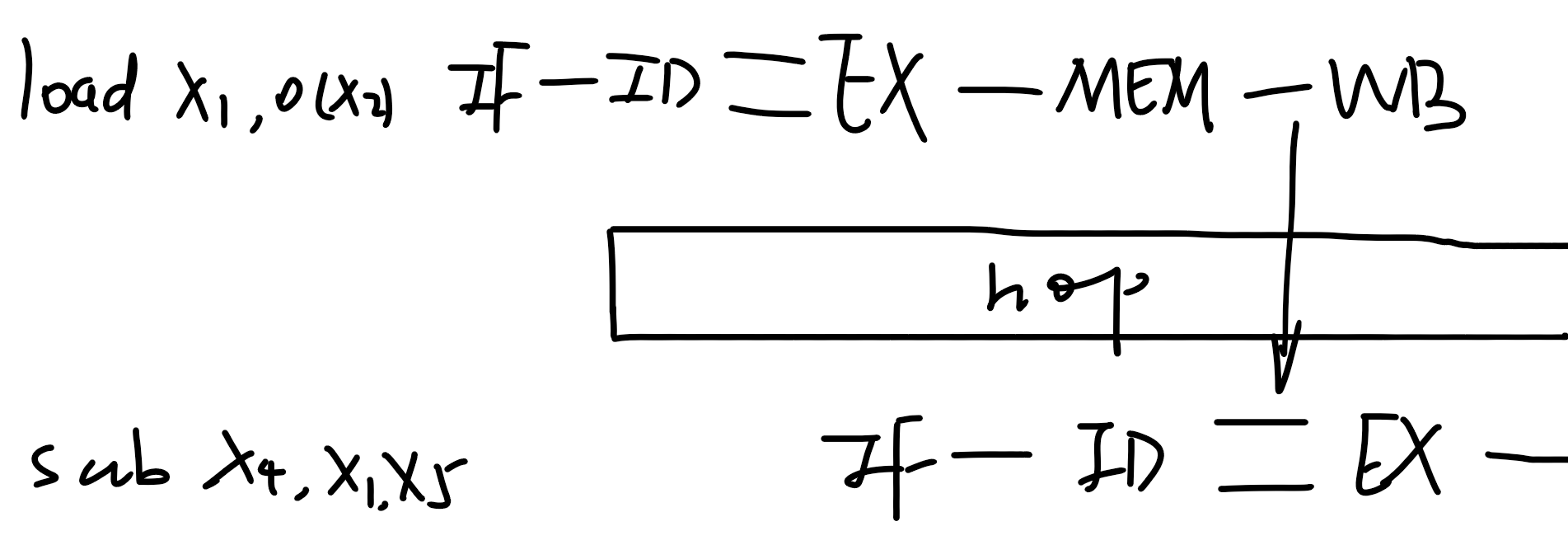

Load-Use

ld x2,20(x1)
and x4,x2,x5 //时序倒置 need one cycle to stall
or x8,x2,x6
add x9,x4,x2

探测：check when using instruction is decoded in ID
建议在ID阶段进行，因为在EX阶段进行会需要和Forwarding unit前后进行，降低极限频率，不能交换Forwarding和hazard detection，因为二者有依赖关系
Load-Use hazard when ID/EX.MemRead and ((ID/EX.Rd == IF/ID.Rs1) or (ID/EX.Rd) == (IF/ID.Rs2))
then stall and insert bubble
硬件实现:增加Hazard detection unit
force ID_EX_control.signal = 0
prevent the update of PC and IF_ID_register

solution3:reorder code

(3)控制冒险(Control Hazard):flow of execution depends on previous instruction 执行流，取哪条址由前一指令确定(b-type/j-type(地址还未计算))
solution1:将分支判断提前到 ID 阶段，再暂停

reduce stall

• compare registers & compute target
• add hardware in ID
  why ID：no data in IF
  产生了新的冲突


  add x1,x2,x3
  add x4,x5,x6
  beq stalled
  beq x1,x4,disp


  lw x1,addr
  beq stalled
  beq stalled
  beq x1,x0,disp


  can solve by using forwarding (& stall)
  branch still causes a stall
  现代CPU：10-15阶 stall penalty:5 time cycle
• compute the branch target address
• judge if the branch process
• target address adder
• register comparator

solution2:prediction
贪心，预测不发生，继续取址
发生时：强制置0（变为nop，惩罚）
改进：predicts that some conditional branches will be untaken
经验总结/动态调整（历史记录）：

• branch prediction buffer(history table)
• indexed by recent instruction address
• outcome(taken or not)

solution3:dalayed decision
delay slot
b-type指令后空出一个指令放入不影响分支的指令

非线性流水线调度

线性与非线性流水线：是否存在回环
Task:->S1->S2->S3->S4->S2->S3->S4->S3->EXIT
调度:determine when to introduce a new task to the pipelining,so that the tasks will not conflict with each other
非线性流水线的规范表示：Reservation table

	1	2	3	4	5	6	7
S1	1			1			1
S2		1			1
S3		1				1
S4			1

调度算法：
initial conflict vector -> update conflict vector -> state transition graph -> circular queue(回环) -> shortest average interval

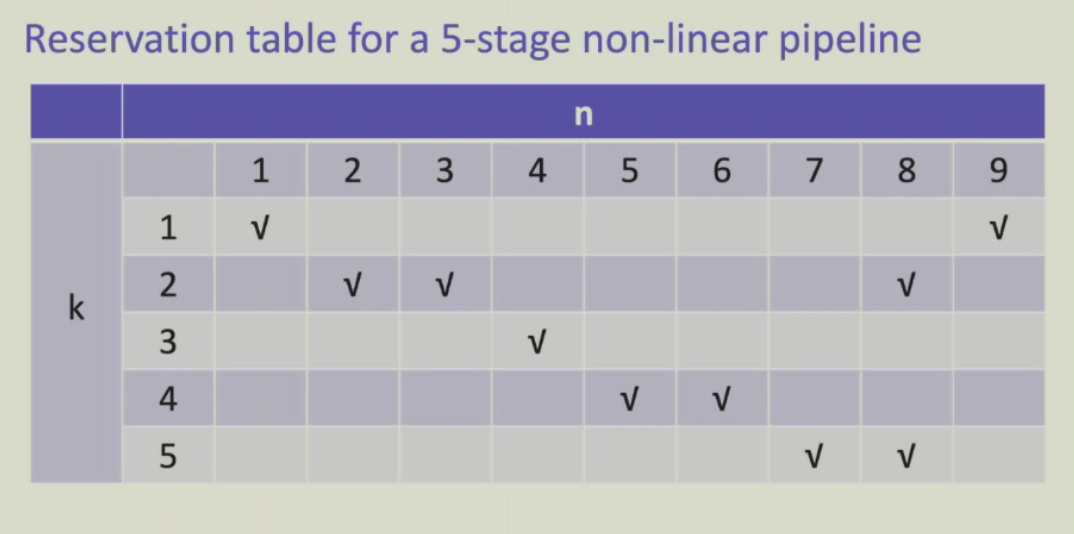

禁止集(prohibit sets)：如果经过m个时钟周期进入指令会产生冲突，则m∈禁止集F

	1	2	3	4	5	6	7	8	9
S1	1								1
S2		1	1					1
S3				1
S4					1	1
S5							1	1

由表可知禁止集F = {1,5,6,8}

初始冲突向量C₀ = (10110001)(由低到高的位对应禁止集中的数)

更新冲突向量 (C_N-1C_N-2...C_i...C₂C₁)

CCV = current conflict vector

Interval	Initial	2	2	7
CCV	10110001	10111101(00101100 | 10110001)	10111111(以下三个或)	10110001
1->	10110001	00101100(10110001 >> 2)	00001011	00000000
2->		10110001	00101100	00000000
3->			10110001	00000001
4->				10110001

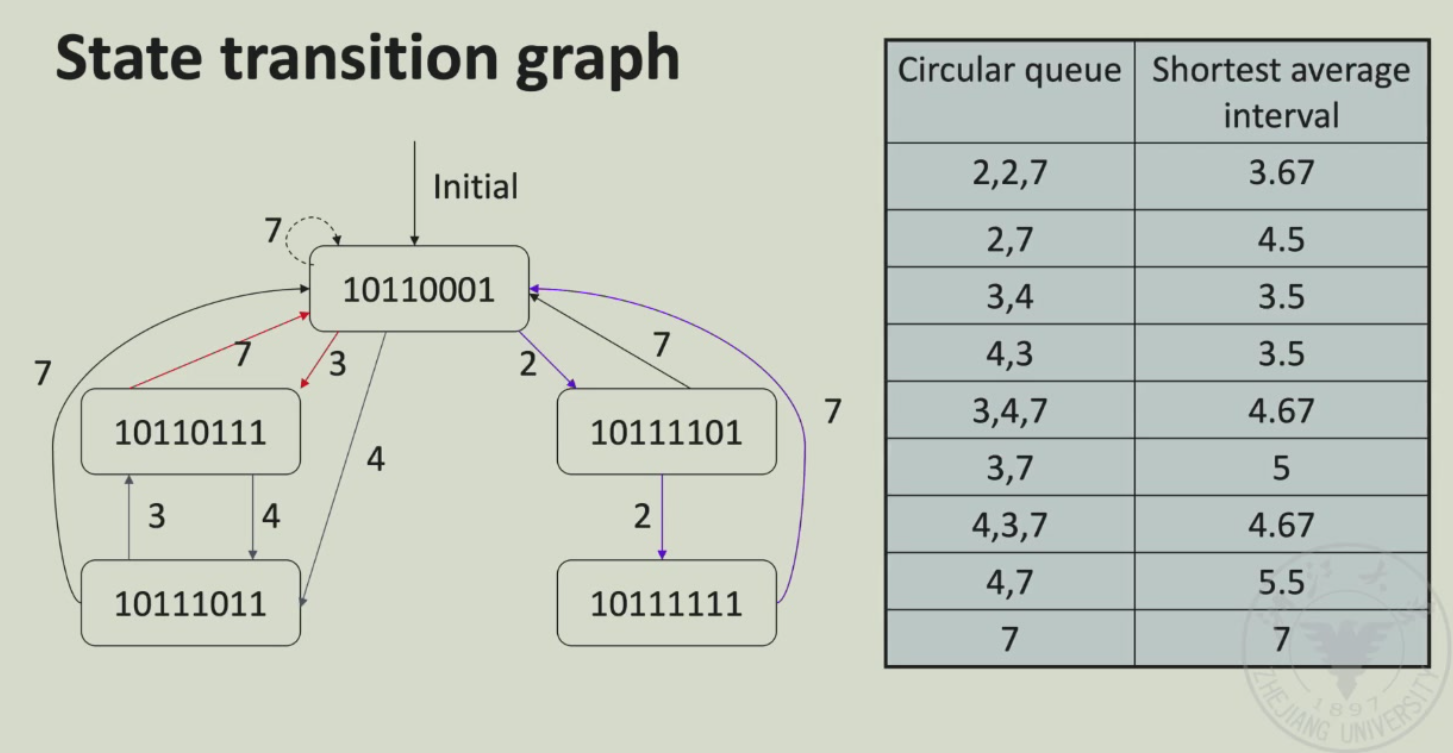

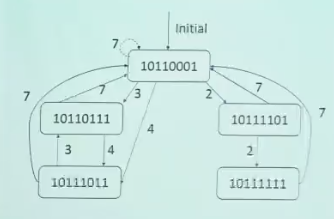

state transition graph

寻找回环（不一定回到初始状态，只要子图里有回环即可） 计算平均间隔：将circular queue相加除以指令个数

挑选平均间隔最短的即为最优调度方案

多发射 Multiple issue

同一个时钟周期内发射多条指令
Instruction-Level Parallelism(ILP)

• Deeper pipeline
  Less work per stage -> shorter clock cycle
• Multiple issue
  Replicate pipeline stages -> multiple pipelines
  start multiple instructions per clock cycle
  CPI < 1,so use instructions per cycle(IPC)
  E.g. 4GHz 4-way multiple-issue 16BIPS,peak CPI = 0.25,peak IPC = 4
• dependencies reduce this in practice

使用场景：操作系统下的多任务执行（例：网易云音乐 & 微信 无信息传输）

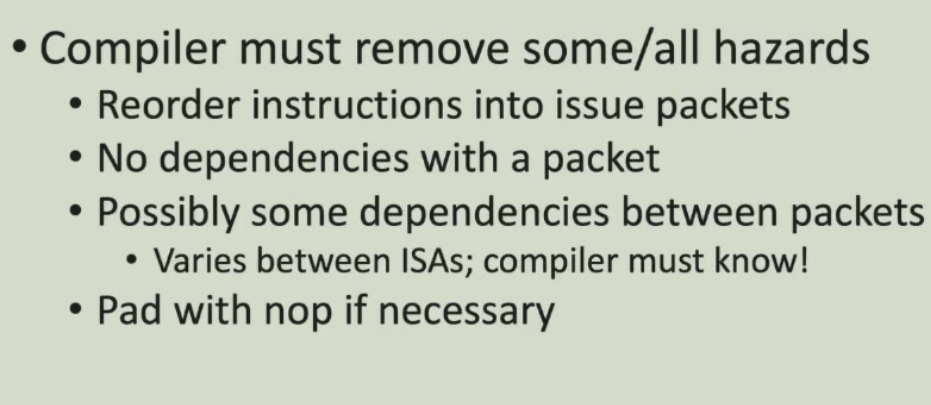

• static multiple issue
  compiler groups instructions to be issued together,packaging them into issue slots
  静态指令调度 compiler detects and avoid hazards
  e.g. the following instructions cannot be put into an issue slot


  add x1,x2,x3
  add x1,x1,x2
  add x5,x1,x2

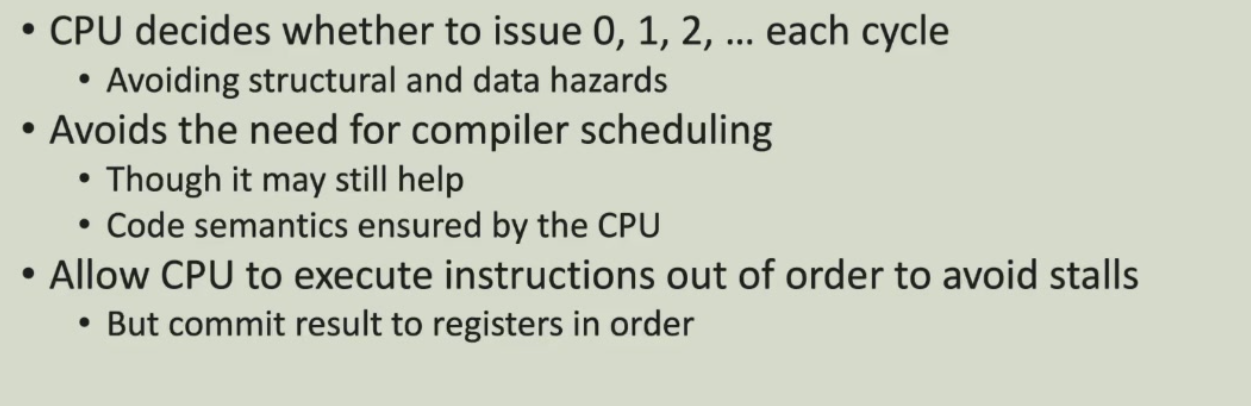

• dynamic multiple issue
  CPU examines instruction stream and chooses instructions to issue
  compiler can help by reordering (软硬协同)
  CPU resolves hazards by using advanced techniques at runtime(运行时调节)

"Guess":start operation A.S.A.P;check whether the guess is right
branch:roll back if path taken is different
load:roll back if location is updated(miss in cache)

speculation
- compiler
reorder
"fix-up" instruction to recover wrong guess
- hardware
buffer results until it determines they are actually needed
flush buffers on incorrect speculations

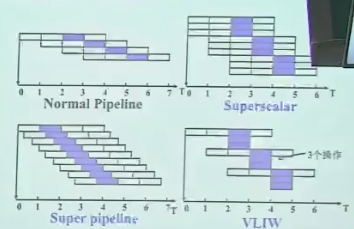

two types of multiple-issue processor
- superscalar(general computing)
the number of instructions issued is not fixed(1-8,with upper limit)
the processor is called n-issue if the upper limit is n
- VLIW(Very Long Instruction Word)(digital signal processing/multimedia)
the number of instructions issued is fixed(4-16),constituting(拼接) a long instruction or an instruction packet
scheduling can be only done statically

super-pipeline

• subdivide each pipeline stage
• time cycle doesn't change,an instruction is issued every 1/n time cycle


hazard detection in static scheduling

• hazard detection in outgoing package and select
• check conflicts during execution
  1 integer instruction(load store branch) + 1 floating-point operation instruction(fp)
• fetch 2 instructions from memory
• determine hazard
• send

hazard in dual-issue
EX data hazard

add x10,x0,x1
ld x2,0(x10)

forwarding -> split into 2 packets
load-use hazard
split into 2 not adjacent packets

e.g.

Loop:ld   x31,0(x20)
     add  x31,x31,x21
     sd   x31,0(x20)
     addi x20,x20,-8
     blt  x22,x20,Loop

	ALU/branch	Load/Store	cycle
Loop:	nop	ld	1
	addi x20,x20,-8	nop	2
	add x31,x31,x21	nop	3
	blt x22,x20,Loop	sd x31,8(x20)	4

IPC = 1.25(peak IPC = 2)

increase IPC,hazard mitigation:loop unrolling

• replicate loop body to expose more parallelism
• use different registers(register renaming)

limitation:

• Instruction-level parallelism inherent in the program
• difficulties in hardware implementation
• technical limitation

static -> dynamic
superscalar : transparent to the programmer(硬件兜底)
running time effect will be caused greatly by compiler's optimization
solution:

• execute instructions out of order but commit results to registers in order(buffer)

中断与OS基础

解决冲突：

• save PC
• supervision exception cause register(SCAUSE)
• jump

handler actions:

• read cause and transfer to relevant handler
• determine action required
• restartable
  take correct action
  use SEPC(used for saving PC) to return
• otherwise
  terminate
  report error

in pipeline:

• control hazard
• mispredicted branch

multiple exceptions:deal with the earliest instruction

trap(soft interrupt):软件产生，运行时错误/用户显式中断
OS is interrupt-driven

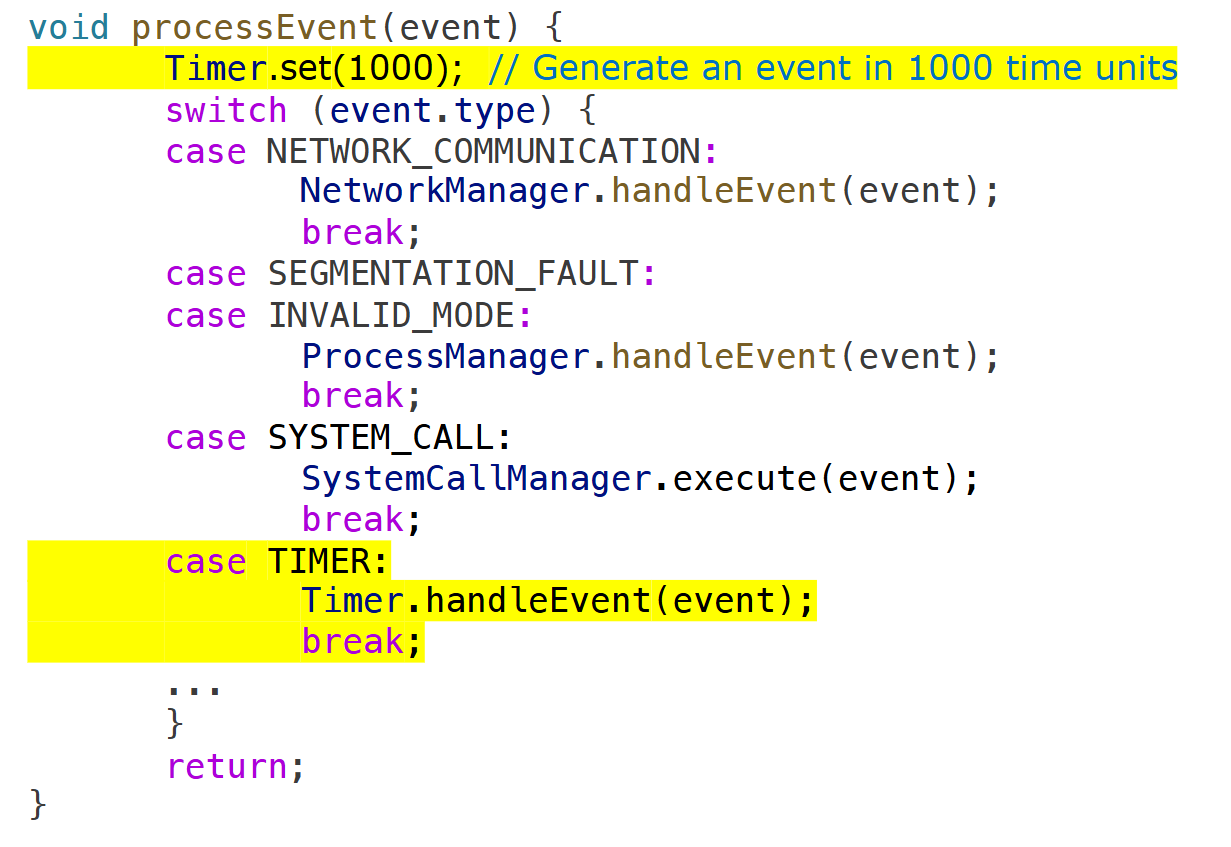

special interrupt:计时器中断 kernal介入管理

I/O处理:

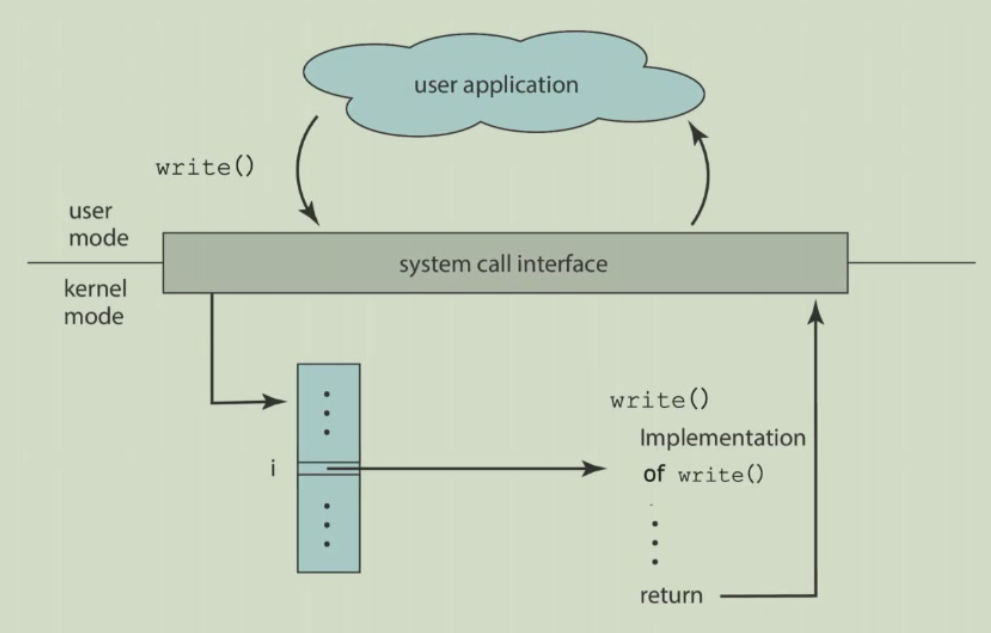

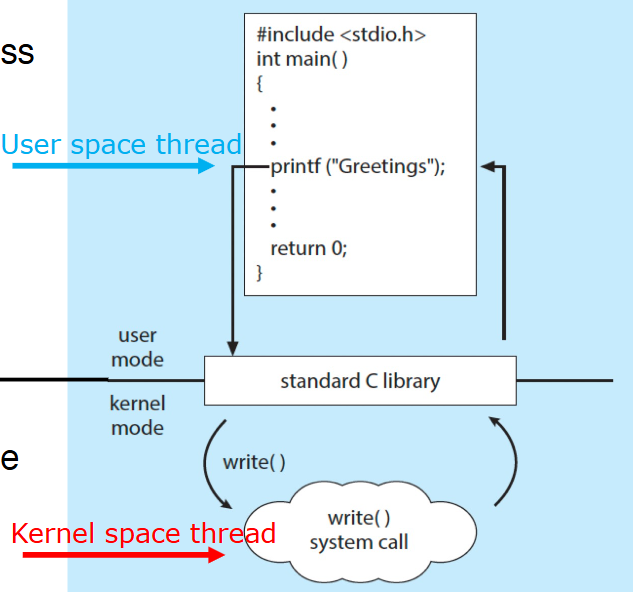

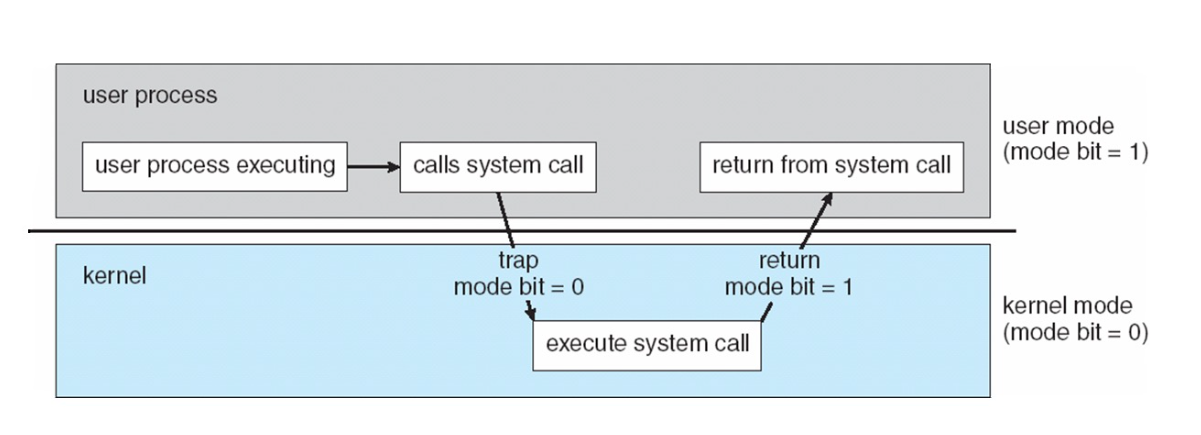

用户：系统调用system call
操作系统：MMIO(Memory Mapping I/O)
同步I/O：进行 I/O 的时候 block 掉当前请求 I/O 的程序，等待 I/O 结束（可能会调度运行另一个程序）(常用)
异步I/O：即使 I/O 没有完成，仍然继续运行原程序，当 I/O 完成时，执行用户态定义的 callback 回调函数(高效)

DMA(Direct Memory Access):搬运数据，完成后通过中断告诉CPU，让CPU从无意义工作中解放，xPU(GPU MPU TPU)访问内存都算DMA
UMA：统一内存架构

两模式操作：

• user mode
• kernel mode

system call

• 通过trap转到内核态
• 在kernel执行指定操作
• 返回用户态

OS Week7 - 15

Introduction Week7

set up memory
Moore's law：ineffective due to heat emission
SMP system:symmetric multi processors
[Definition]resource abstractor and resource allocator
BIG for drivers
LibOS:只负责resource allocator

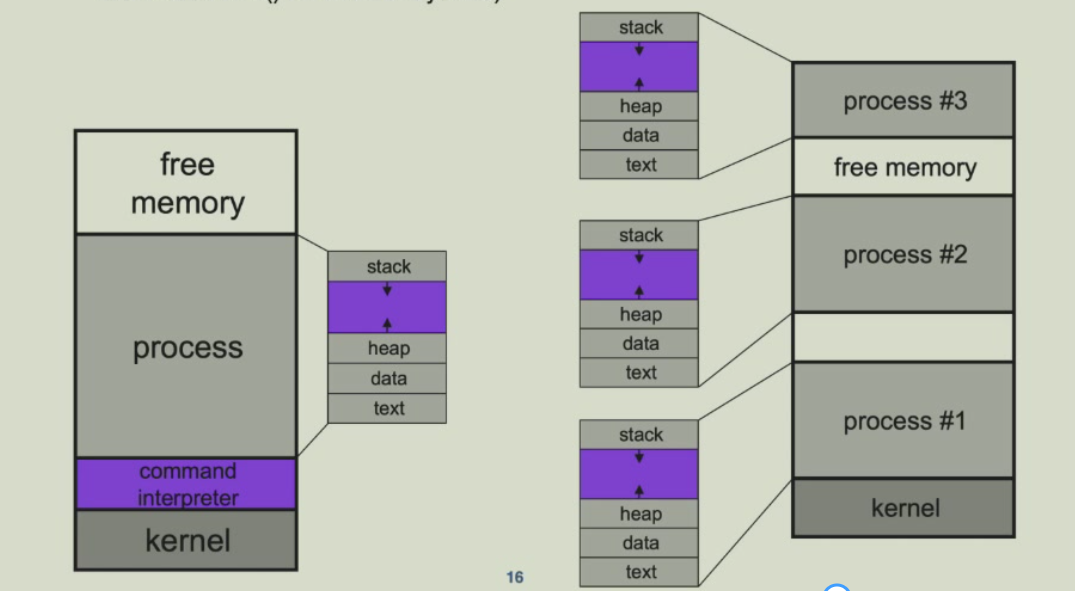

Multi-programming:allow multiple jobs to reside in memory simultaneously
Time-sharing:Multi-programming with rapid context-switching
f_CPU=400f_memory=400000f_disk
The kernel is NOT a running programme,but executed when some event occurs/requested
kernel size:some memory size spent (10M)

• lean nothing-more
• mean single-minded

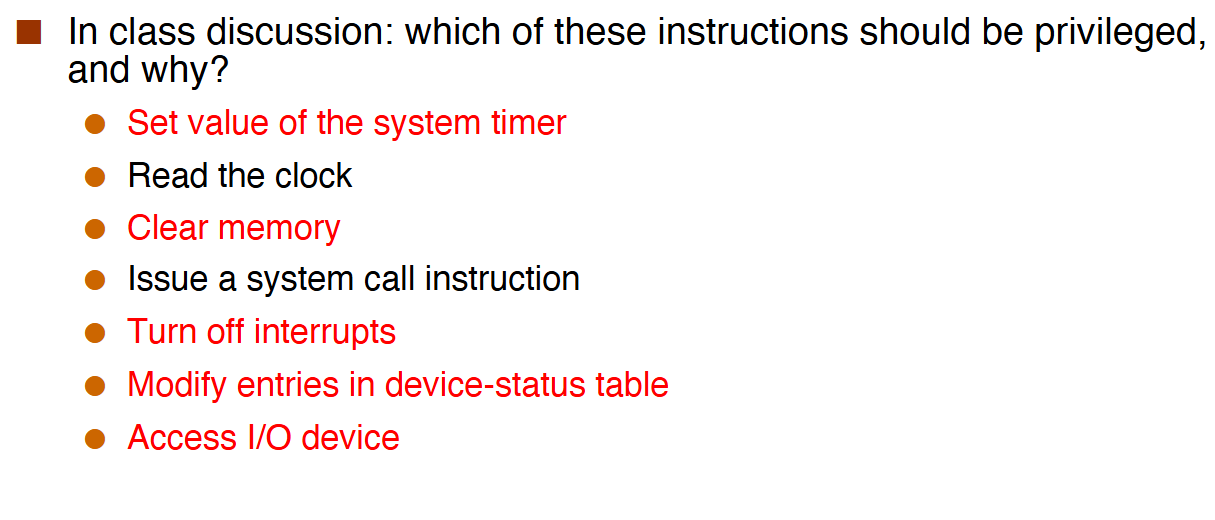

hardware -> protected inst -> OS
non-hardware -> unprotected inst -> OS/app
OS -> kernel mode
app -> user mode
determine inst when decoding,raise trap is privileged inst and mode == user
start in kernel mode
bootstrap program (bootloader)stored in Read Only Memory(ROM)
RISC-V modes

• 00 user/app U
• 01 supervisor S
• 10 reserved(hipervisor)
• 11 machine M

x86 modes:ring0,ring3(ring1,ring2),hipervisor,...

Event:an "unusual" change in control flow
stop execution -> change mode -> change context
a handler for each event type:
interrupts(hardware) & exceptions(traps)(software) "processEvent()"

system call
[Definition]a special kind of trap when a user program need to do something privileged
svc(supervisor call) hvc(hypervisor call) smc(secure monitor call)

timers
The timer interrupts the computer regularly

OS services

• process management
• memory management
• storage management
• I/O management
• protection and security

OS Structures Week8 - 9

OS features:
helpful for users

• program execution
• I/O operation
• file systems
• communication
• error detection

operation and protection

• resource allocation
• accounting
• protection and security

interface
- GUI
- command line interface(CLI)
- Touchscreen

system call
Application programming interface(API)
syscall -> kernel space

1) kernel_entry:save register data
2) write
3) ret to user

syscall table(array):index = syscall No.
System-call interface
printf is a privileged instruction(link to device) => syscall

cp a b
open and read
open and write
0 -> stdin
1 -> stdout
2 -> stderr

183 for small file
for large file more reads and writes since single read can only reach 130KB
种类一样，数量变多
parameter passing:register(like C)

syscall type

• process control(分配内存资源)
• file management
• device management
• information maintenance
• communications

system service

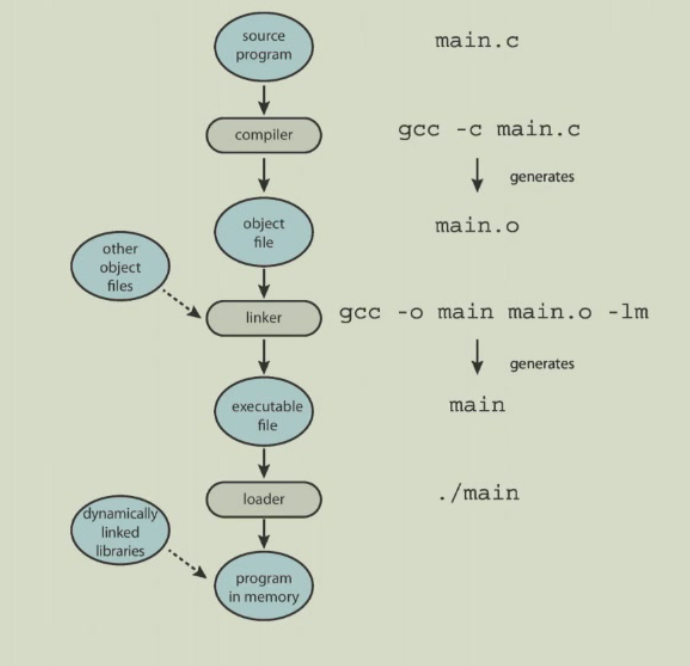

linkers and loaders

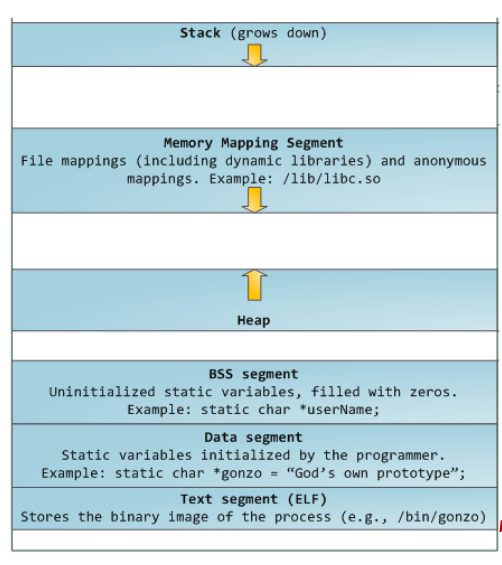

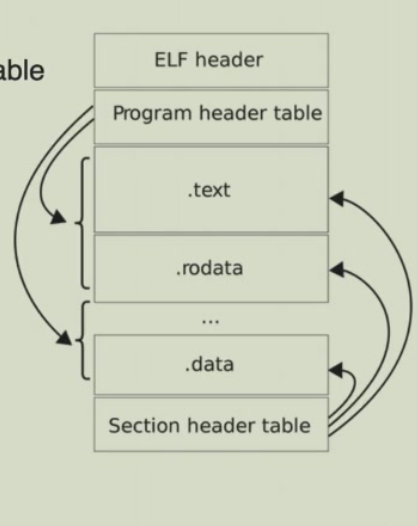

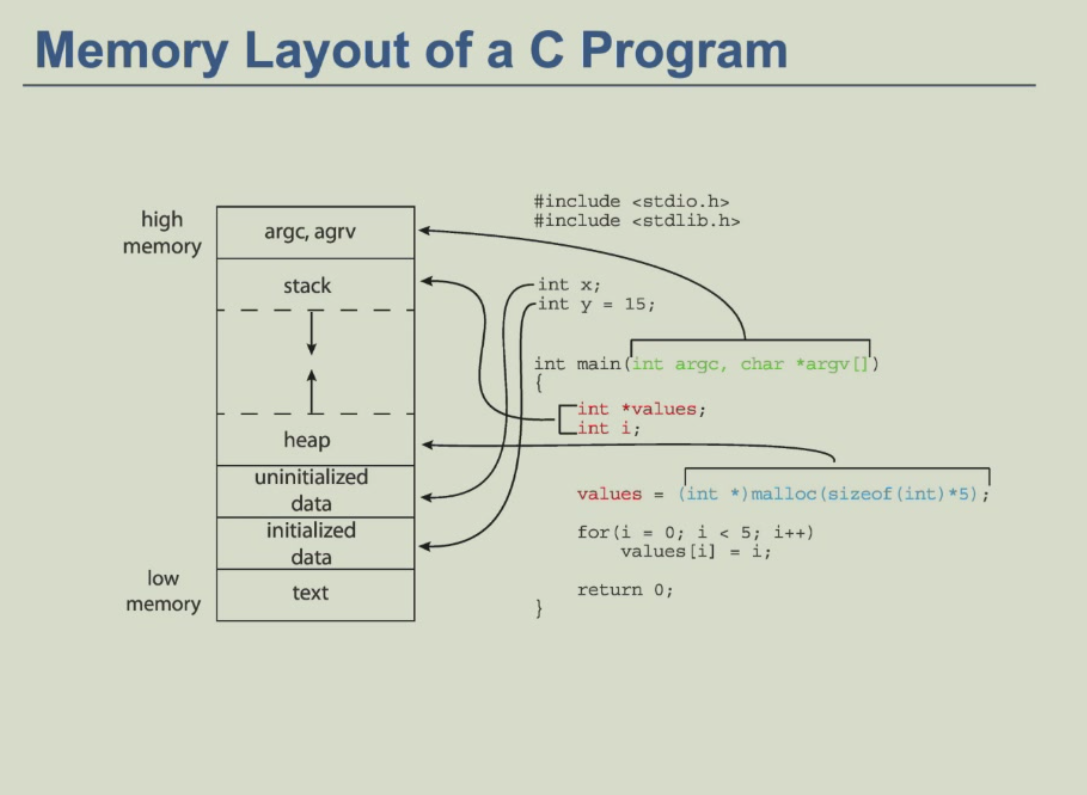

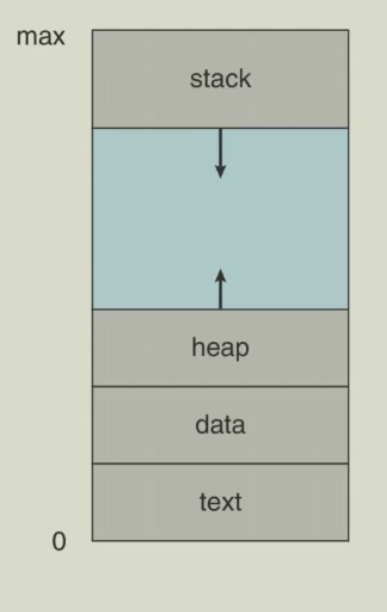

static variable -> .data(int a=5;)初始化
static const -> .rodata(read only)
int b; -> .bss未初始化 filled with 0
.text executable

static linking

• big file(x100 of dynamic linking)
• independent of the environment(less syscalls)
• no .interp section(loader-path)
• no memory mapping segment(dynamic libraries e.g./libc)

dynamic linking

• small file
• need loader resolve library calls
• can't execute without proper loader

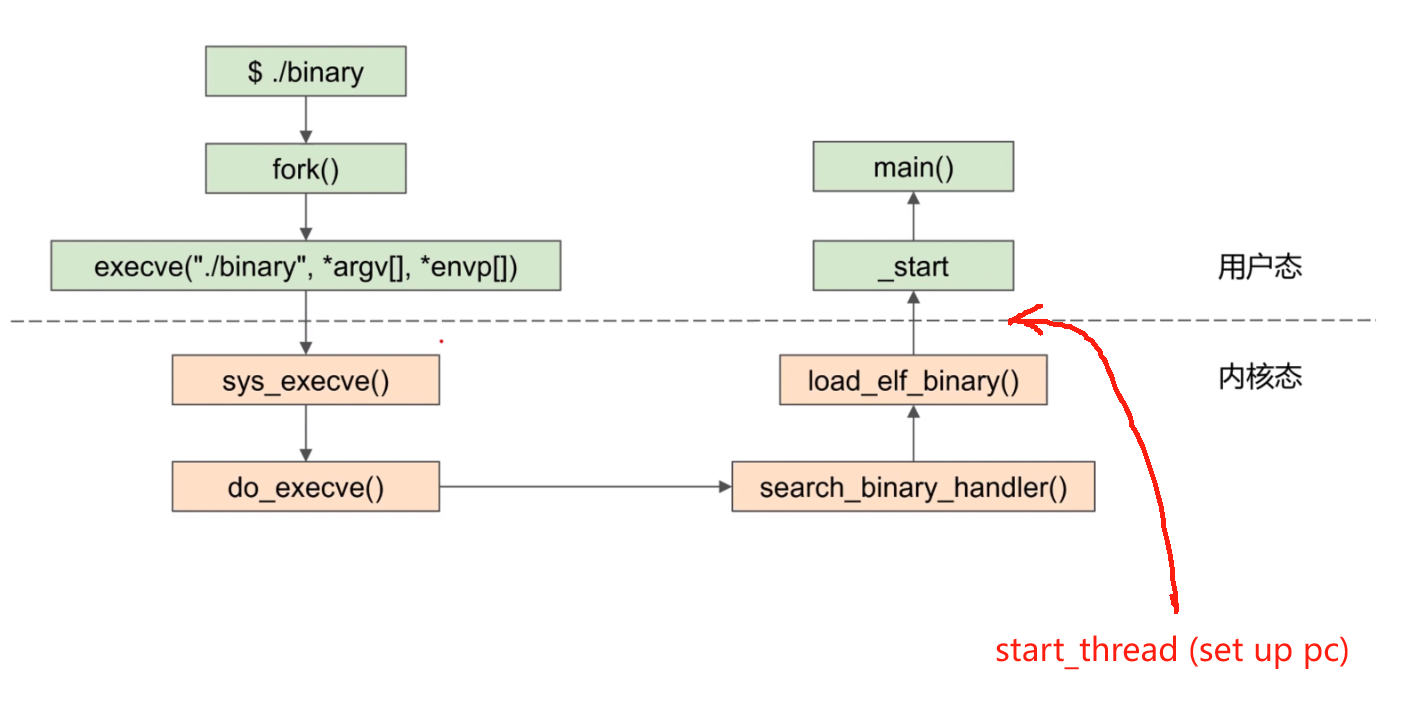

Who setups ELF file mapping?
Kernel
exec syscall
load_elf_binary

Who setups stack and heap?
Kernel
exec syscall

Who setups libraries?
Loader
ld-xxx

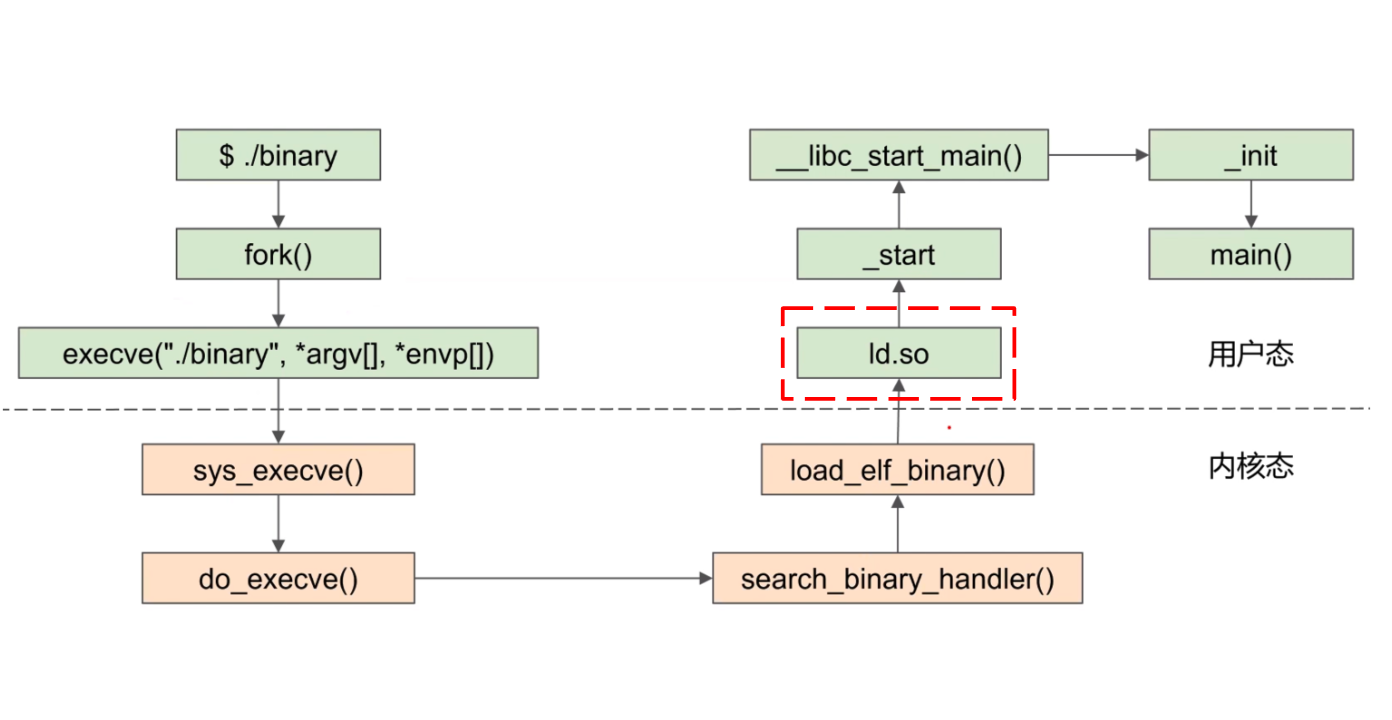

after ./a.out
entry point address->_start(static) loader(dynamic)
call<_libc_start_main>
statically-linked elf

DYN:loader -> interp_elf_ex -> e_entry
STA:a.out_elf -> e_entry

dynamically-linked elf

Policy:What will be done?
Mechanism:How to do it?
Separation of policy from mechanism

DOS:disk OS
LKM:loadable kernel module

Layered approach

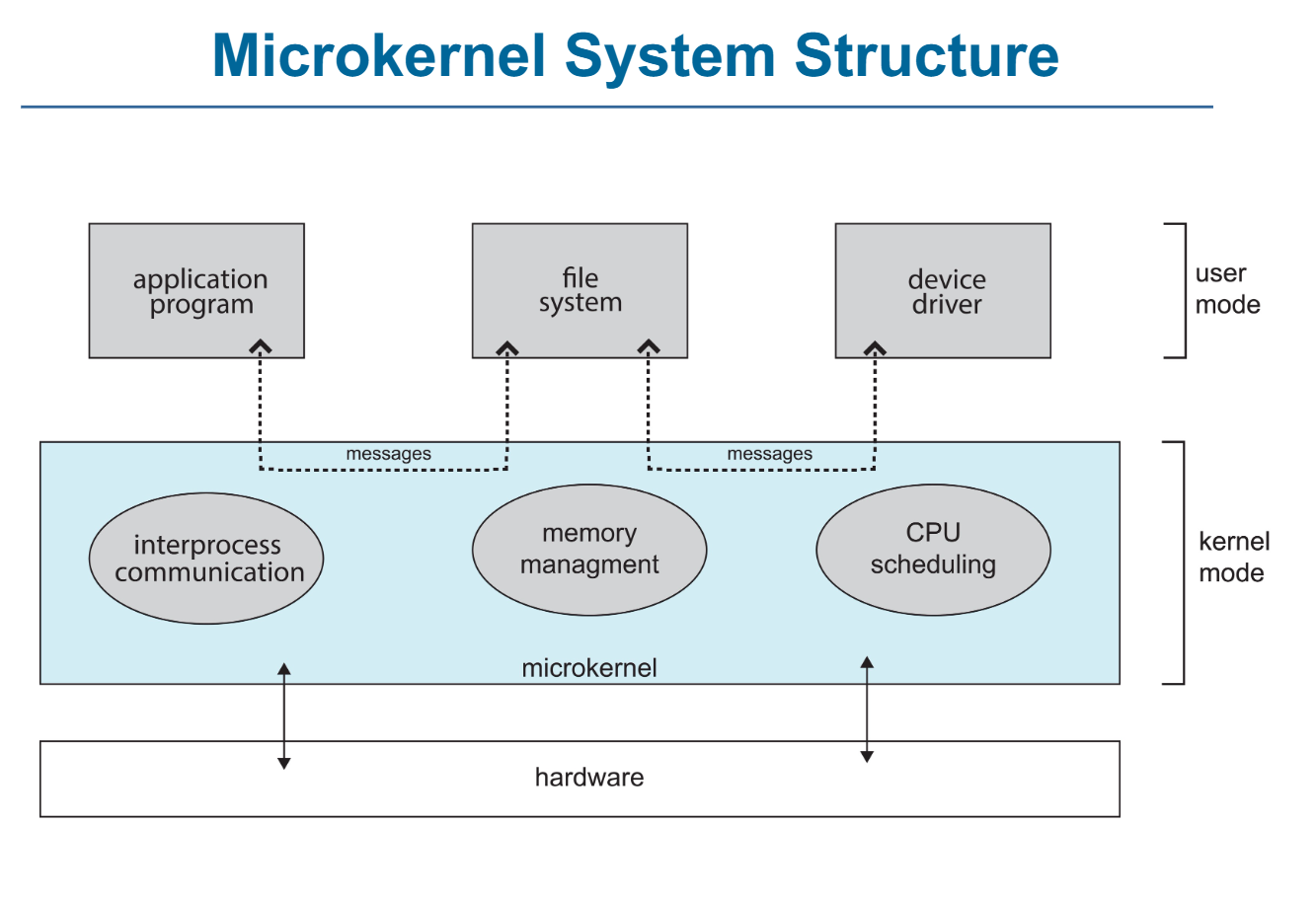

Microkernels

• benefits:
  easier to extend
  easier to port OS to new structure
  more reliable(less code running in kernel)
  more secure
• detriments:
  performance overhead of user space to kernel space communication

Hybrid systems 混合系统

read hello-lkm

Processes Week10 - 11

[Definition]a unit of resource allocation and protection Process = code(text) + data section + program counter + registers + stack + heap
a unit of resource allocation and protection

Single- and Multi-Tasking

Process Control Block(PCB)数组

task_struct{

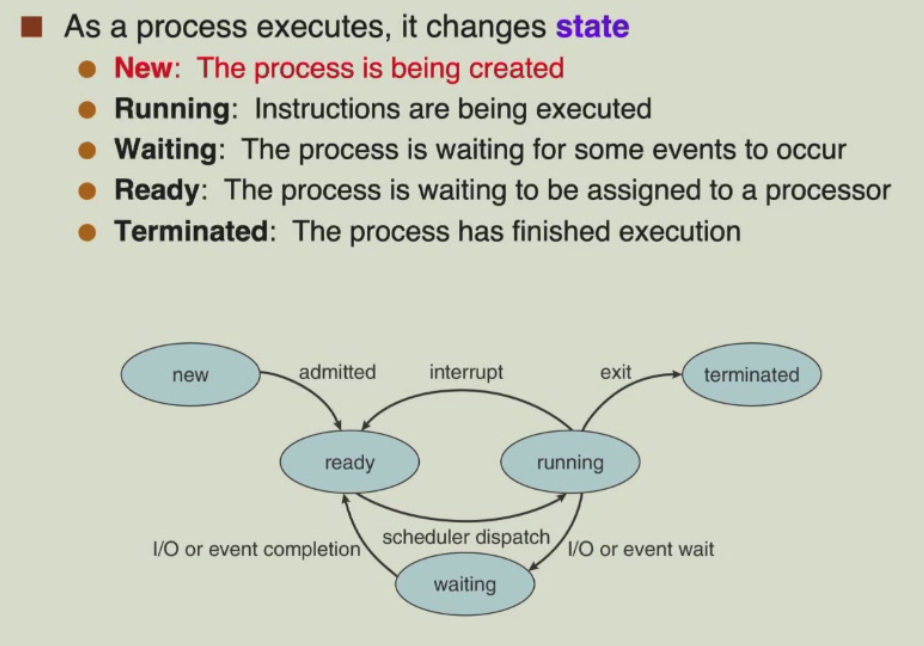

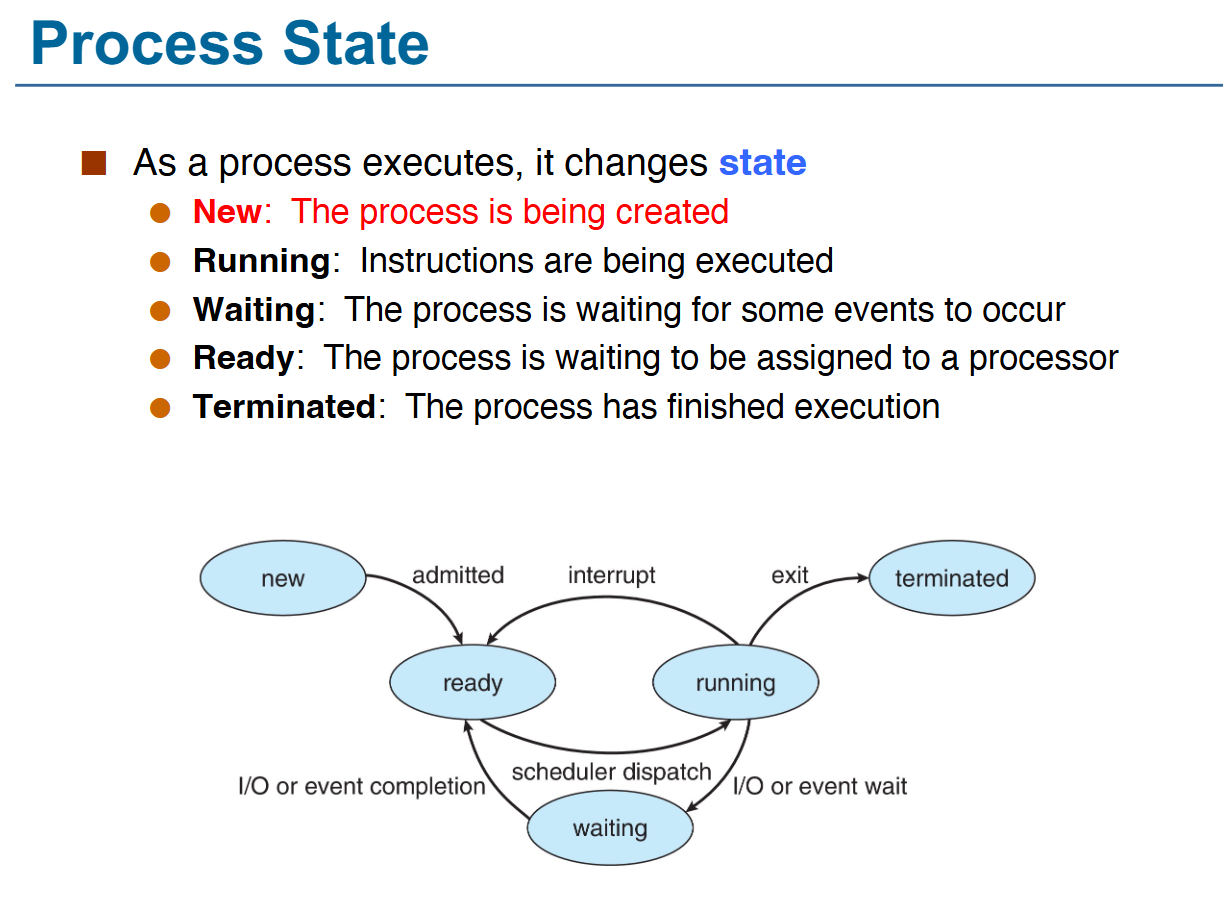

Process state(new running waiting ready terminated)
Process number(PID)
Process counter
registers
memory limits
list of open files
...
}

填空

create -> pid = 0:swapper/idle
fork -> pid = 1:systemd -> all other processes
The child can be either a clone of its parent or a new one

new

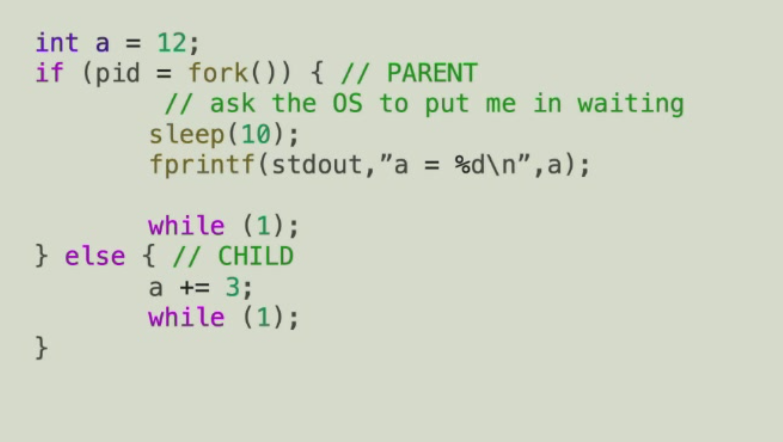

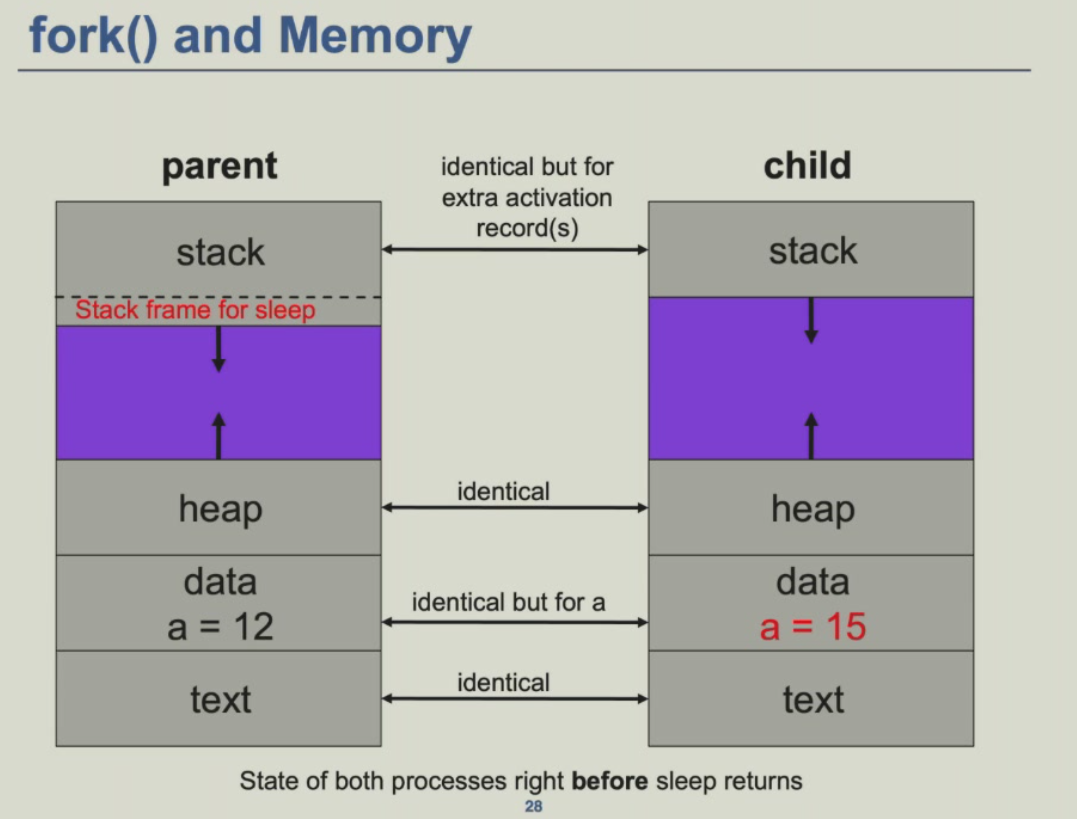

fork()
child is a copy of the parent but a different pid and its resource utilization set to 0
returns the child's pid to the parent and 0 to the child
e.g.

pid1 = fork();//1 -> 2
printf("hello\n");//2 hello
pid2 = fork();//2 -> 4
printf("hello\n");//4 hello
//total 6 hello

int main{
  fork();//2
  if(fork()){//parent 4
    fork();//6
  }
  fork();//12
  //no thread
}

数数量

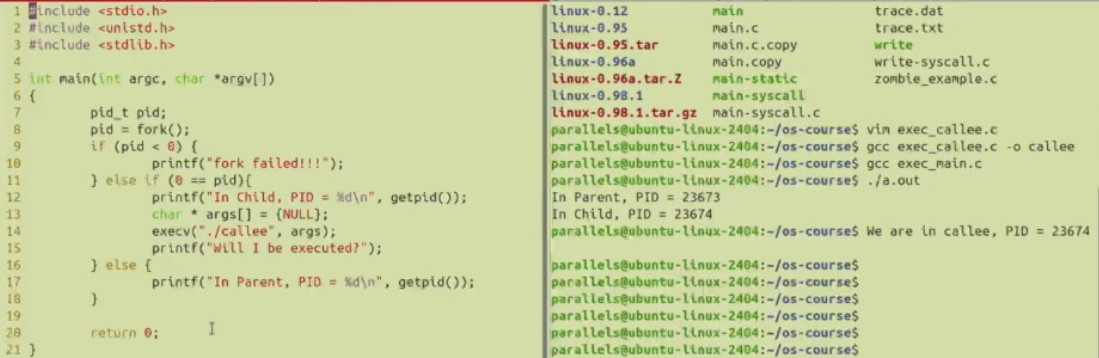

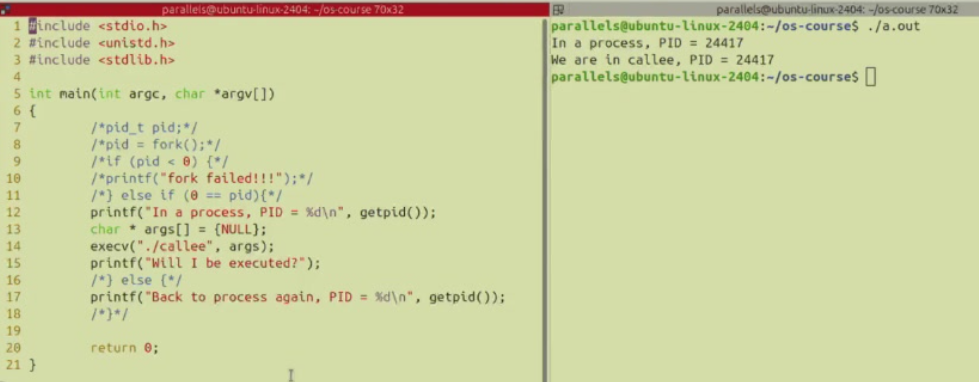

execve()(execute argv envp)
after a fork() replace the memory space with a new program
will not return unless an error occur

no_fork

ASLR:地址随机化
exec会抹去当前进程的内容（无论是子进程还是父进程）

terminate

exit()
SIGINT can be handled
signal(SIGINT,my_handler)
SIGKILL & SIGSTOP:cannot be handled for safety
zombie:不占CPU，但仍使用内存，PCB cannot be deallocated except for the help of its parent
a zombie lingers on until:

• its parent calls wait()
• its parent dies
• a handler to SIGCHLD

orphan：adopted by systemd(pid = 1/1763)
no zombie orphan exists

ready running waiting

Ready queue and wait queues(list)
a queue for every waiting object

struct list_head{
  struct list_head *next,*prev;
}
unsigned long tg_offset = offsetof(struct(task_struct),thread_node);
curr_thread = (struct task_struct *)(((unsigned long)curr_thread -> thread_node.next) - tg_offset);

context:registers represented in the PCB
context switch:state saving

• time is overhead;the system does no useful work while switching
  the more complex the OS and the PCB is, the longer the context switch
• time-dependent on hardware support

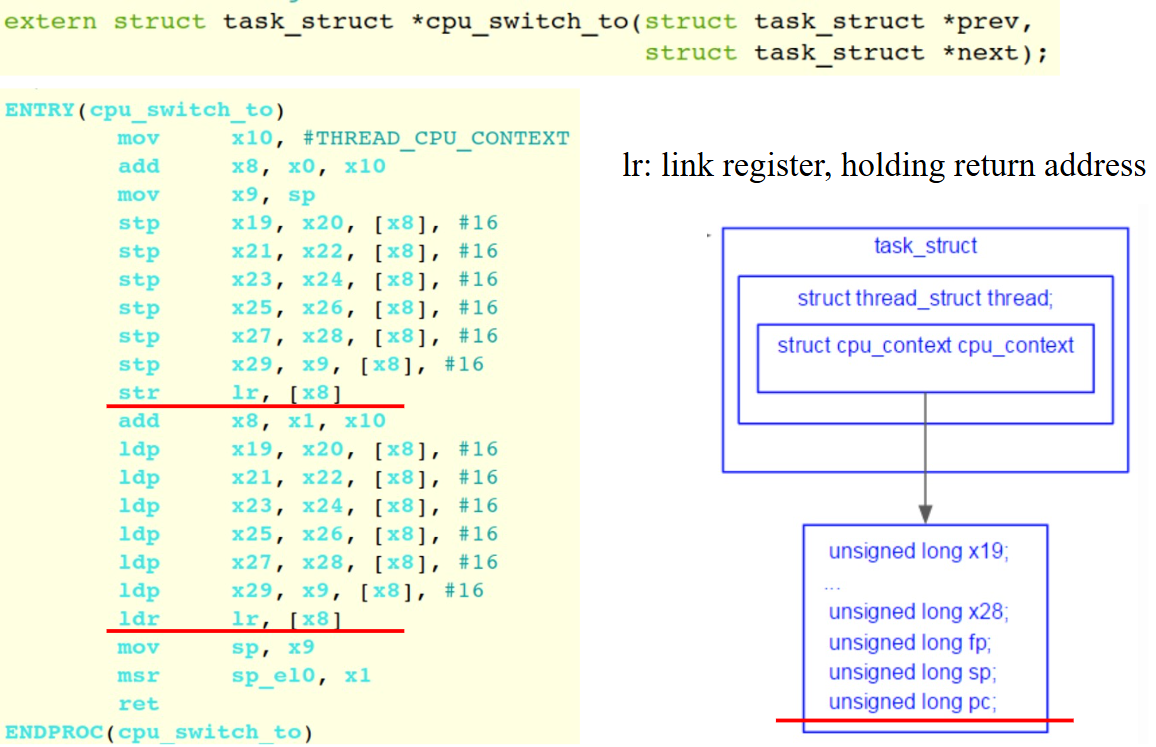

stp = store pair
x29 = fp
x9 = sp
x30 = lr = ra (pc = lr after ret)
#16 = x8 + 16
x0 = switch_caller_pcb_pointer
x1 = switch_callee_pcb_pointer
add x8,x0,x10(offset)
x8 = cpu_context
pc switch

str lr,[x8]
add x8,x1,x10
ldr lr,[x8]
ret

stack switch

mov x9,sp
...
mov sp,x9

code switch

str lr,[x8] ldr lr,[x8]中的lr分别是什么
lr -> pc0
pc1 -> lr

str lr,[x8]中的lr什么时候再被使用

P1_f(){
  cpu_switch_to(current,P0)
}

C code is not permitted because of overhead or optimization(lean & mean)

msr sp_e10,x1for safety(thread_info -> cred -> uid(root:0,user:>1000))(x1:task_struct)

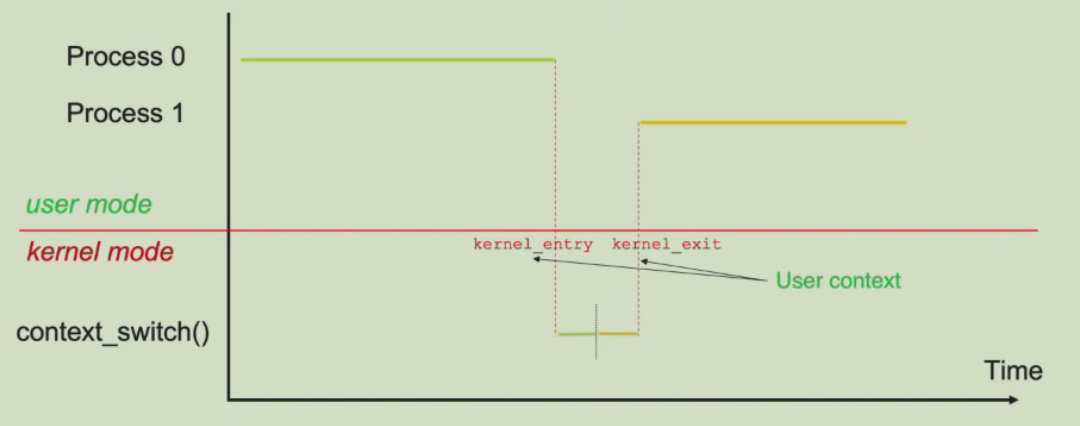

• process0 -> kernel
• context_switch
• kernel -> process1

When and where are the kernel context been saved?

• when:cpu_switch_to
• where:cpu_context in PCB

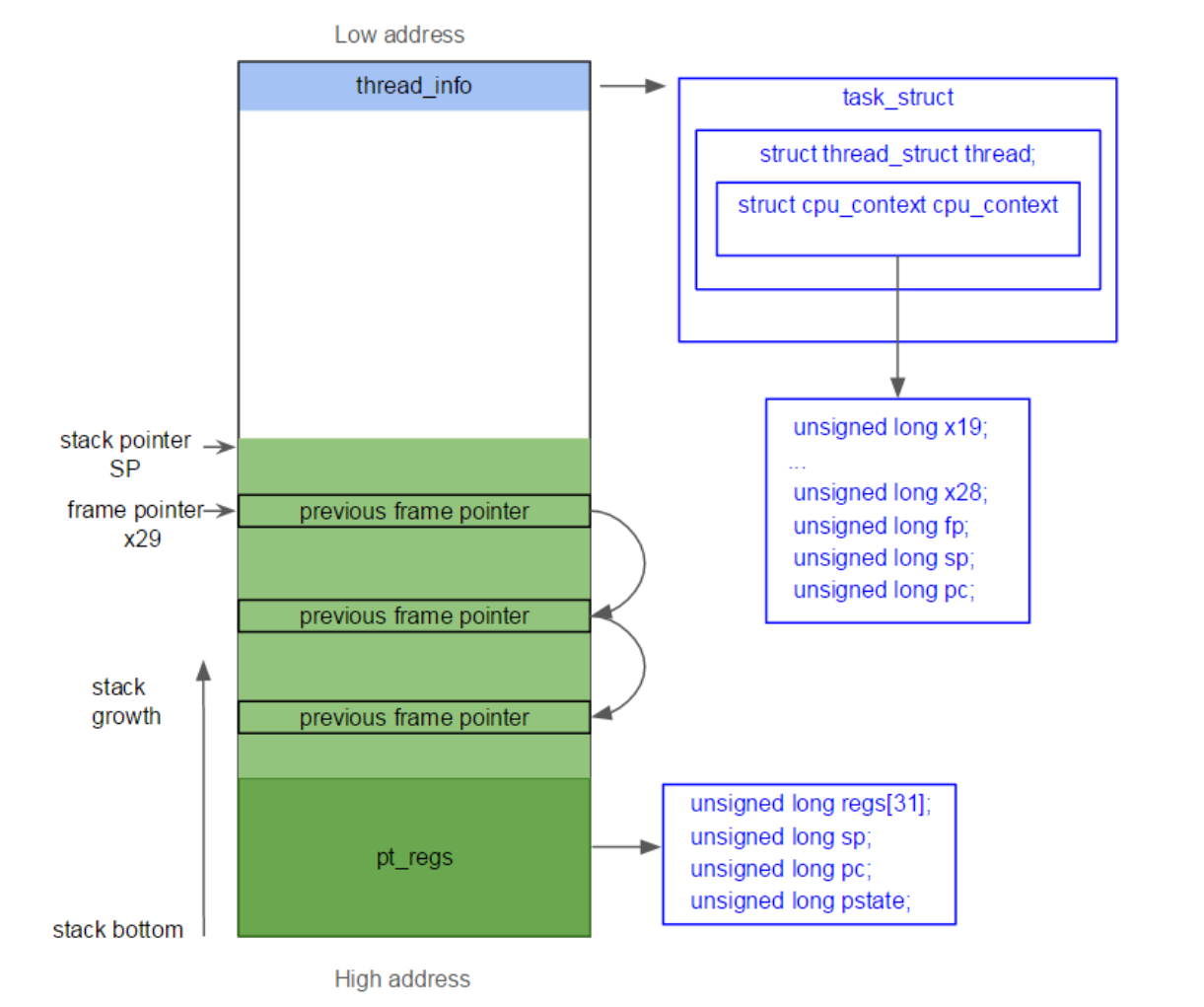

When and where are the user context been saved?(before (kernel)context switch)
context switch in kernel mode

• when:kernel_entry
• pt(process trees)_regs in per_thread kernel stack

kernel_space_context in PCB
user_space_context in pt_regs

user process -> call system call(kernel_entry)-> execute system call(kernel_exit)-> return

Why fork() can return two values?
x0 store return_value in arm64

two x0 after clone

When does child process start to run and from where?
When forked, child is READY -> context switch to RUN
After context switch, run from ret_to_fork
ret_from_fork -> ret_to_user -> kernel_exit who restores the pt_regs

Scheduling Week11 - 12

[Definition] The decisions made by the OS to figure out which ready processes/threads should run and for how long

The policy is the scheduling strategy
The mechanism is the dispatcher

CPU-I/O burst cycle

• I/O bound
• CPU bound

non-preemptive scheduling:a process holds the CPU until it is willing to give it up
preemptive scheduling:a process can be preempted(抢占) before end of execution

scheduling decision points:

1. RUNNING - WAITING
2. RUNNING - READY
3. WAITING - READY
4. RUNNING - TERMINATED
5. NEW - READY
6. READY - WAITING

non-preemptive:1,3,4,5
preemptive:1,2,3,4,5

scheduling queue:

• Ready Queue:processes in ready state
• Device Queue:processes waiting for particular device

dispatch latency:time it takes for the dispatcher to stop one process and start another to run

criteria:

• CPU utilization
• throughput
• turnaround time
• waiting time
• response time

scheduling algorithm

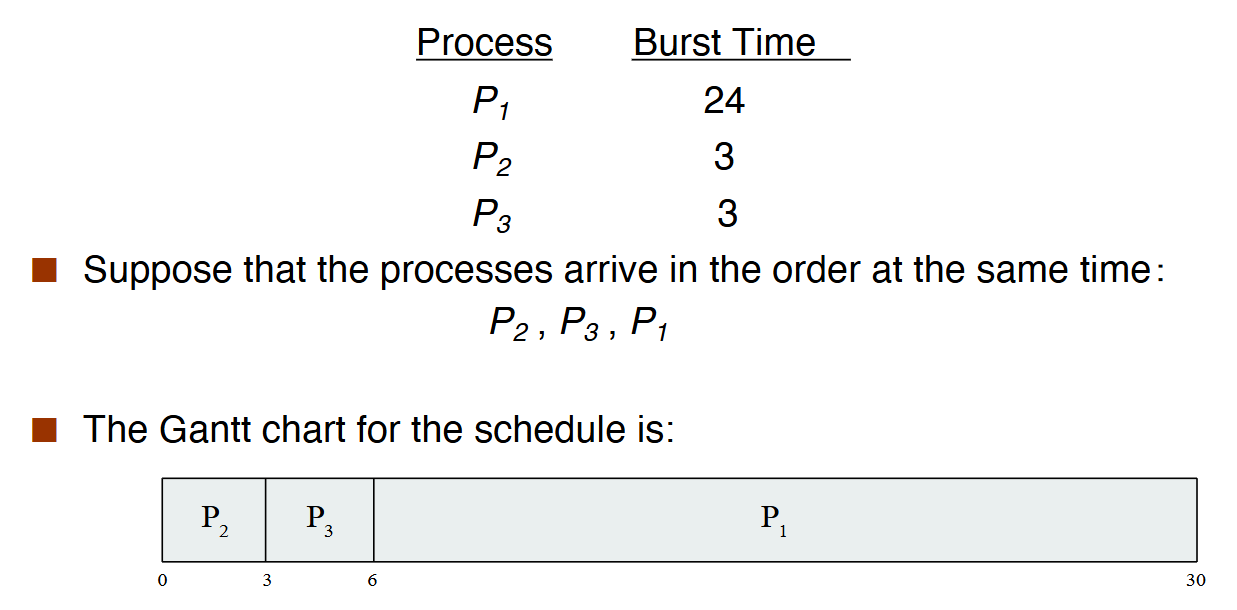

First-Come,First-Served(FCFS)

arrival time = 0.0

Waiting time = start time - arrival time
P1 = 6,P2 = 0,P3 = 3
average waiting time = (6 + 0 + 3)/3 = 3

Turnaround time = finish time - arrival time
P1 = 30,P2 = 3,P3 = 6
average turnaround time = (30 + 3 + 6)/3 = 13

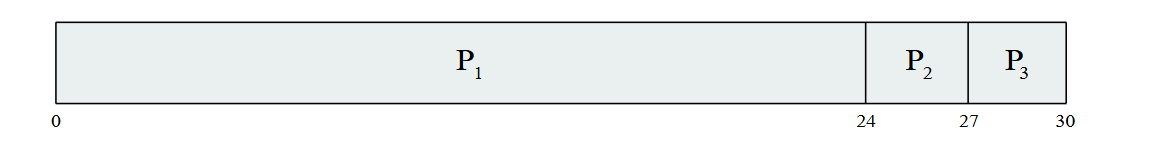

Suppose the process arrive in the order:P1,P2,P3

average waiting time = (0 + 24 + 27)/3 = 17
average turnaround time = (24 + 27 + 30) = 27

Convoy Effect:short process behind long process

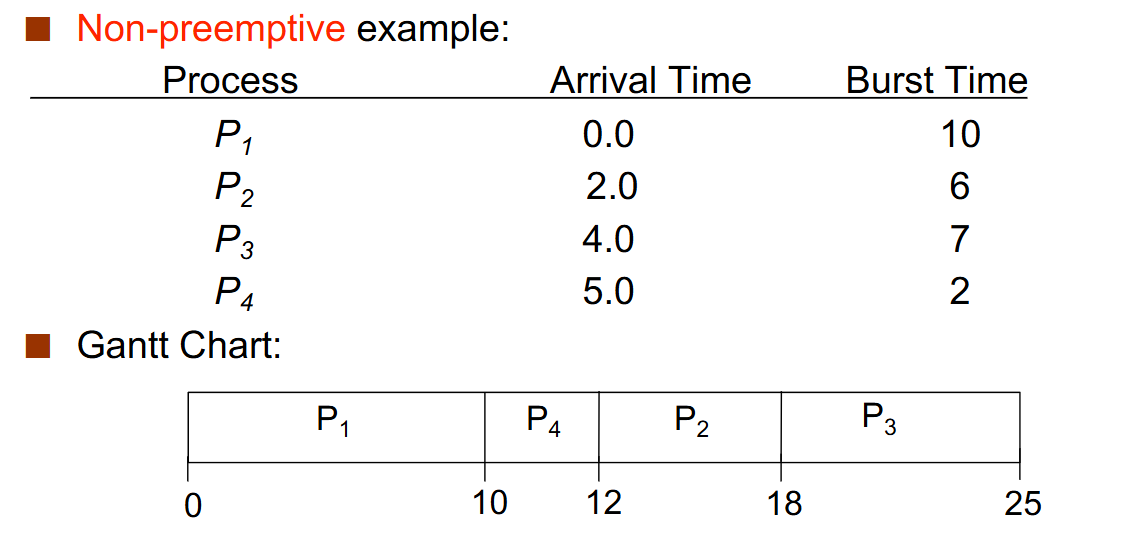

Shortest-Job-First(SJF)

average waiting time = (10 + (12 - 2) + (18 - 4) + (10 - 5))/4 = 7.25
average turnaround time = (10 + (18 - 2) + (25 - 4) + (12 - 5))/4 = 13.5

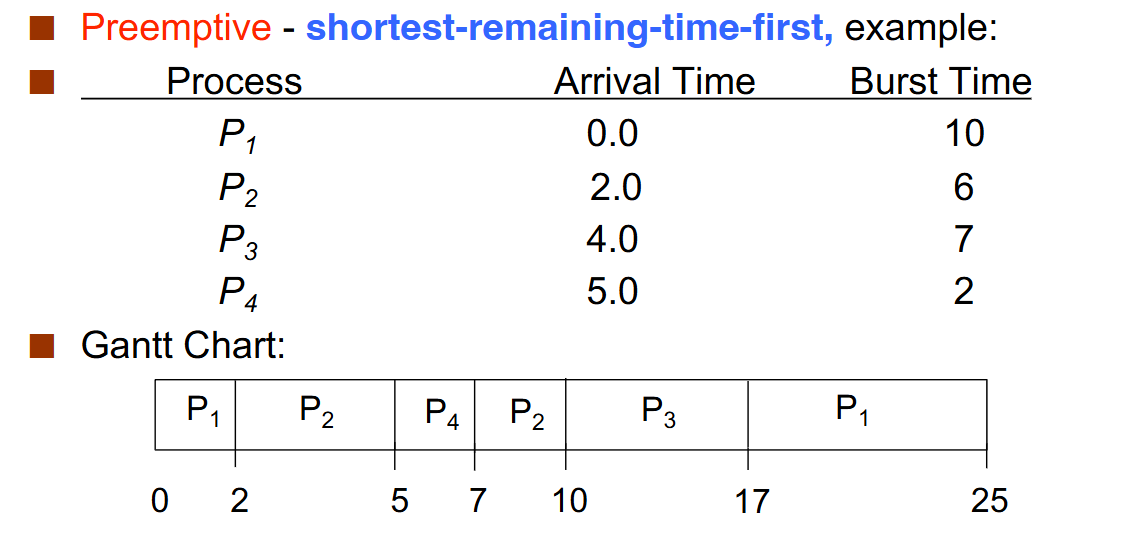

Be sure you can draw the Gantt Chart

average waiting time = ((17 - 2) + (7 - 5) + (10 - 4))/4 = 5.75
average turnaround time = (25 + (10 - 2) + (17 - 4) + (7 - 5))/4 = 12

SJF is optimal for average wait time
problem:we cannot know the burst duration beforehand

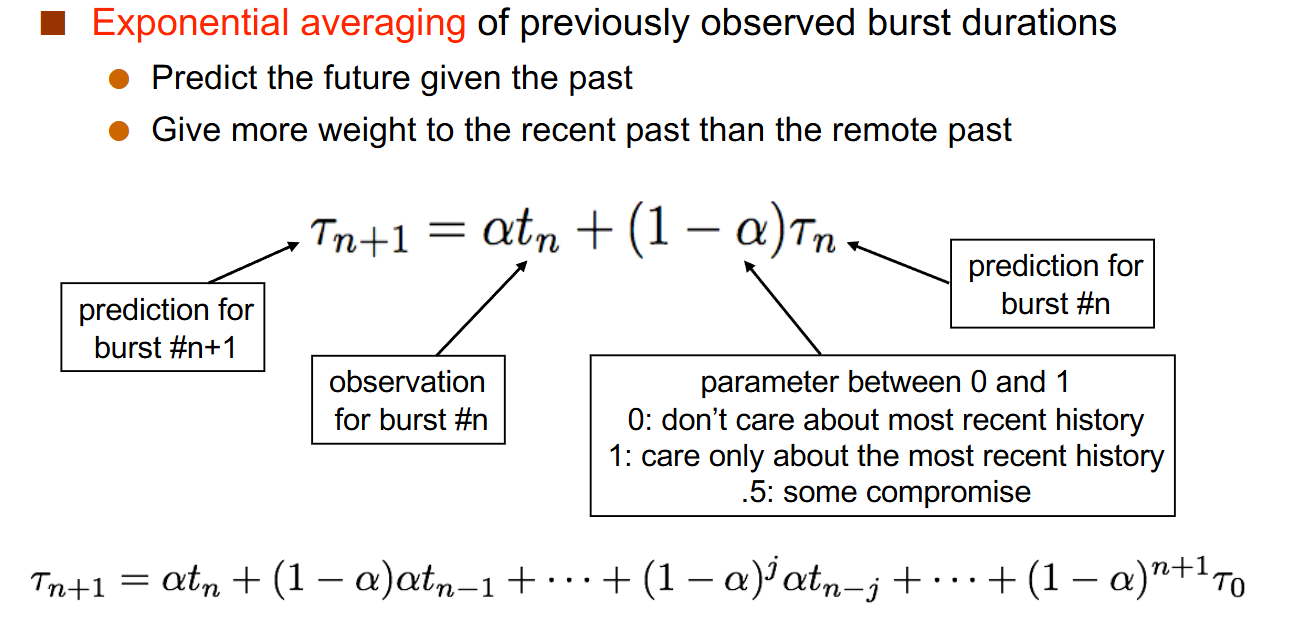

CPU burst duration prediction
base on previous CPU bursts

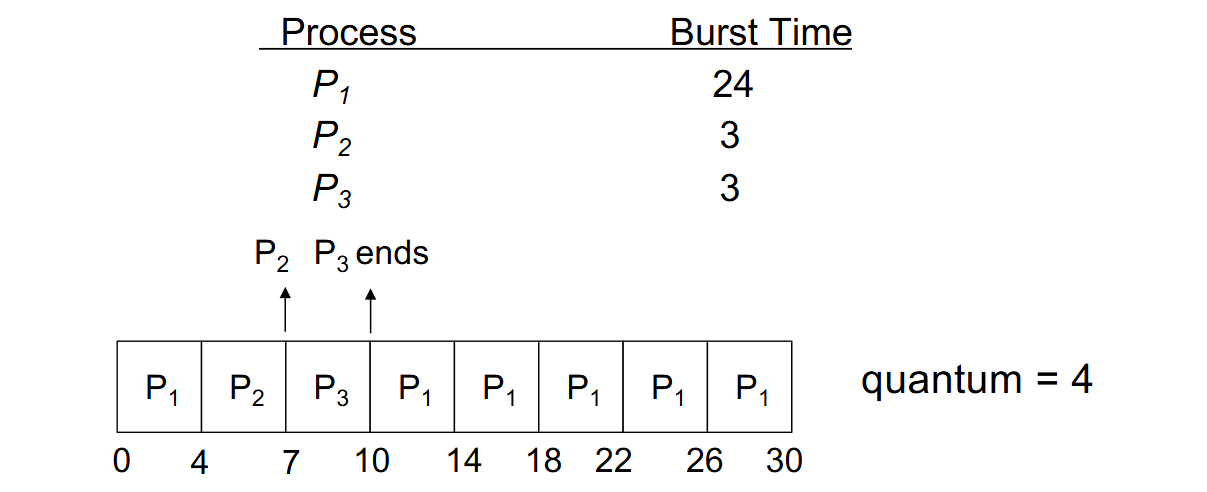

Round-Robin scheduling
preemptive
a time quantum:a fixed time interval(10-100ms)

Unless a process is the only READY process, it never runs for longer than a time quantum before giving control to another ready process

It may run for less than the time quantum if its CPU burst is smaller than the time quantum

Scheduling:

1.Pick the first process from the ready queue
2.Set a timer to interrupt the process after 1 quantum
3.Dispatch the process

average waiting time worse than SJF,but better response time no starvation,average waiting time is bounded

The right quantum:
short quantum:great response/interactivity but high overhead e.g.Mobile (quick response for users)
long quantum:poor response but low overhead e.g.Server(process heavy load)

context-switching time:10μs

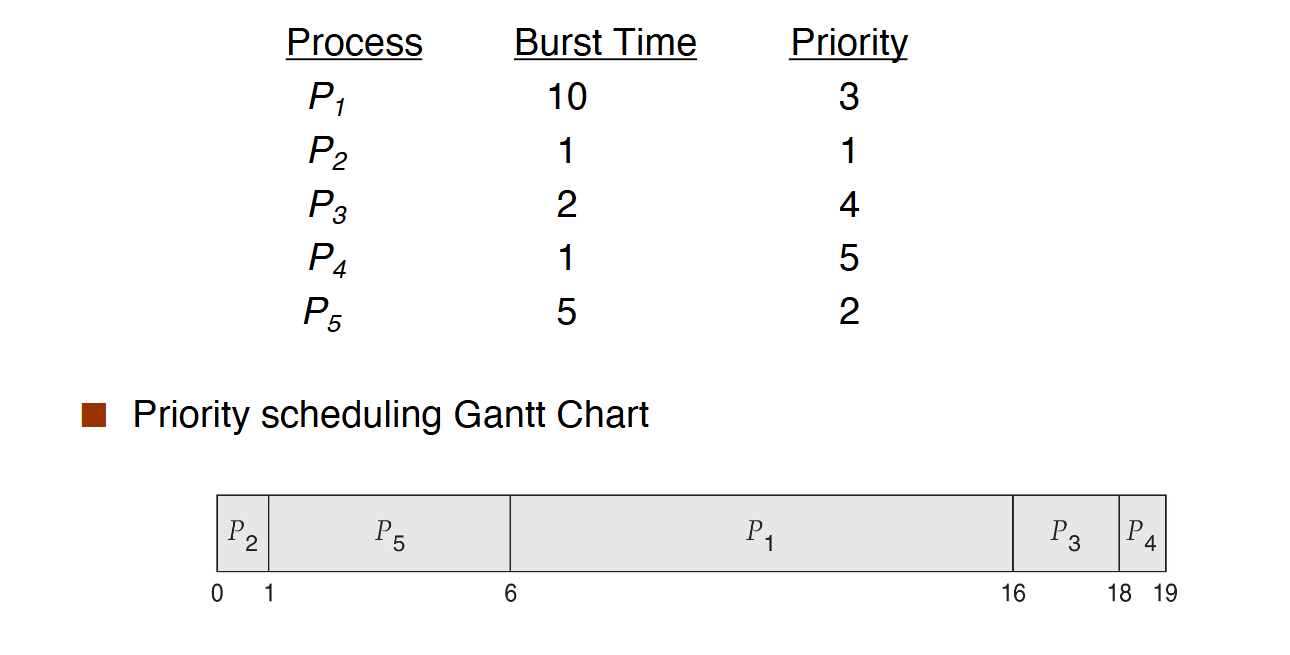

Priority scheduling

small priority first in Linux,big first in Windows

average waiting time = (0 + 1 + 6 + 16 + 18)/5 = 8.2

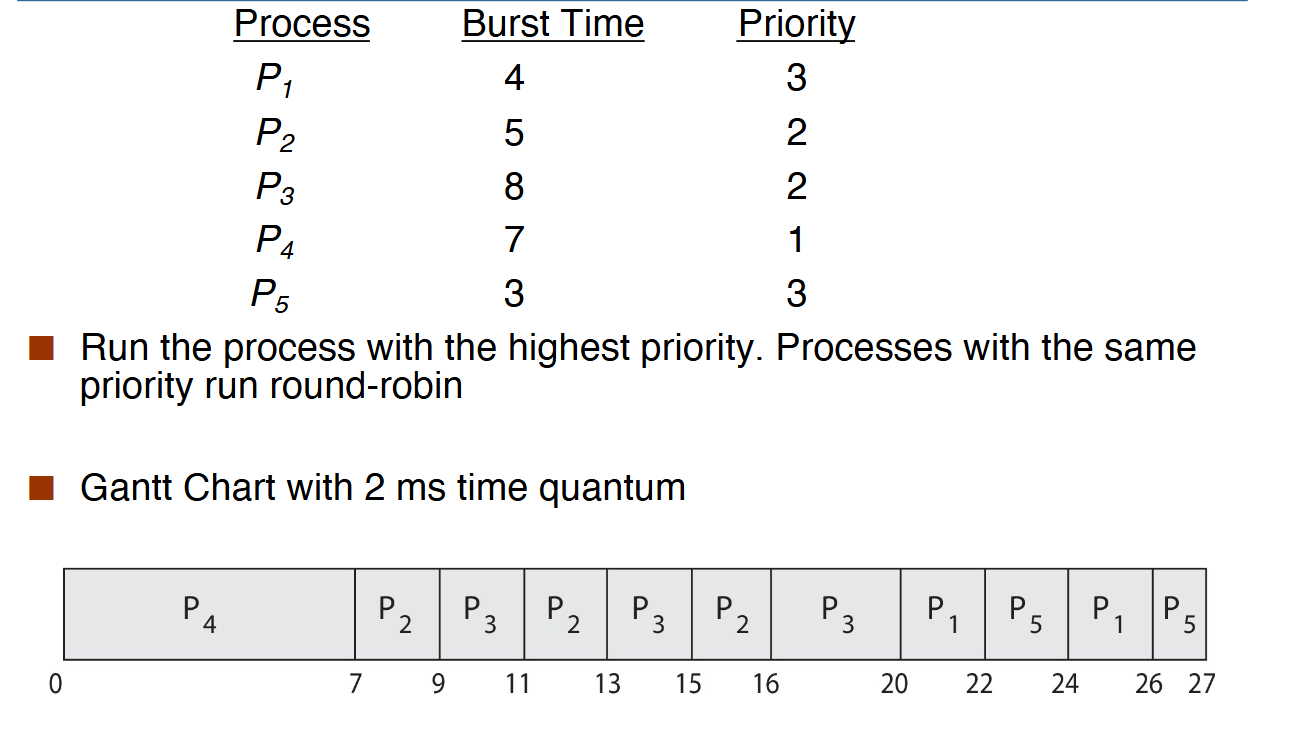

Priority scheduling / Round-Robin

High priority finish before low priority start
Round-robin in the processes of the same priority

problem:low-priority process will not ever run —— starvation

solution:priority aging——increase the priority of a process as it ages

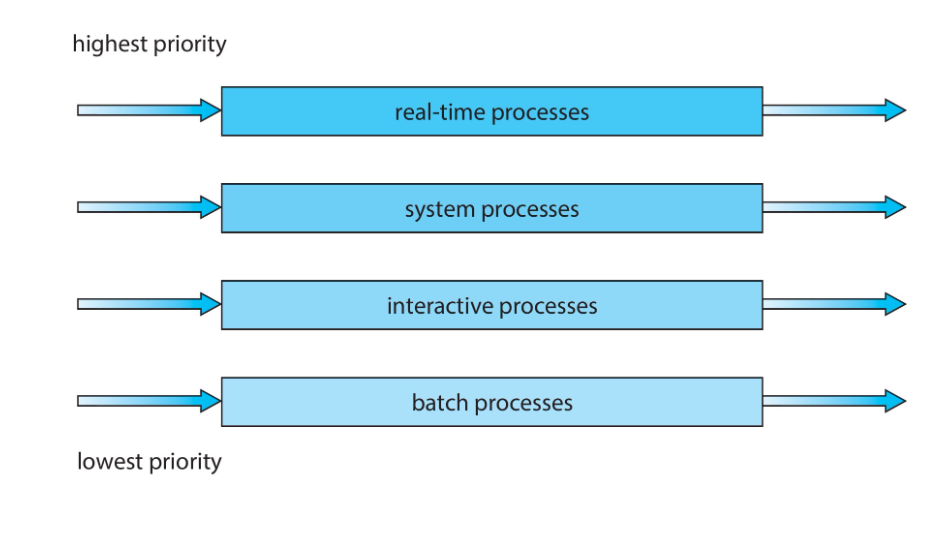

Multilevel Queue Scheduling

different scheduling algorithms applied in different queues
high-priority could be RR,low-priority could be FCFS
scheduling between the queues:

• preemptive priority scheduling
• time-slicing among queues

process can move among the queues

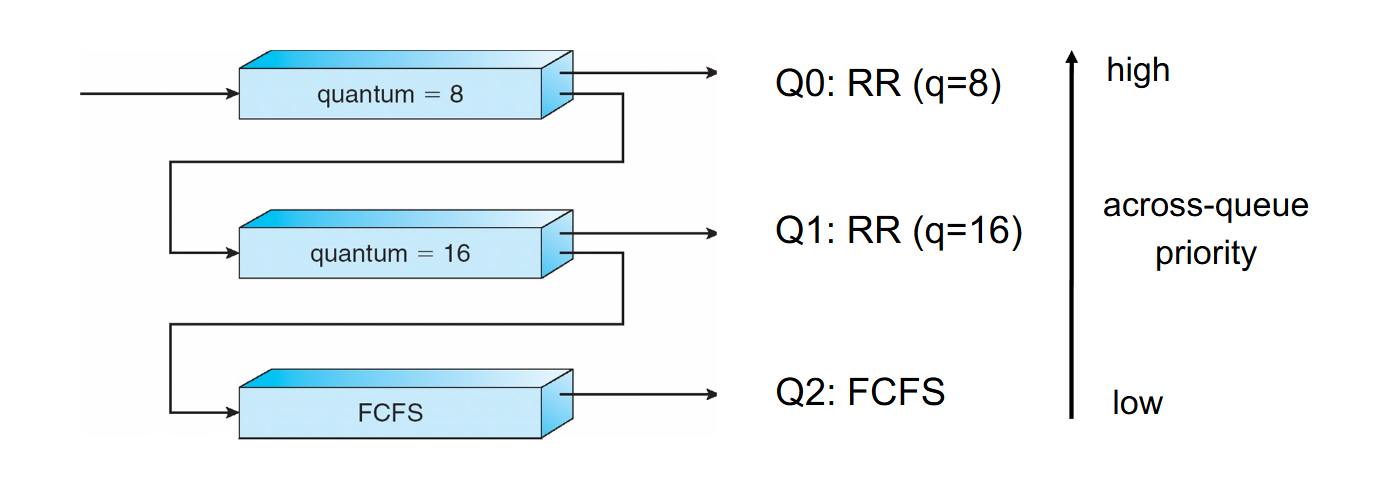

Multilevel Feedback queues

What's a good scheduling algorithm

1.analytical/theoretical results
2.simulation
3.implementation

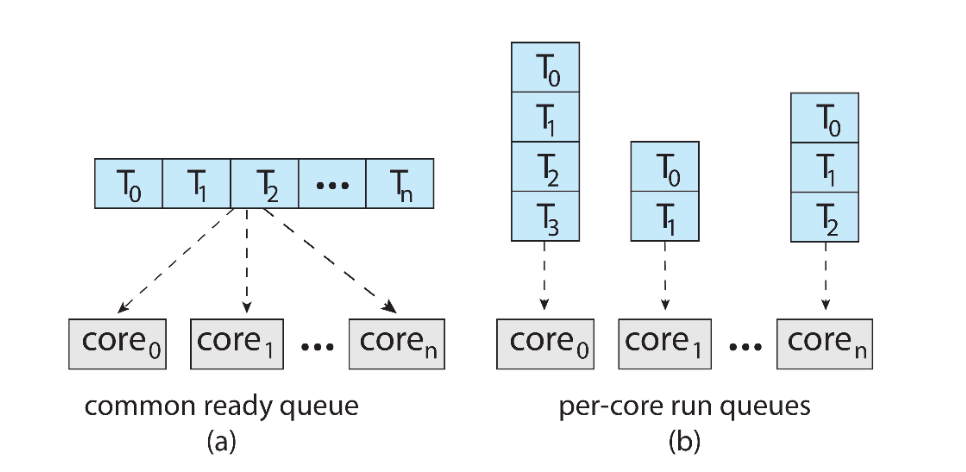

Multiple-Processor scheduling
Multi-core CPUs
Multi-threaded cores

hyperthreading:if one thread has a memory stall,switch to another thread 4-physical core -> 8-logical core

nice -10 ./a.out
//priority number = 19 - nice

通过提升时间片counter提升优先级priority
O(1)scheduling:
active task array & expired task array

bitmap set to 1 when a task of given priority becomes ready
find the highest priority for which there is a ready task becomes simple disadvantage:we cannot change the scheduling algorithm

different scheduling for desktop & server:different target —— solidity & response

Inter-Process Communication(IPCs) Week13

cooperating processes

• information sharing
• computation speedup
• modularity
• convenience

multiprocess architecture —— browser

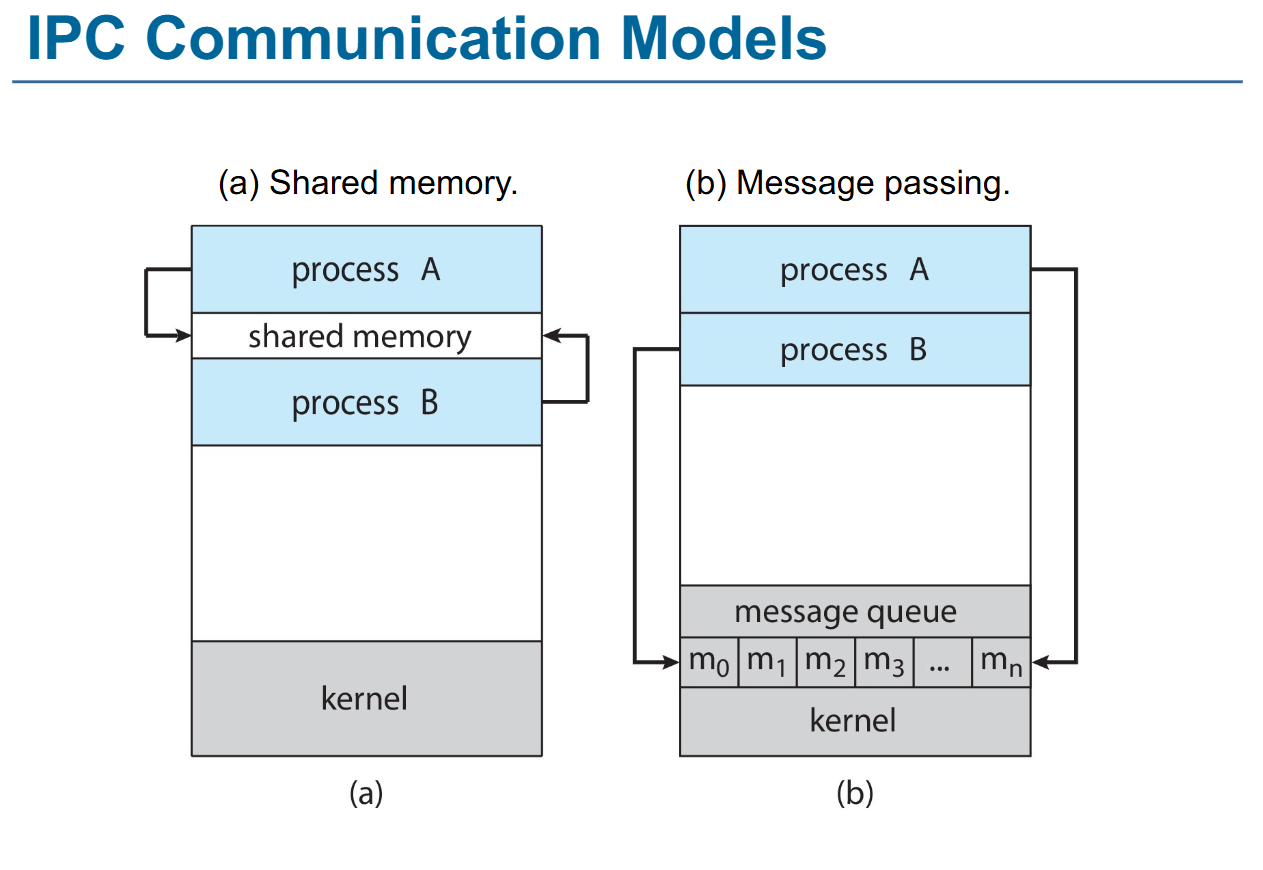

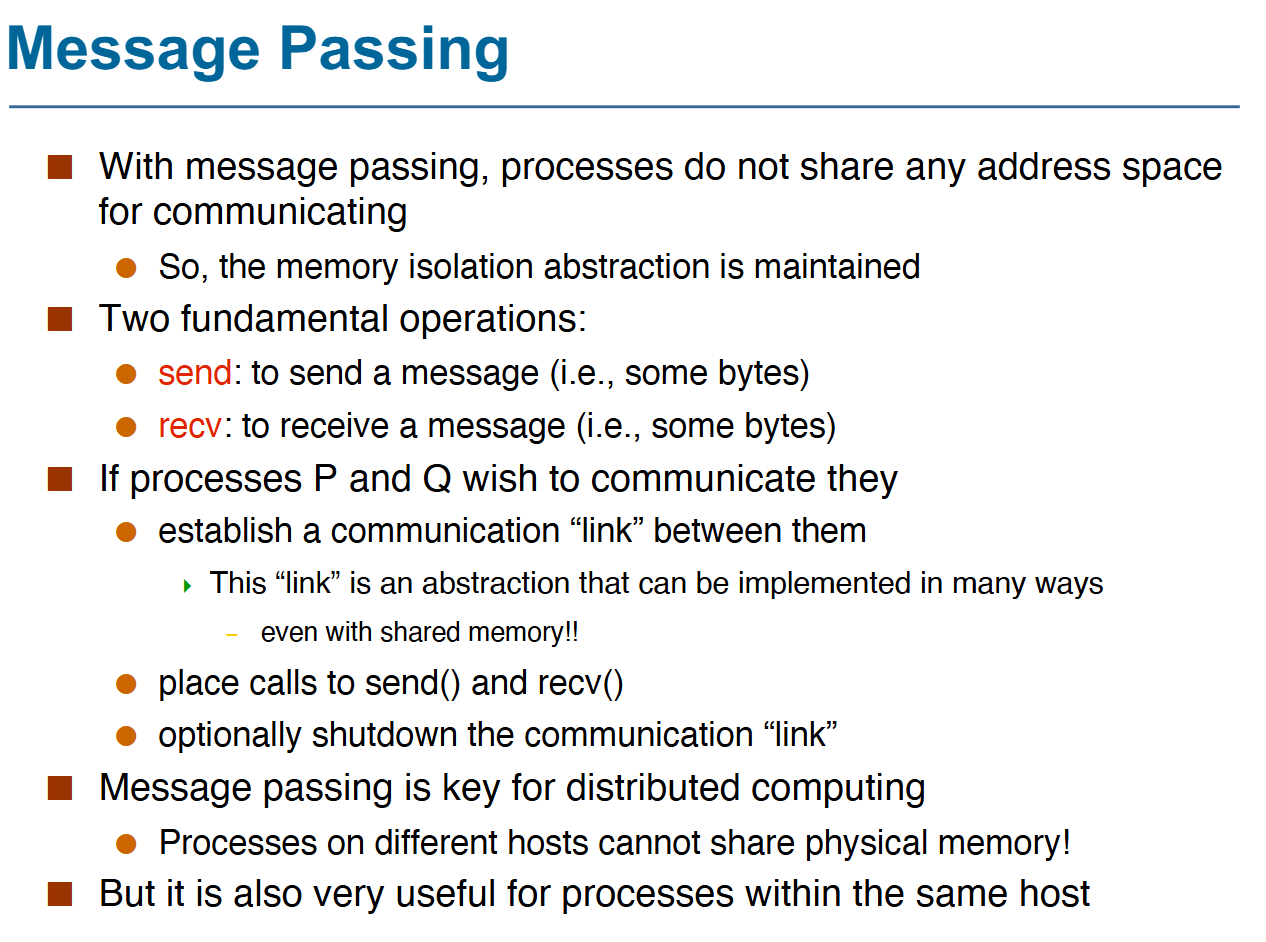

Models of IPC

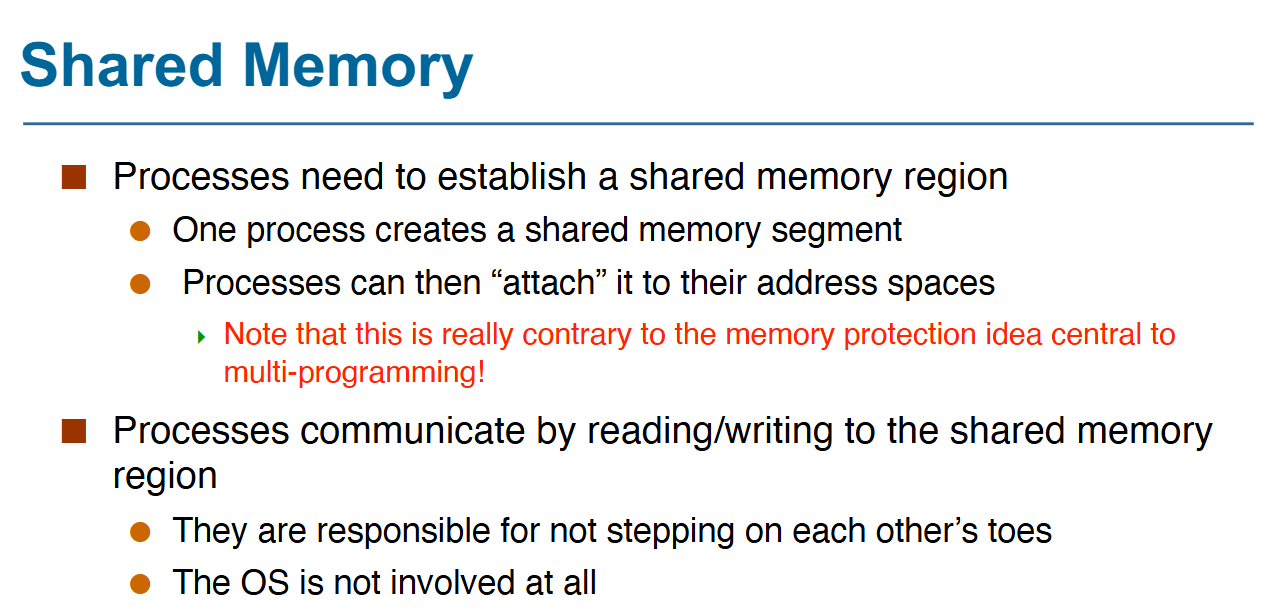

• Shared memory
• Message passing
• Signal
• Pipe
• Socket

Implementation of message passing

• Shared memory
• Hardware bus
• Network
• Direct/Indirect
• Synchronous/Asynchronous
• Automatic/explicit buffering

Signal
High-level software interrupt:^C

Pipes
Ordinary pipes(anonymous)
cannot be accessed from outside the process that created it.A parent process creates a pipe and uses it to communicate with a child process that it created.

• undirectional
• producers write to one end,consumers read from the other

Named pipes

• bidirectional
• no parent-child relationship

UNIX pipes
- mono-directional(单向)

ls | grep pipe
// |单向pipe 从前往后流

Client-Server Communication

• Socket = ip address + port
• RPC:client stub
• Java RMI:RPC in Java

Threads Week13

[Definition]Multiple execution units(执行单元) within a process process:资源分配与保护单元

process is a resource allocator and protection

threads in a process share address space(data,heap,files,page table and signals) & code,but not share pc,registers and stack(variables,function stack)

Advantages

• Creating a thread is cheap
• Context-switching is cheap
• share memory(dont need IPC)
• having concurrent activities in the same address space
• more responsive
• scalability on a multi-core machine

Drawbacks

• Weak isolation(process fails if one thread fails)

Many-to-one model
multi-threading:efficient and low-overhead
cannot take advantage of multi-core
fails if one thread fails

One-to-One model
drain memory(easy to manage and cheap)
commonly used

Many-to-Many model
too complex

Two-Level Model
One-to-One + Many-to-Many
more complex

pthreads join threads

C code
#pragma omp parallel
主动添加并行

Java
class MyThread extend Thread{

}

fork()

• duplicate 当前线程
• duplicate 所有线程作为一个进程

exec()

• 替代所有线程

fork() then exec()

• only duplicate current thread(变成一个)

Signal
多线程异步信号发送的几种选择：

1.发送到信号产生的线程
2.发送到当前进程中的所有线程
3.发送到当前进程中的某一个或某几个特定的线程
4.发送到进程中指定接收所有信号的一个特定线程

终止
Cancellation point
立即终止（asynchronous cancellation）

• 如果目标线程执行到了关键部分（critical section）时可能会造成访问资源的紊乱

延迟终止（deferred cancellation）

• 允许线程周期性检查自己是否可以结束
• should I die?should I die?should I die?

process-contention-thread
system-contention-thread(Linux)

In Linux,thread is called a lightweight process(LWP)

int clone(int (*fn)(void *), void *child_stack, int flags, void *arg);
//flag指定是否share(CLONE_VM share memory space)
//a complex fork()

Linux does not distinguish PCB and TCB
no process task_struct
the info of process is in the first thread's task_struct
PID is the PID of the leading thread
5 threads in a process at most(?)

user thread to kernel thread mapping
one user thread maps to one kernel thread(actually the same thread because of same task_struct)

• user code e.g.printf
• user space stack
• user space context -> pt_regs
• kernel code e.g.write
• kernel space stack(4pages 16KB limited)

Sychronization Week13 - 15

[Motivation]concurrent access to shared data may result in data inconsistency

Race condition:竞态
several processes or threads access and manipulate the same data concurrently and the outcome depends on the particular order
e.g.Race in kernel:same pid of different processes if both call fork()

pthread_mutex_unlock(&pmutex)

[Definition]Critical Section:the text that cannot be done in parallel

while(true){
  entry section
    critical section
  exit section
    remainder section
}

At most one process in critical section
ask permission in entry section
release in exit section

single-core system:prevent interrupts
multiple-processor:prevent interrupts is not feasible
preemptive:allows preemption of process when running in kernel mode non-preemptive:runs until exits kernel mode,blocks,or voluntarily yields CPU

Solution requirements

• Mutual Exclusion(互斥 MS):only one process can execute in CS
• Progress(空闲让进 不卡死):当没有线程在执行临界区代码时，必须在申请进入临界区的线程中选择一个线程，允许其执行临界区代码，保证程序执行的进展
• Bounded waiting(有限等待):从一个进程申请进入 CS ，必须在有限的时间内获得许可，不能无限等待(prevent starvation)

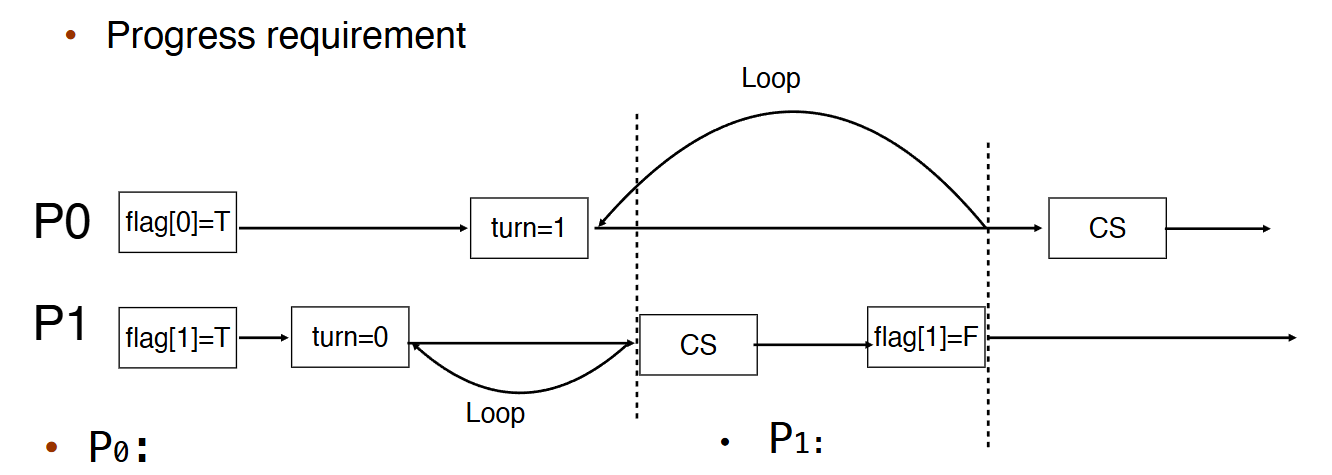

Peterson's solution:solves two-threads synchronization

• Assume LOAD and STORE are atomic(原子性：不可打断)
• Two processes share two variables
  boolean flag[2]:whether a process is ready to enter CS
  int turn:current process in the CS

Process 0:
do {
    flag[0] = true;
    turn = 1;
    while (flag[1] && turn == 1);
    // critical section
    flag[0] = false;
    // remainder section
} while (true);
Process 1:
do {
    flag[1] = true;
    turn = 0;
    while (flag[0] && turn == 0);
    // critical section
    flag[1] = false;
    // remainder section
} while (true);

Problem:

• only avaliable for two threads
• assume LOAD and STORE are atomic
• Instruction reorder is not allowed(commonly happends nowadays)

flag = False;
Thread 1
  while(!flag);
  print(x);
Thread 2
  x = 100;
  flag = True

expected output:100
reorder thread 2 -> output:0

Hardware support
Uniprocessors(单处理器):disable interrupts
Problem:code execute without preemption;inefficient
Solution

• Memory Barriers
• Hardware Instructions
• Atomic Variables

Memory Barriers

• Strongly ordered:a memory modification of one process is immediately visible to other processors(stable but complex,lower performance)
• Weakly ordered(high efficiency)

A memory barrier is an instruction that forces any change in memory to be made visible to all the processors.

flag = False;
Thread 1
  while(!flag);
  memory_barrier();//Ensure the value of x is not read prior to seeing the change of flag.
  print(x);
Thread 2
  x = 100;
  memory_barrier();//Ensure that the new value of x is visible to other processors prior to the change offlag.
  flag = True

Hardware Instructions
1.Test-and-set

bool test_set(bool *target)
{
  bool rv = *target;
  *target = TRUE;
  return rv;
  //set and return old value
}

example:
bool lock = FALSE;
do{
  while(test_set(&lock));//busy wait
  critical section
  lock = FALSE;
  remainder section
}while(TRUE);

For single-core:close interrupt before test_set and open it after
For multi-core:lock the bus(总线)

Bounded waiting

do{
  waiting[i] = true;
  while(waiting[i] && test_and_set(&lock));
  waiting[i] = false;

  critical section

  j = (i + 1) % n;
  while((j != i) && !waiting[j])
    j = (j + 1) % n;
  if(j == i)
    lock = false;
  else
    waiting[j] = false;

  remainder section
}while(true);

2.Compare-and-swap

int compare_and_swap(int *value, int expected, int new_value)
{
  int temp = *value;
  if(*value == expected)
    *value = new_value;
  return temp;
}

Solution:(given by Intel x86 cmpxchg(lock the bus))
while(true)
{
  while(compare_and_swap(&lock, 0, 1) !=0);
  /* do nothing */
  /* critical section */
  lock =0;
  /* remainder section */
}

ARM64:LDXR&SDXR(load-exclusive&store-exclusive)

Atomic Variables

void increment(atomic int *v) {
    int temp;
    do {
        temp = *v;
    } while (temp != compare_and_swap(v, temp, temp + 1));
}

Mutex Locks互斥锁 Semaphore

while(true){
  acquire lock
  critical section
  release lock
  remainder section
}

//Definition
//atomically implemented
acquire(){
  while(compare_and_swap(&locked, false, true));//busy waiting
}

release(){
  lock = false;
}

busy waiting:忙等待 spinlock T0 acquires lock -> INTERRUPT->T1 runs, spin, spin spin... -> INTERRUPT->T0 runs -> INTERRUPT->T1 runs, spin, spin spin...INTERRUPT-> T0 runs, release locks ->INTERRUPT->T1 runs, enters CS
T1 busy waits all its CPU time until T0 releases lock
T0 holds the lock,but does not get CPU

Reduce busy waiting - just yield(moving from running to sleeping)

void init() {
  flag = 0;
}
void lock() {
  while(test_set(&flag, 1) == 1)
  yield();// give up the CPU
}
void unlock() {flag = 0;}

apply waiting-queue(semaphore(by Dijkstra)(lock-queue))
wait(S){
  while(S <= 0) ; //busy wait
  S --;
}
signal(S){
  S ++;
}

semaphore

• binary semaphore
• counting semaphore

typedef struct{
  int value;//空闲资源数
  struct list_head *waiting_queue;
}semaphore;

wait(semaphore *S){
  S -> value --;//MS is needed(mutex)
  while(S -> value < 0) {
    add this process to S -> list;
    block();
  }
}
signal(semaphore *S){
  S -> value ++;
  if(S -> value <= 0){
    remove a proc.P from S->list;
    wakeup(P);
  }
}

//atomic wait and signal

No busy waiting on critical section:they are sleeping for waiting ——save CPU time

final exam

choose between Mutex(spinlock) & semaphore:context switch time overhead

Mutex/spinlock

• no blocking
• waste CPU on looping
• good for short CS

Semaphore

• no looping
• context switch is time-consuming
• good for long CS

Question:How to make wait and signal be atomic?
use spinlock

Semaphore sem;
do {
  wait(sem);//busy waiting
  critical section//no busy waiting
  signal(sem);//busy waiting
  remainder section
}while(TRUE);

//busy waiting is much shorter

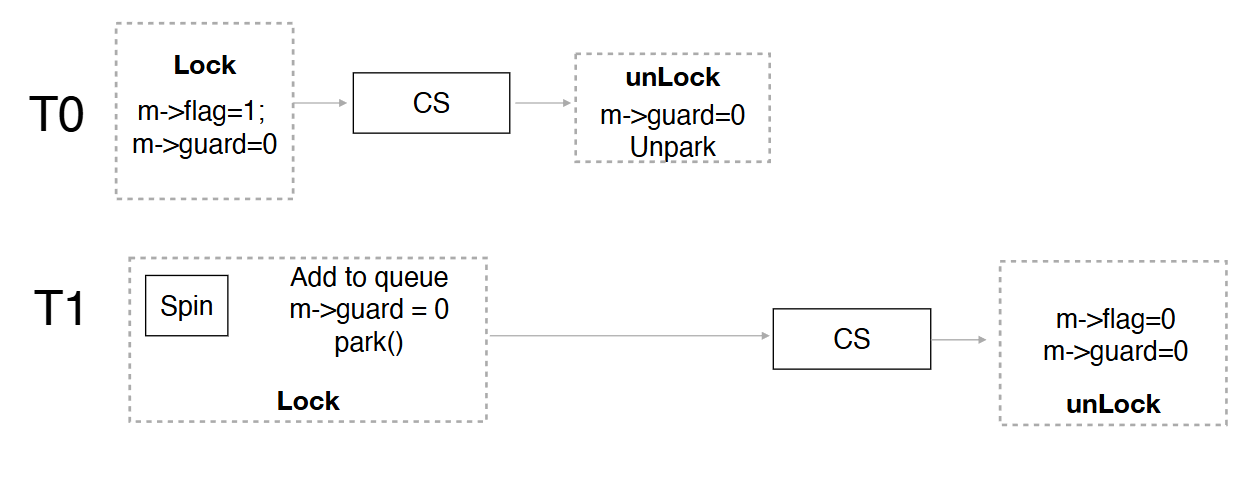

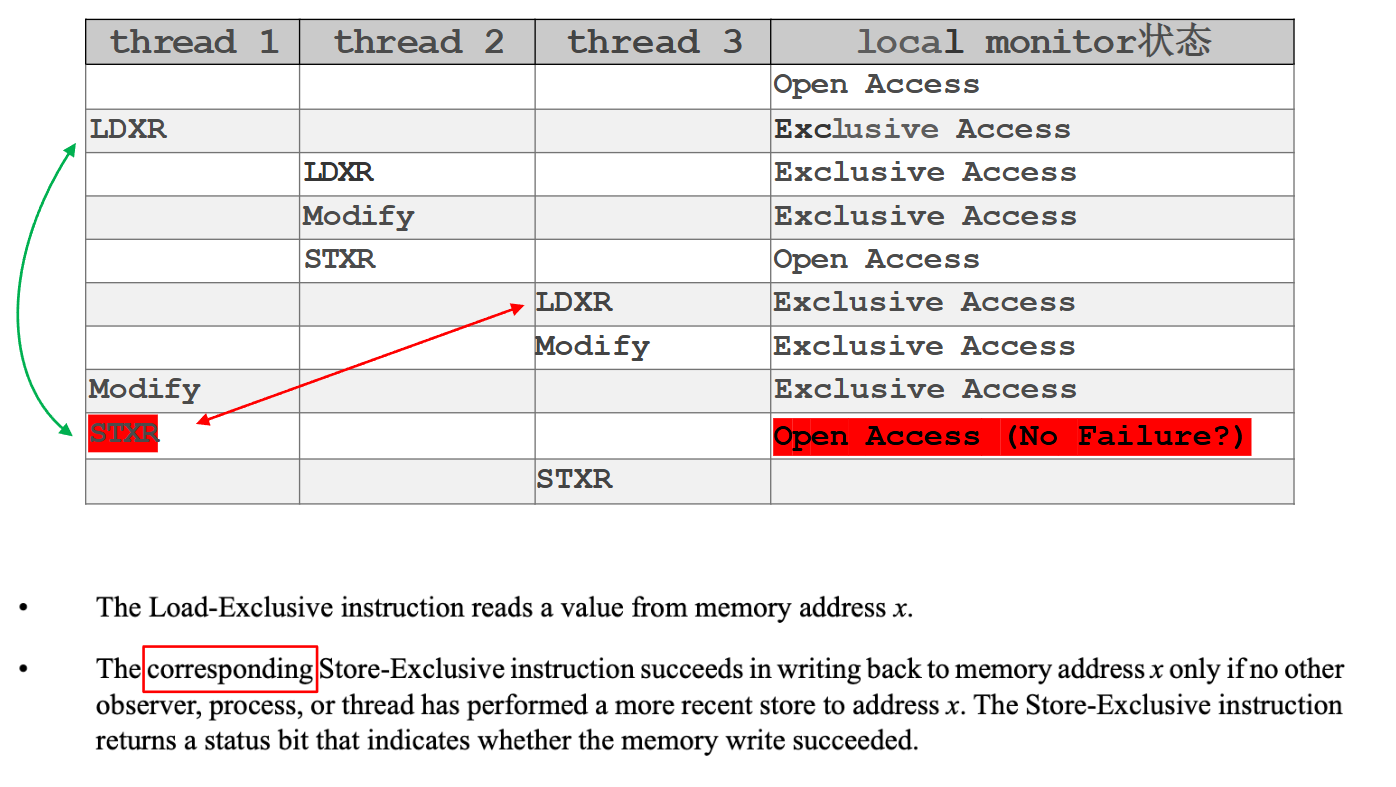

LOAD in thread 3 will prohibit STORE in thread 1,causing thread 1 to wait(回滚)

final exam

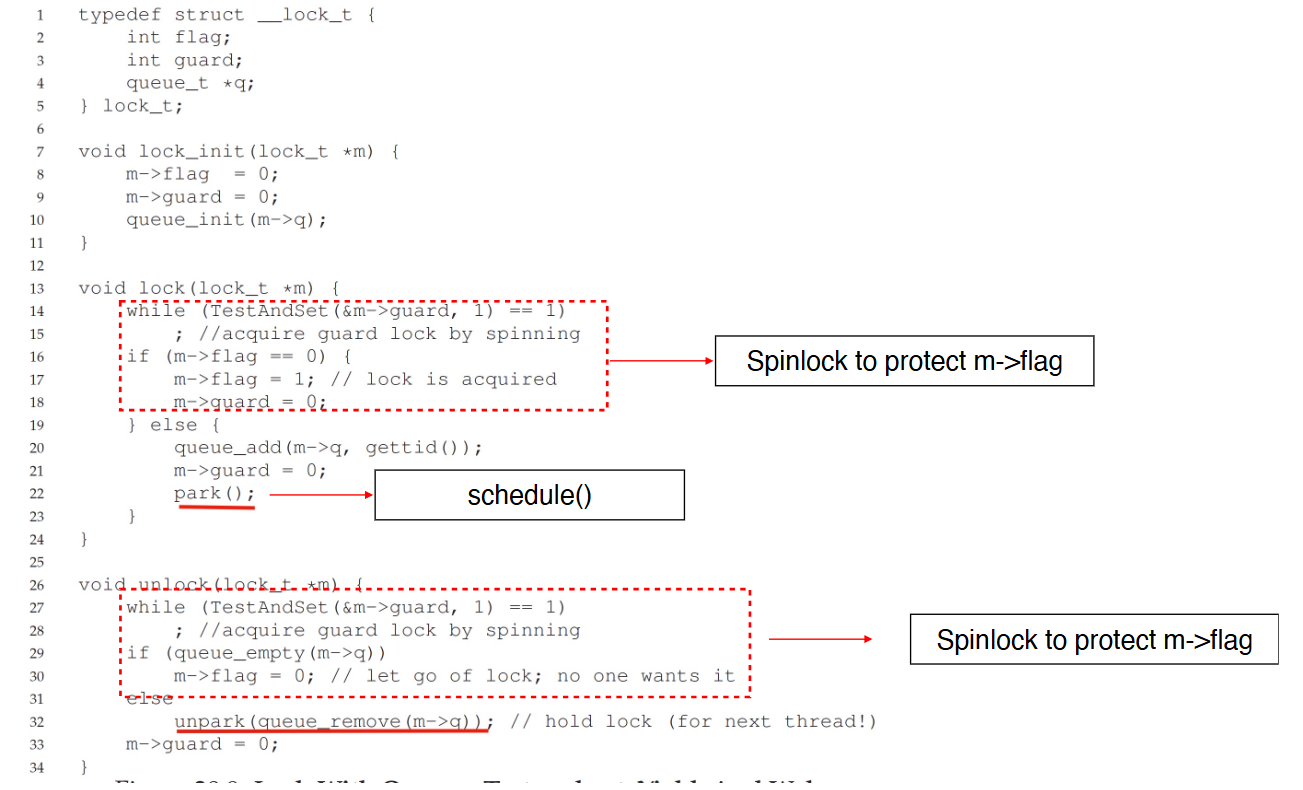

Question1:18和21行的作用：保护mutex(14-15行spinlock)
Question2:21和22行能否交换：不能，否则会拿着锁sleep导致其他线程busy waiting
Question3:一个线程拿着锁sleep，其他线程会停在什么地方：14行，因而是busy waiting而不是sleep(14到18行也是个critical section)

Deadlock and Starvation
Deadlock:two or more processes are waiting indefinitely for an event that can be caused by only one of the waiting processes

P0:
wait(S);
//time interrupt here
wait(Q);

P1:
wait(Q);
//time interrupt
wait(S);

Starvation:indefinite blocking(doesn't necessarily mean deadlock,other threads can operate correctly)

Priority inversion:a higher priority process is indirectly preempted by a lower priority task
e.g.three processes,P_L,P_M,P_H
P_L holds a lock that was requested by P_H,P_H is blocked
P_M ready and preempted P_L
P_M and P_H inverted

Solution:priority inheritance
temporily assign the highest priority of P_H to the process holding the block (P_L)

实现：比较新进入的进程的priority与持锁进程的priority

In Linux,down() = wait,up() = signal

void down(struct semaphore *sem)
{
  unsigned long flags;

  raw_spin_lock_irqsave(&sem->lock,flags);
  if(likely(sem->count > 0))
    sem->count --;
  else
    __down(sem);
  raw_spin_unlock_irqrestore(&sem->lock,flags);
}

__down(sem) -> __down_common() -> ___down_common() -> unlock,schedule_timeout
no sleep while holding spinlock

POSIX Named Semaphores:another process can access the semaphore by referring to its name

Condition Variables(仅作了解)

while(x != 10) sleep(5);

while checking is not atomic and cannot support multi-threading

wait(condition,lock)
signal(condition,lock)
broadcast(condition,lock):wake up all waiting threads

Classical synchronization problems

必考(考研题)

• bounded-buffer problem(consumer-producer problem)

//Definition
n buffer
semaphore mutex = 1;
int full_slots = 0,empty_slots = N;
The producer process:
do{
//produce an item
  ...
  wait(empty_slots);
  wait(mutex);
    //调换顺序发生deadlock
  //add the item to the buffer
  ...
  signal(mutex);
  signal(full_slots);
}while(TRUE);

The consumer process:
do{
  wait(full_slots);
    //wake up by signal(full_slots) but not operate immediately until scheduling
    //move consumer from full_slots_waiting_queue -> ready_queue
  wait(mutex);
    //timer interrupt here:producer stops at wait(mutex)
  //remove an item from the buffer
  ...
  signal(mutex);
  signal(empty_slots)
  //consume the item
  ...
}while(TRUE);

start from empty_slots,

• readers-writers problem
  allow multiple readers to read at the same time
  only one single writer can access the shared time
  reader and writer cannot coexist

//Definition
semaphore mutex = 1;(protect readcount)
semaphore write = 1;
int readcount = 0;
The writer process:
do{
  wait(write);
  //write the shared data
  ...
  signal(write)
}while(TRUE);

The reader process:
do{
  wait(mutex);
  readcount ++;
  if(readcount == 1)
    wait(write);
  //else no writer exist,no need to wait because readers can coexist
  signal(mutex); //why signal here
  //reading data
  ...
  wait(mutex);
  readcount --;
  if(readcount == 0)
    signal(write);
  signal(mutex);
}while(TRUE);

Reader first
continuous readers come causes writer to starve
Writer first

• *dining-philosophers problem
  multi-resource synchronization
  semaphore chopstick[5] initialized to 1

Philosopher i:
do{
  wait(chopstick[i]);
  wait(chopstick[(i+1)%5]);
  eat
  signal(chopstick[i]);
  signal(chopstick[(i+1)%5]);
  thick
}
causing deadlock

do nothing -> mutex for each chopstick -> asymmetrical(odd pickup left first,even pickup right first)

Deadlocks Week15

Compare to starvation:deadlock means all the threads cannot process(starvation:some)
[Definition]a set of blocked processes each holding a resource and waiting to acquire a resource held by another process in the set

Four conditions of deadlock occurence

• mutual exclusion:a resource cannot be shared
• hold and wait
• no preemption
• circular wait

Resource-Allocation Graph
nodes:
P = {P₁,...,P_n} set of processes
R = {R₁,...,R_m} set of resource type
edges:
request edge P_i -> R_j
assignment edge R_j -> P_i

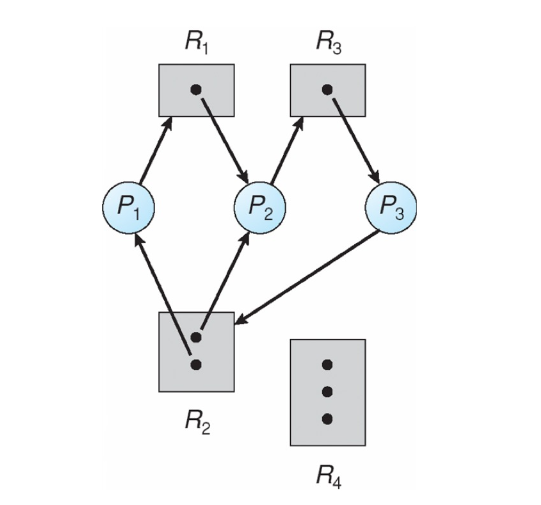

an example of deadlock , no process can move any longer

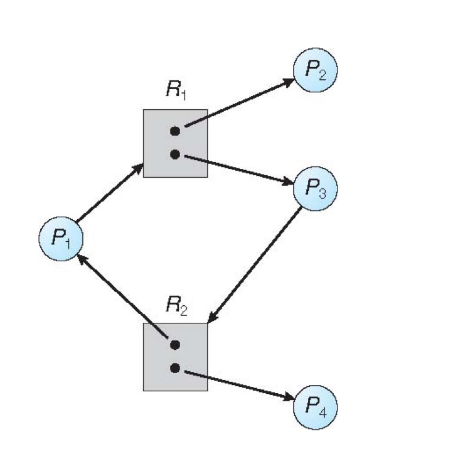

no deadlock here

• no cycles -> no deadlock
• only one instance per resource type -> deadlock
• several instances per resource type -> possiblility of deadlock

Handle deadlock

• Prevention:break one of the four conditions
• Avoidance:calculate the safe states
• Deadlock detection
• Deadlock recovery

The OS often does not handle deadlock.

Prevention

• mutual exclusion
  cannot prevent if resources are non-sharable
• hold and wait
  Require process to request all its resources before it begins execution -> starvation
• no preemption
  Preempted resources are added to the list of resources it waits for -> starvation
• circular wait
  order the resources
  require each process to request resources in increasing order
  not avaliable for dynamic requirements and dynamic acquired lock

Avoidance

Each process declares a max number of resources it may need(not practical)
Deadlock-avoidance algorithm ensure there can never be a circular-wait condition

[Definition]Safe state:processes are guaranteed to be completed without a deadlock
A safe state ensures no deadlock
Safe sequence
avaliable resources = resources avaliable + resources released by the finished processes

Resources:12
Avaliable is 3

	Max need	Current have	Extra need
P0	10	5	5
P1	4	2	2
P2	9	2	7

Safe sequence:P1 P0 P2

Single instance -> resource-allocation

• claim edge:converts to request edge when a process requests a resource The request can be granted if converting the request edge to an assignment edge does not result in the formation of a cycle

Multiple instance -> banker's algorithm

Deadlock detection

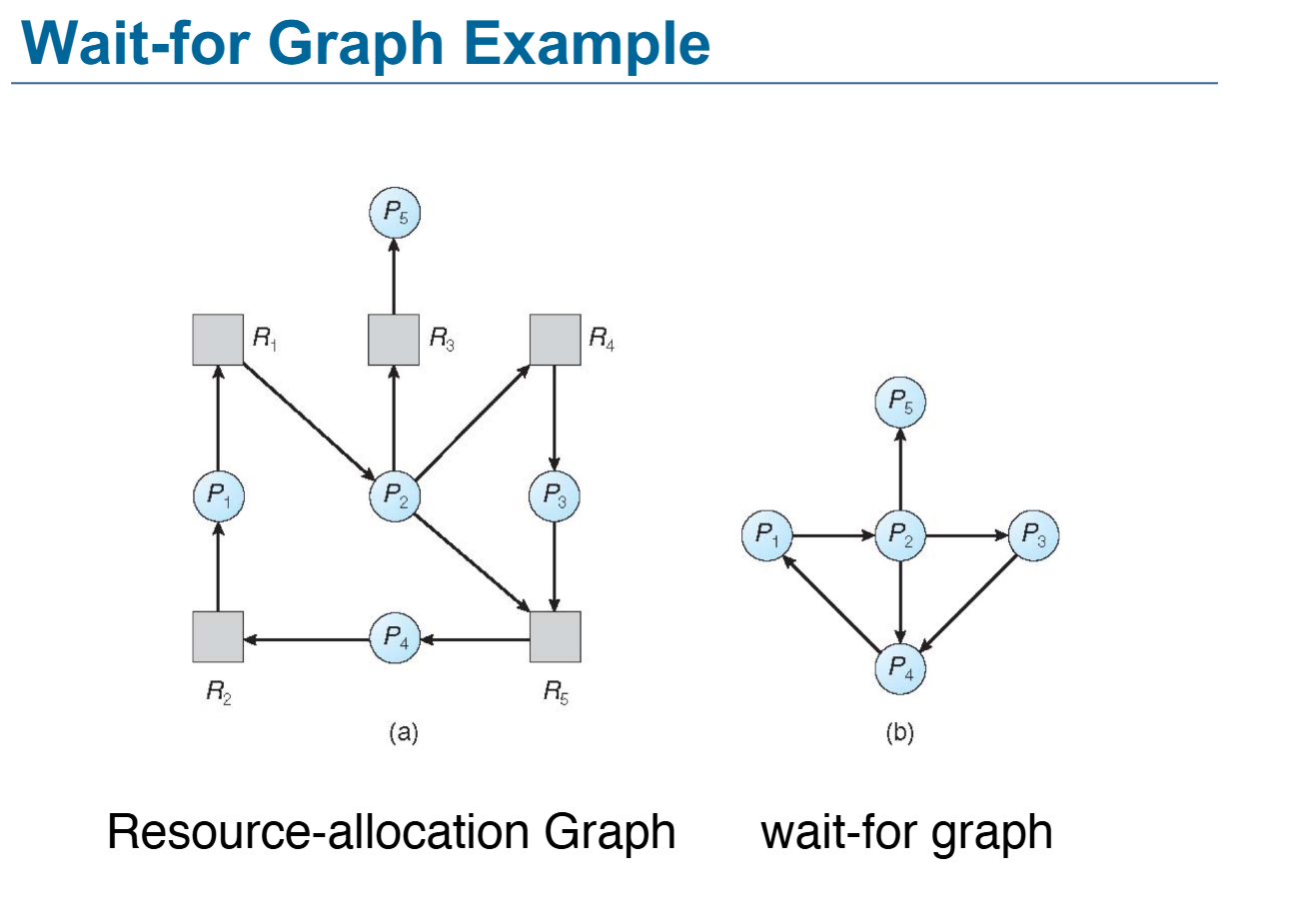

Single instance

Multiple instance

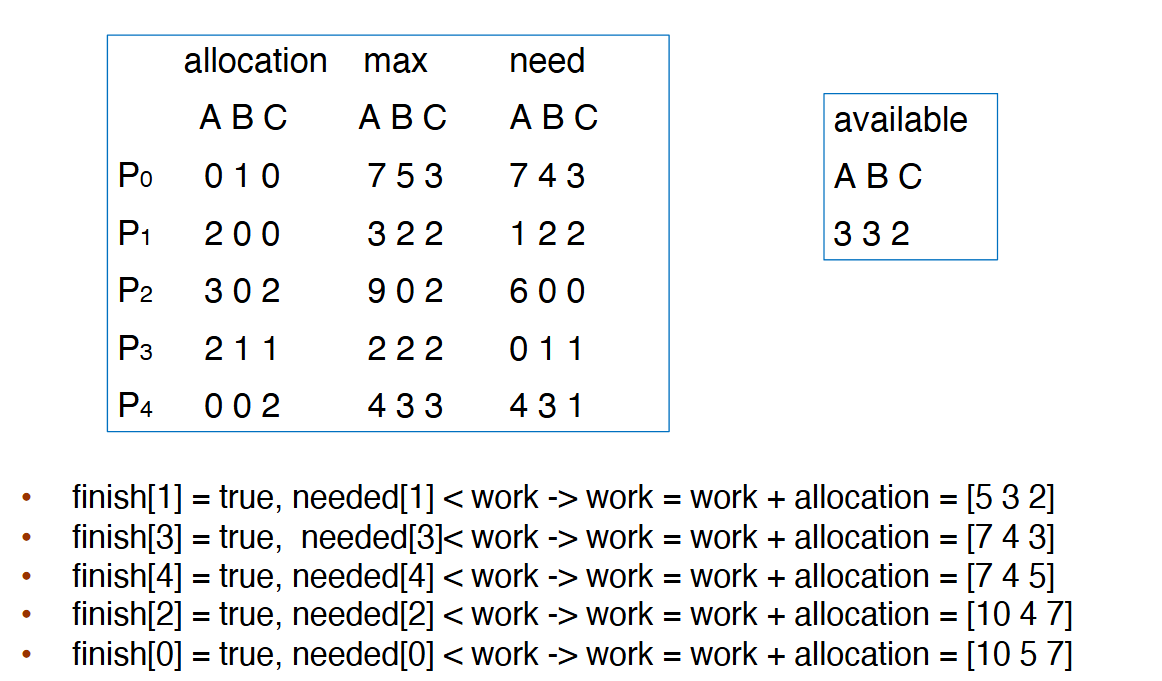

Applying Banker's algorithm while operation

Deadlock recovery

Option 1
kill one process at a time until the deadlock cycle is eliminated kill/abort order:

• priority
• how long has computed
• resources the process has used
• resources needed
• how many processes will need to be terminated
• interactive or batch

Option 2
Resource preemption

• select a victim
• rollback
• starvation

Final Review Week16

硬件

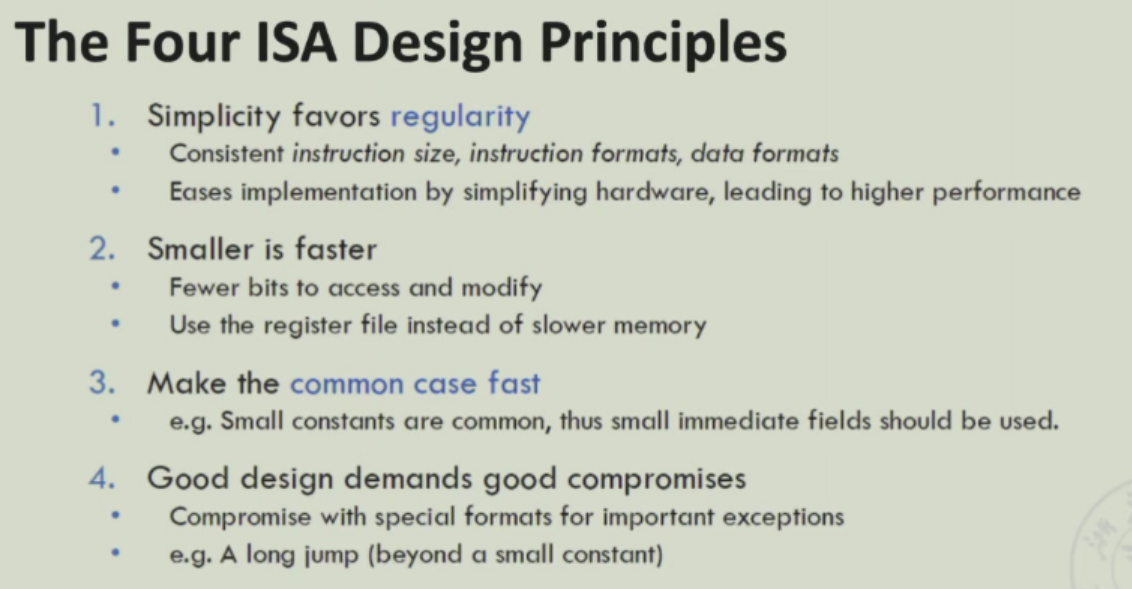

Instruction set principles

internal storage(e.g.C = A + B)

• stack
  Push A
  Push B
  Add
  Pop C
• accumulator
  Load A
  Add B
  Store C
• register-memory
  Load R1,A
  Add R3,R1,B
  Store R3,C
• Load-Store
  Load R1,A
  Load R2,B
  Add R3,R1,R2
  Store R3,C

RISC-V ISA

Address mode
operand
memory operand:byte addressed,words ...
六种指令类型R I S B J U

Pipelining

[Definition]stage/segment depth(number of segments)

[Charactistic]
Bottleneck:longest section -> 设定时钟周期的长度
buffer-register
pass-time
empty-time

[Classes]
Single/Multi function:是否进行多种运算

Static/Dynamic (Multi function):单一时间是否只能只能执行一个功能

Linear/Nonlinear:是否有回环feedback loop,nonlinear一定有调度

[Implementation]

Performance evaluation

Increase the instruction throughput

Throughput(TP)(注意单位)

Speedup(Sp):与对应单周期CPU做对比

Sp = m(n >> m) 理想加速比等于切割段数

Efficiency(η)(注意百分号)

η -> 1(n -> ∞)

DataPath/Graphically Represent/Control

Hazard

Structural Hazard
在同一时钟周期内竞争性访问同一物理资源
Solution1:stall(nop)
Solution2:Add more hardware

Data Hazard

重点考察

数据依赖
Solution:Forwarding
Double data hazard

Load-Use:need to stall for one cycle despite forwarding
force control values in ID_EX to 0
prevent update of PC and IF_ID

Schedule of nonlinear pipeline

Initial conflict vector -> conflict vector -> state transition graph -> circular queue -> shortest average interval

禁止集F = {1,5,6,8}
初始冲突向量C = 10110001
取0位，并集更新冲突向量
调度表与状态转移图

寻找回环（不一定回到初始冲突向量）
计算shortest average interval

Multiple Issue

同一个时钟周期内发射多条指令increase Instruction-Level Parallelism(ILP) evaluation:IPC
Static(Compiler)/Dynamic(CPU,编译器仍参与,CPU辅助兜底)
调度类型

调度方式:Superscalar(动态) VLIW(静态固定数量) Superpipeline(子时钟) 注意Superscalar VLIW的区别
VLIW对某一指令同时取值译码，只在EX阶段分开

Exceptions and interrupts

Exception:arise from CPU
Interrupt:from external I/O

Exception -> control hazard/mispredicted branch

Software-Hardware Interface

软硬协同
Solution for hazards
Code reordering

Application software
System software - OS
Hardware

软件

Computer architecture

Von-Neumann
Data stored in memory:only bits,no data type

Why Memory Hierarchy work
Temporal/Spatial locality

Introduction

[Definition]resource abstractor and resource allocator

How an OS start?
first program:bootloader,then locates and loads the OS kernel into memory

wait for event:syscall interrupt exception

Interrupt:I/O timer

OS operates on privileged instructions(relevant to hardware)
A subset of instructions of every CPU is restricted in usage: only the OS can execute them

User mode & kernel mode
OS(狭义):kernel(Linux)
OS(广义):user(app) + kernel(Android)
Browser is not a part of an OS

RISCV modes:三个半

void ProcessEvent(event)

Syscall

[Definition]a special kind of trap when a user program need to do something privileged(interface of user and kernel mode)
syscall is not a privileged instruction

context_switch when mode change
pt_regs in per-thread(one-to-one) kernelstack
kernelstack：PCB & thread-info

5 OS services

Structure

Syscall

syscall number:syscall table index
kernel_entry saves the context
kernel_exit restores

Linkers and loaders

static linking

• big file(x100 of dynamic linking)
• independent of the environment(less syscalls)
• no .interp section(loader-path)
• no memory mapping segment(dynamic libraries e.g./libc)

dynamic linking

• small file
• need loader resolve library calls
• can't execute without proper loader

static variable -> .data(int a=5;)初始化
static const -> .rodata(read only)
int b; -> .bss未初始化 filled with 0 .data,.rodata,.bss all store global vars. .text executable
stack:per thread(threads have different return addr)
heap:per process

Who setups ELF file mapping
Kernel
exec syscall
load_elf_binary

Who setups stack and heap
Kernel
exec syscall

Who setups libraries
Loader(user process)
ld-xxx

Linux/Windows:monolithic宏内核
MacOS:混合内核

Processes

[Definition]a unit of resource allocation and protection

PCB(process control block):register content,pid,pc,state,scheduling info(priority),...

new:fork/execve
数进程数量
Why fork() return two values?
it copys two user space context(pt_regs)
child改变值不影响parent

exec会抹去当前进程的内容（无论是子进程还是父进程）

terminate:exit wait waitpid SIGNAL -> zombie orphan
PCB must be deallocated by its parent

ready queue & waiting queues(wait对象的数量)

context switch

1.switch stack(sp)
2.switch pc(ret lr)

must happen in kernel mode:change pc(CPU)

When and where are the kernel context been saved?

• when:cpu_switch_to
• where:cpu_context in PCB

When and where are the user context been saved?(before (kernel)context switch)
context switch in kernel mode

• when:kernel_entry
• pt(process trees)_regs in per_thread kernel stack

Scheduling

FCFS,SJF(preemptive & nonpreemptive不实用),RR,priority

Gantt chart
average waiting time/turnaround time

抢占情况下如何计算average waiting time 大题

IPC

shared memory
message passing
各自优缺点

Threads

[Definition]Multiple execution units(执行单元) within a process

threads in a process share address space(data,heap,files and signals) & code,but not share pc,registers and stack(variables,function stack)

Advantages

• Creating a thread is cheap
• Context-switching is cheap
• share memory(dont need IPC)
• having concurrent activities in the same address space
• more responsive
• scalability on a multi-core machine

Drawbacks

• Weak isolation(process fails if one thread fails)

One-to-one model
large overhead

fork,execve,SIGNAL,cancellation
multiprocess:pid = leader thread pid

Sychronization

Solution requirements

• Mutual Exclusion(互斥 MS):only one process can execute in CS
• Progress(空闲让进 不卡死):当没有线程在执行临界区代码时，必须在申请进入临界区的线程中选择一个线程，允许其执行临界区代码，保证程序执行的进展
• Bounded waiting(有限等待):从一个进程做出进入 CS 的请求，直到该请求允许为止，其他进程允许进入其 CS 的次数有上限(prevent starvation)

Peterson's solution

Hardware support
Uniprocessors(单处理器):disable interrupts
Problem:code execute without preemption;inefficient
Solution

• *Memory Barriers
• Hardware Instructions(!!!)
• Atomic Variables

Hardware Instructions
1.Test-and-set
2.Compare-and-swap (x86 lock the bus)

Mutex lock/spinlock semaphore

busy waiting wastes CPU

多少进程跑多少进程sleep

Mutex/spinlock

• no blocking
• waste CPU on looping
• good for short CS

Semaphore

• no looping
• context switch is time-consuming
• good for long CS

Question1:18和21行的作用：保护mutex(14-15行spinlock)
Question2:21和22行能否交换：不能，否则会拿着锁sleep导致其他线程busy waiting
Question3:一个线程拿着锁sleep，其他线程会停在什么地方：14行，因而是busy waiting而不是sleep(14到18行也是个critical section)

Priority inversion

synchronization examples

考研题练习

Deadlock

Four conditions of deadlock occurence

• mutual exclusion:a resource cannot be shared
• hold and wait
• no preemption
• circular wait

prevention:打破条件
avoidance:计算safe state/resource allocation graph/Banker's algorithm
detection:find circle/Banker's
recovery:kill/preemption
