计算机系统III¶

体系结构 by Rui Chang
OS by Yajin Zhou

体系结构¶

Fundamentals of computer system Week1¶

Classes of computers(by Flynn)

SISD(single instruction single data stream):only in theory
SIMD(multiple):commonly used
MISD:only in theory
MIMD:current CPU

Classes of computers(in textbook)

desktop/personal
server:服务器 security
embedded:嵌入式 immediate response
personal mobile
supercomputer(peak performance + electricity -> cooling)

Performance
The performance(time) can be affected by:

Algorithm(time complexity)
Programming language,compiler,architecture
Processor and memory
I/O,OS

Measuring performance
- Single users on a PC
minimization of response time
minimization of execution time
- Large data
maximization of TP
- Response time
- Execution time(CPU time)
comprises of user CPU (execution) time and system CPU time

\(Performance = \frac{1}{Execution Time}\)
If X is n times faster than Y,then \(\frac{Performance_X}{Performance_Y} = \frac{Execution Time_Y}{Execution Time_X} = n\)

系统量化研究方法 Quantitative approach¶

CPU Performance \(CPU\ Execution\ Time = CPU\ Clock\ Cycles * Clock\ Period\)
\(CPU\ Execution\ Time = \frac{CPU\ Clock\ Cycles}{Clock\ Rate(freq)}\)
Performance improvement by

reduce number of clock cycles
increase clock rate
trade off clock rate against cycle count

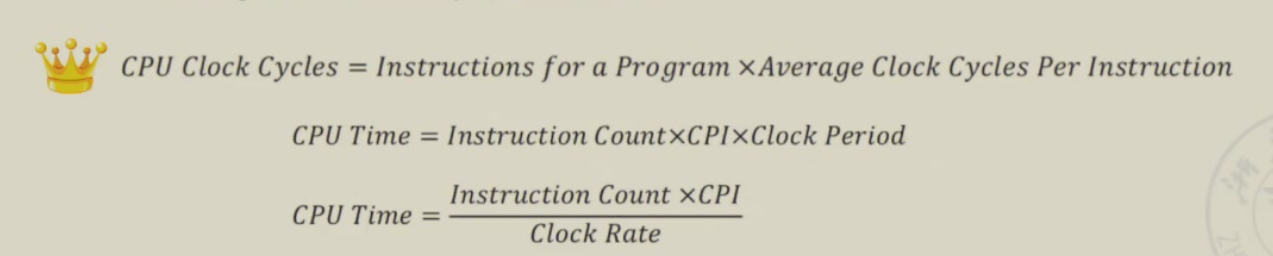

Average cycles per instruction(CPI)
\(CPI = \frac{CPU\ Clock\ Cycles}{Instruction\ Count}\)
alt text
\(CPU\ time = \frac{Instructions}{Program}*\frac{Clock\ Cycles}{Instructions}*\frac{Seconds}{Clock\ Cycles}\)

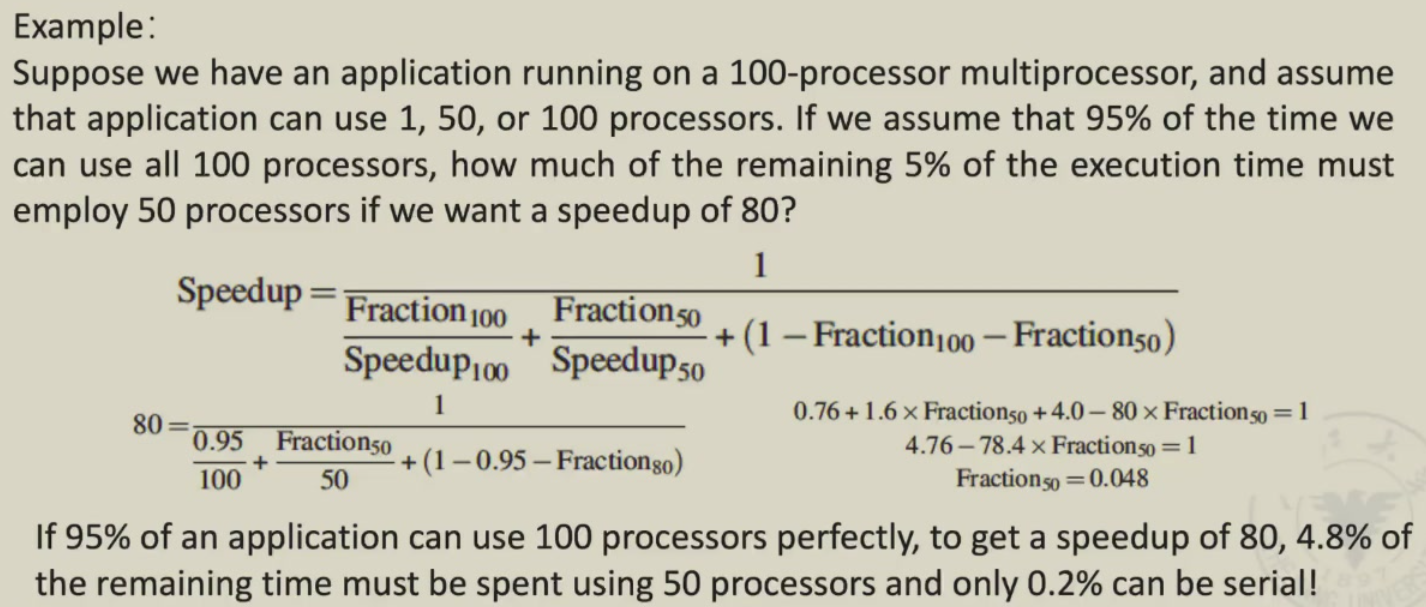

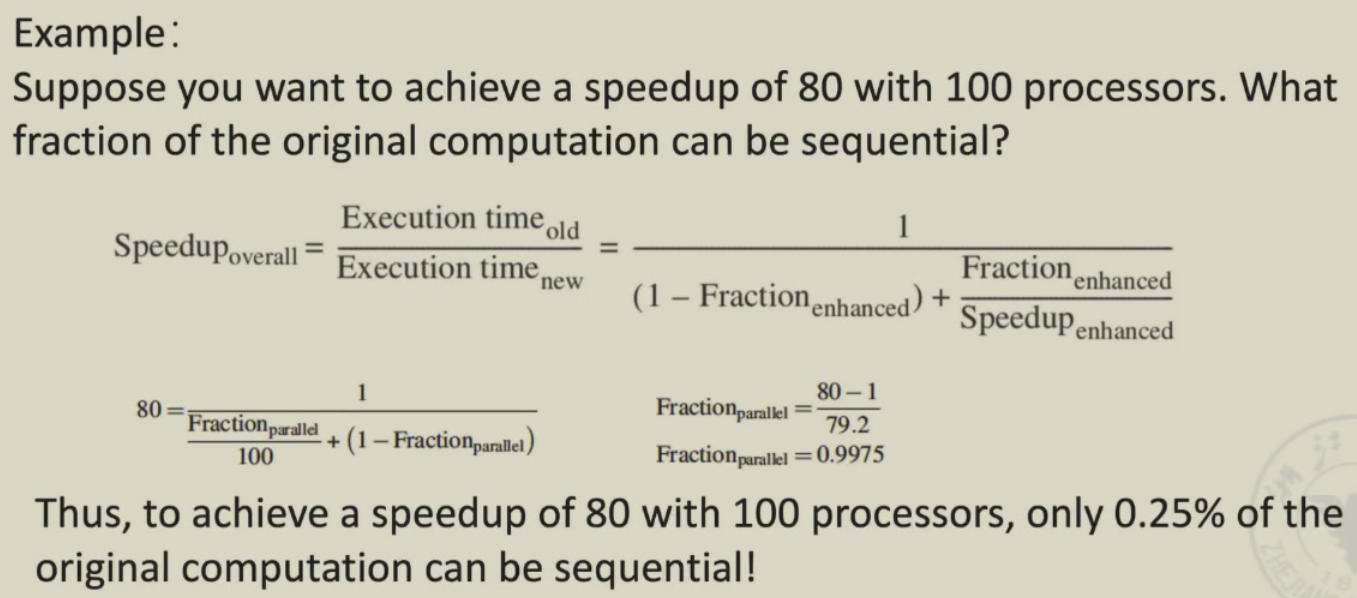

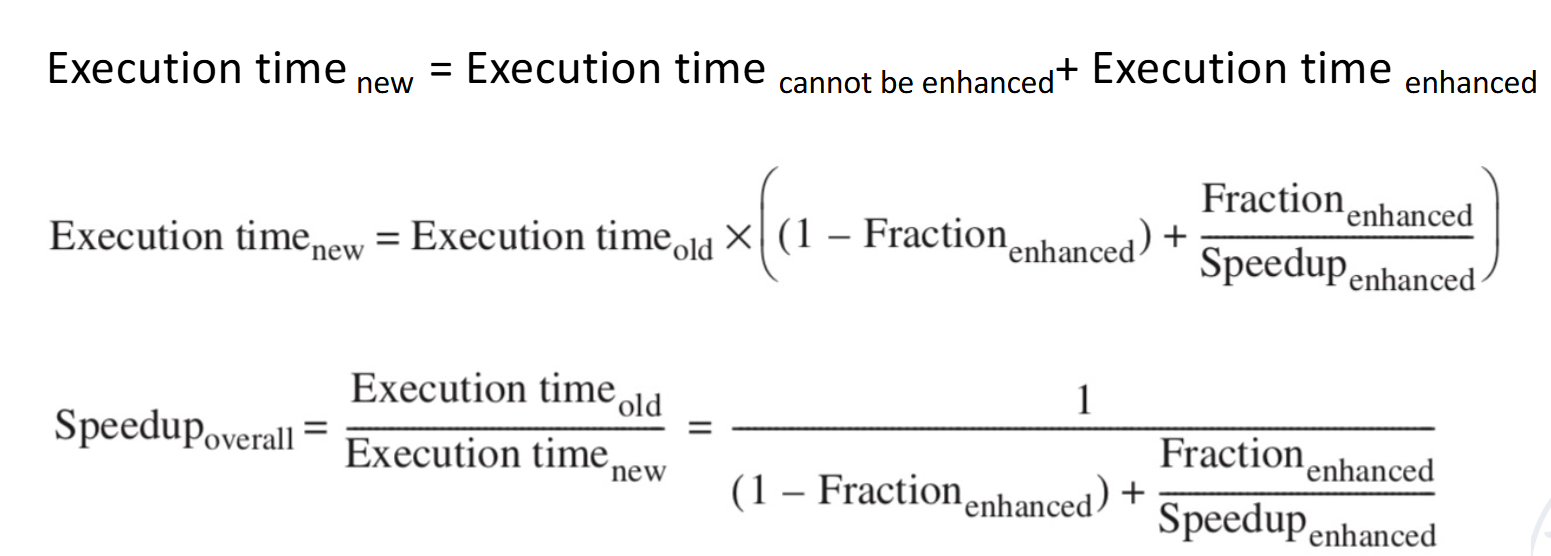

Amdahl's Law(性能优化)¶

\(Improved\ Execution\ Time = \frac{Affected\ Execution\ Time}{Amount\ of\ Improvement} + Unaffected\ Execution\ Time\)
\(T_{improved}=\frac{T_{affected}}{improvement\ factor} + T_{unaffected}\)

局部加速比:improvement factor
\(Speedup_{overall} = \frac{Performance\ for\ entire\ task_{using\ enhancement}}{Performance\ for\ entire\ task_{without\ enhancement}}= \frac{Total\ Execution\ Time_{without\ enhancement}}{Total\ Execution\ Time_{using\ enhancement}}\)

改进比例:\(fraction = \frac{Time\ can\ be\ improved}{Total\ Execution\ Time}\) alt text \(Speedup_{overall} < \frac{1}{1-Fraction_{enhanced}}\)

Great Architecture Ideas¶

Moore's law:number of transistors doubles every 18-24 months
Use abstraction to simplify design
Make the common case fast
Improve performance via parallelism
Improve performance via pipelining
Improve performance via prediction
Use a hierarchy(分级) of memories
Improve dependability(可靠性) via redundancy(备份)

Below the program:

parallel nature of processors
hierarchical nature of memories
compiler decisions

Instruction-Level Parallelism(ILP) Week2 - 3¶

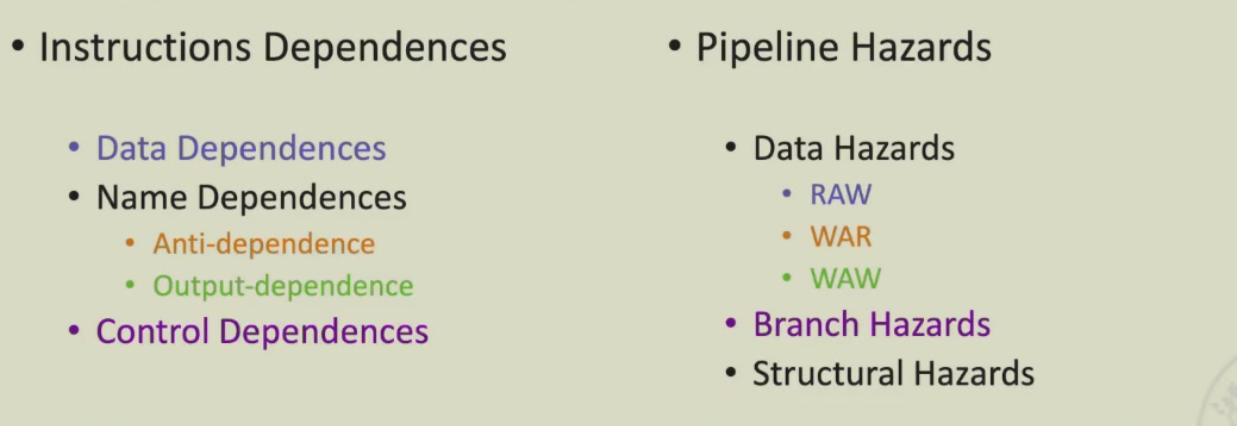

Dependencies

Data dependence(RAW-read after write)

Name dependence:rename

DIV F2,F6,F4
ADD F6,F0,F12
SUB F8,F6,F14
//anti-dependence(WAR)
DIV F2,F6,F4
ADD S,F0,F12
SUB F8,S,F14

DIV F2,F6,F4
ADD F6,F0,F12
SUB F2,F6,F14
//output-dependence(WAW)
DIV F2,F0,F4
ADD F6,F0,F12
SUB S,F6,F14

Control dependence:Branch hazards

alt text

Hazard

Structure hazard:add hardware
Data hazard:Forwarding + stall/scheduling
Control hazard:branch prediction

Branch prediction¶

static:任选
dynamic:BTB

Delay slot:forbidden by RISC-V due to prediction

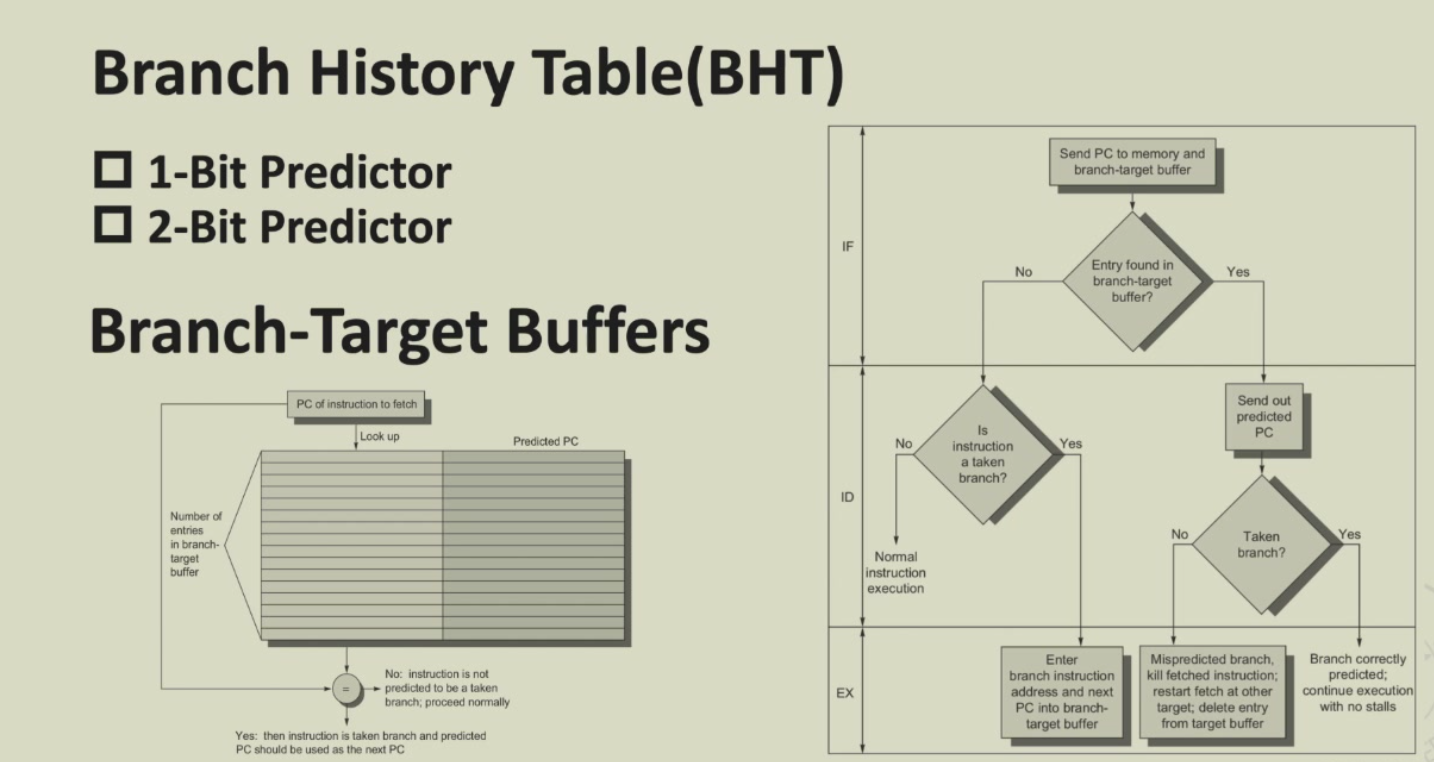

Dynamic branch prediction
1.Branch History Table(BHT):2-Bit predictor
2.Instruction/Data-read/Data-write buffer(Branch-Target Buffer(BTB) in prediction)
alt text

Dynamic Scheduling¶

simple pipelining has the limitation:

In-order

DIV F4,F0,F2
SUB F10,F4,F6
ADD F12,F6,F14//waiting without data dependencies

Scoreboard¶

Scoreboard algorithm is an approach to schedule the instructions.

recall:hazard detection in ID
split ID into two parts:IS(issue) & RO(read operands)
IS:check structural hazards(in-order)
RO:check data hazards(out of order)
cannot flow to IS/RO if a certain hazard exists

1.LD  F6,34(R2) //integer unit
//assume the first inst has been completed
2.LD  F2,45(R3) //integer unit structural hazard
3.MUL F0,F2,F4  //F2 F8 F0 F6 data hazard
4.SUB F8,F6,F2
5.DIV F10,F0,F6
6.ADD F6,F8,F2

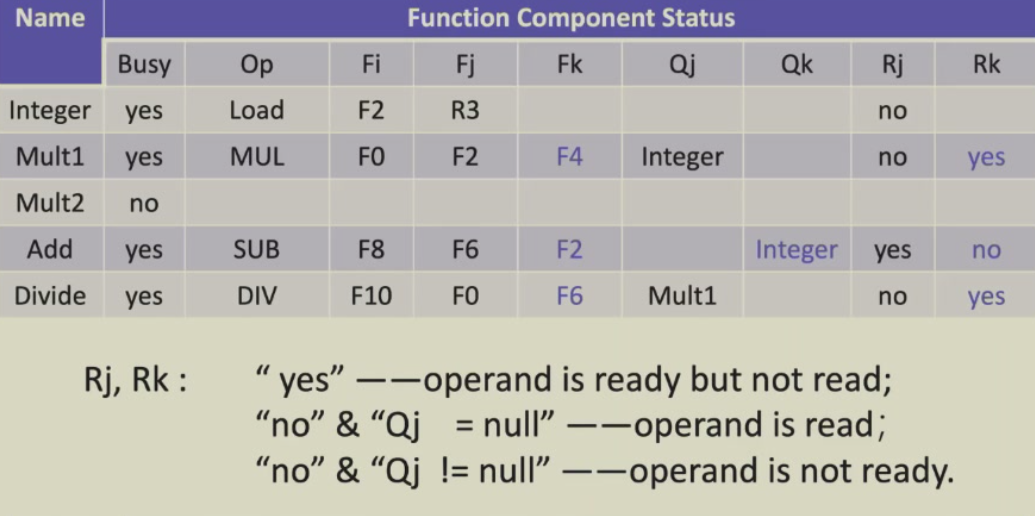

info table design

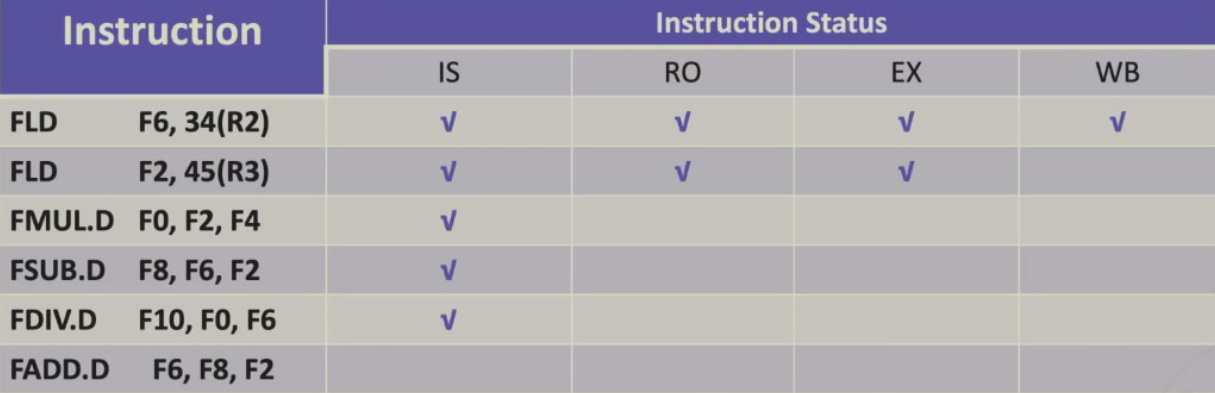

Instruction status table
Function component status table
只有在某条指令执行WB后清空该指令使用的部件的一行，下一个要使用这一部件的指令才能进入IS阶段
Register status table note that register status can be read from function component table,register status table is created just for convenience.

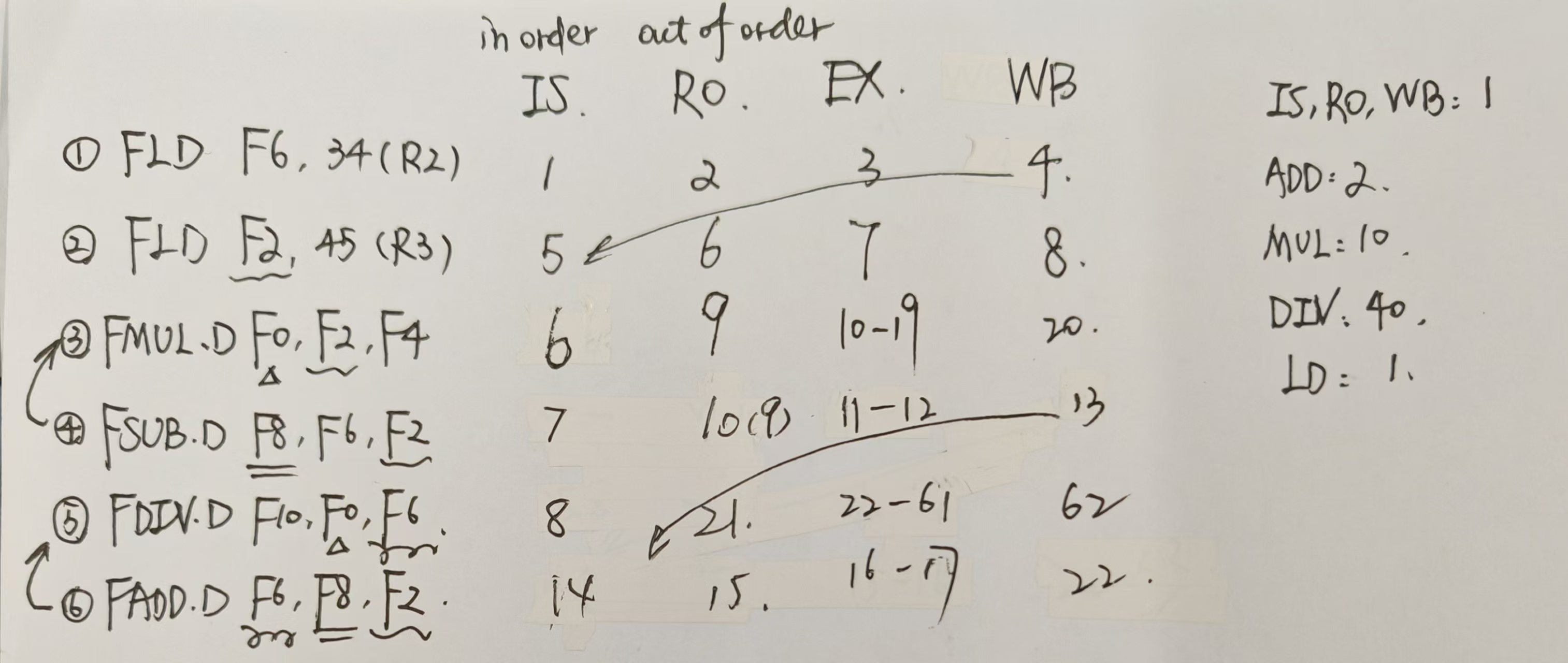

In-class practice: alt text

Tomasulo¶

Tomasulo's approach is to introduce register renaming in hardware to minimize WAW and WAR hazards.

1.LD  F6,34(R2)
2.LD  F2,45(R3)
3.MUL F0,F2,F4
4.SUB F8,F6,F2
5.DIV F10,F0,F6
6.ADD F6,F8,F2

Reservation Station(RS保留站):防止因硬件冲突导致指令无法流入(上例中的4.SUB与6.ADD),在RS中执行乱序
Command Data Bus(CDB):将指令需要的值替换为保留站的结果(6.ADD中F8的值即为adder RS的结果,保留站的名称替代了寄存器的名称),通过广播的方式使结果分布控制
执行阶段简化为IS,EX,WB三阶段,没有解决顺序写回的问题
IS:检查保留站是否还有空位 EX:保留站中乱序执行,如果操作数未全部ready则等待,操作数已经ready的先执行
WB:CDB同时将结果写入寄存器和需要的RS

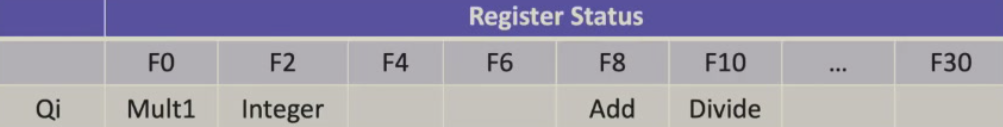

Register status Qi记录寄存器与RS的对应关系
Instruction status table,Function component status table,Register status table(Field Qi) are still needed.

Limitation:

Structual complexity
performance limited by Common Data Bus
correctness not guaranteed

The limitations on ILP approaches directly led to the movement to multicore.

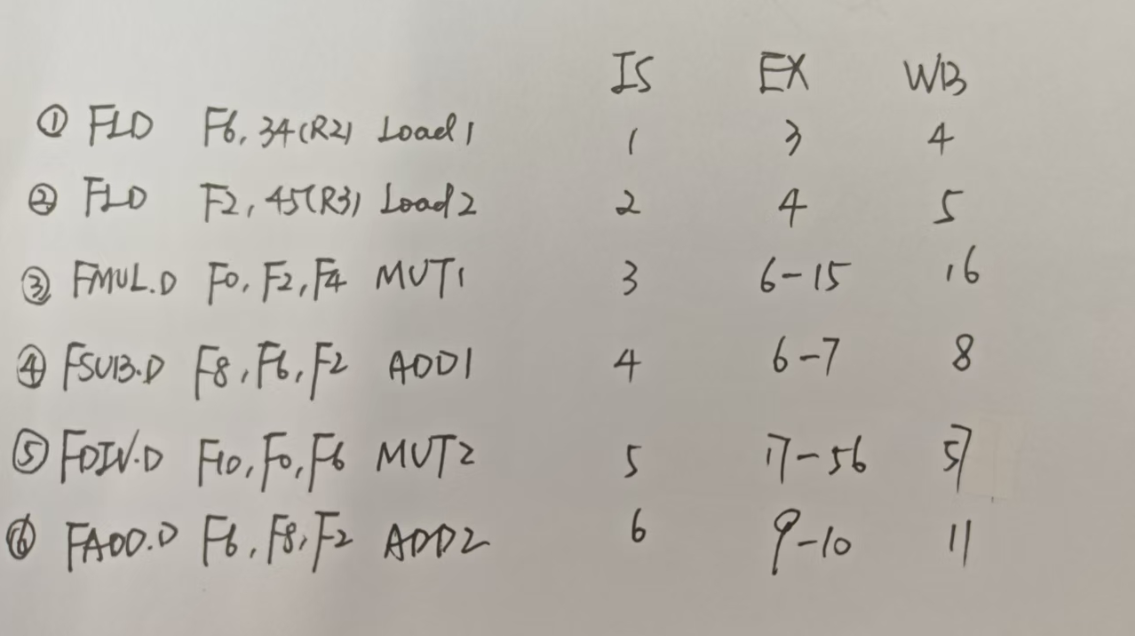

In-class practice: alt text

Instructions come out in order:Waiting sofa(buffer)

Hardware-Based Speculation 硬件前瞻¶

Reorder buffer(ROB) before writing back to registers
Why reorder?
For debug and consistency
extend the stages of every instruction into:IS,EX,WB,Commit
Commit:In-order write back —— the key of speculation

Function component status table:ROB No. in column dest in
ROB table:the current stages of the relevant instructions
Register status table:ROB row shows the registers to be written and the corresponding ROB No.

In-class practice:前三列同Tomasulo
Commit列:5,6,17,18,58,59

60个周期的表格变化，每个格子会填会算

Precise exception
easily extend to other(e.g. integer)units
complex hardware(CDB)

Exploiting ILP Using Multiple Issue and Static Scheduling¶

n-issue Superscalar
VLIW
Super pipeline

Dynamic scheduling is more dependent on hardware,while static scheduling may not.

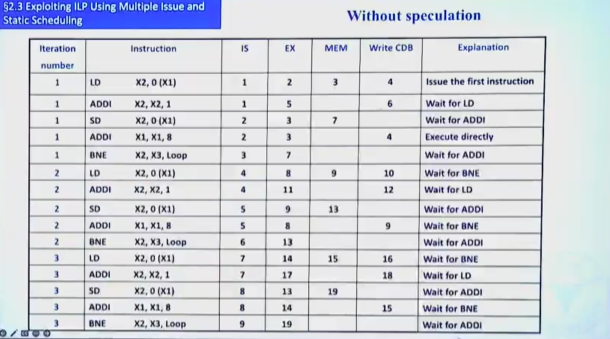

Multi-issue based on dynamic scheduling: 双流入流出Tomasulo:
alt text

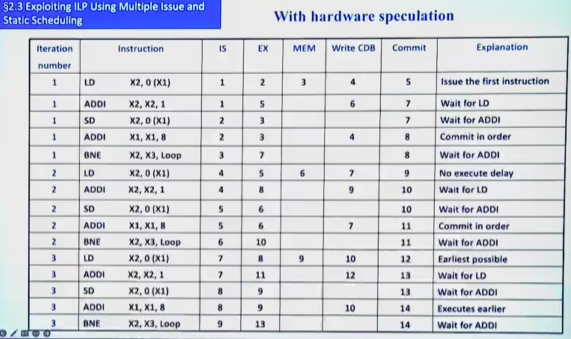

bottleneck:data-dependent branches & ALU With Speculation:

前瞻执行：不需要等待分支结果，因为不一定要提交
Branches are a critical performance limiter(especially with data-dependent ones),but speculation helps.

VLIW¶

operation slots
parallel execution in EX

Loop:fld    f0,0(x1)
     fadd.d f4,f0,f2
     fsd    f4,0(x1)
     addi   x1,x1,-8
     bne    x1,x2,Loop

指令乱序/循环展开

code length increases
lockstep mechanism
machine code incompability

Superpipeline¶

IF IS RF EX (DF DS TC) WB

Memory Hierarchy(Cache) Week4 - 5¶

Introduction¶

Registers
Cache
Memory
Storage
Mechanical memory
Electronic memory
SRAM:static random access memory(Cache) DRAM:dynamic ~(Main memory) DDR2(double data rate上升沿和下降沿都能传数据),DDR3,DDRSDRAM Flash ROM:read-only memory PROM,EPROM
Optical memory

Temporal/Spatial locality时空局部性

Cache:a safe place for hiding or storing things.

hit/miss:whether the processor can or cannot find a requested data in the cache
hit rate/miss rate/hit time/miss penalty

Block run:A fixed-size collection of data containing the data we need retrieved from the memory
Spatial locality:likely need other data within the same block soon

Technology Trend¶

SRAM DRAM SDRAM(Synchronous DRAM) DDR SDRAM HBM:High Bandwidth Memory DRAM SSD HDD/TAPE

Memory Hierarchy¶

Cache Miss¶

Latency:the time to retrieve the first word of the book
Bandwidth:the time to retrieve the rest of the book

Miss causes

Compulsory:first reference(cache is empty)
Capacity:blocks discarded and later retrieved
Conflict:program makes repeated references to multiple addresses from different blocks that map to the same location in the cache

desktop users:average latency
server:memory bandwidth(multiple users)
embedded:power and battery life/real-time response/small memory

Everything is a cache.
Registers -> L1-Cache -> L2-Cache -> Memory -> Disk

Cache Size = Block Size * Sets + Related info(Indexes)

Cache Design¶

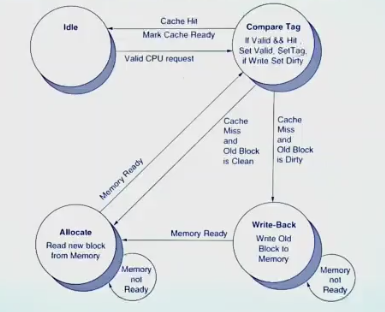

Using a FSM to control a simple cache
next-state function determines the state transition
alt text
write through写直达:write back to both cache and memory

1.Where can a block be placed in the upper level?(Block placement)¶

Direct mapped¶

(Block address) modulo (Number of blocks in the cache):循环分配
e.g.Cache number = 8(0-7)
Memory 1,9,17,25 -> Cache 1
[Problem]low space usage & high conflict probability

Fully associative¶

Block can go anywhere in cache

n-way Set associative¶

Each memory block maps to a cache group(n cache blocks in each group) and put memory block into certain cache block in casual
for most caches:n <= 4

2.How is a block found if it is in the upper level?(Block Identification)¶

Every block has an address tag that stores the main memory address of the data stored in the block valid bit
index selects the set/block direct map:tag + set index + offset
hit if valid_bit == 1'b1 && tag == mem_addr

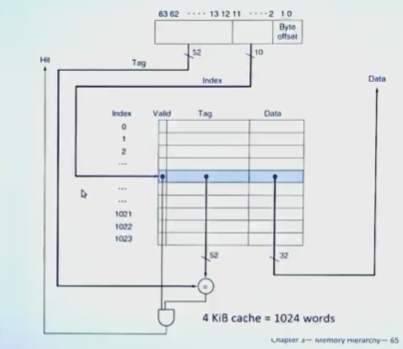

Cache Size calculation¶

alt text
The size of the block is One word(4 bytes)
64-bit addresses
2ⁿblocks(n bits for the index)
block size = 2^mwords
tag = 64-(n+m+Byteoffset) = 64 - (10 + 0 + 2) = 52
Byteoffset = log₂block size(in bytes) = 2
cache size = 2ⁿ * (block size + tag size + valid size) = 2¹⁰ * (2⁰ * 32(bits/word) + 52 + 1) = 85Kib.

E.g.How many total bits are required for a direct-mapped cache with 16KiB of data and four-word blocks,assuming a 64-bit address? ANS:16KiB = 4096words = 2¹²words
block size is 4 words = 2²words,m=2
2¹²/2² = 1024blocks,n=10
data = 4 * 32(bits/word) = 128 bits(16Bytes * 8)
tag = 64-(n+m+2) = 50 bits
note:64-bit address = 50-bit tag + 10-bit index + 2-bit word offset + 2-bit Byte offset 映射到缓存块
Cache Size = 2ⁿ*(block size + tag size + valid size) = 2¹⁰ * (128 + 50 + 1) = 179Kib = 22.375KiB

E.g.Consider a cache with 64 blocks and a block size of 16 bytes. To what block number does byte address 1201 map?
1201 / 16 = 75(1200-1215 in the same block)
75 modulo 64 = 11

3.Which block should be replaced on a cache/main memory miss?(Block Replacement)¶

No selection is needed for direct map
Handle cache miss:
1.send PC to memory(PC - 4)
2.main memory perform and wait
3.write the cache entry
4.restart inst execution(refetch)
In set-associative and fully-associative,N blocks to choose for replacement.

Random¶

LRU¶

Least-Recently Used(LRU):assumed more recently accessed blocks more likely to be referenced again
use extra bits to keep track of accesses

FIFO¶

First In,First Out(FIFO)

OPT(In theory)¶

Replace the one with the latest use in the future
Thrashing:Loop access sequence causes no hit for FIFO/LRU
Block Size affects the performance greatly

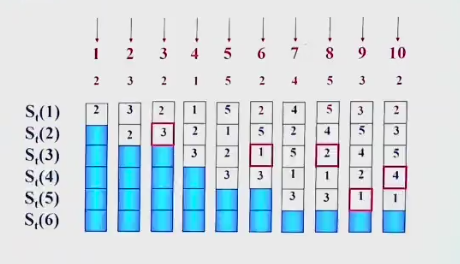

Stack replacement algorithm¶

B_t(n) represents the set of access sequences contained in a cache block of size n at time t.
B_t(n) is the subset of B_t(n+1).
LRU is a stack replacement algorithm.
FIFO is not a stack replacement algorithm.(Belady)
Least-Recently Used is pushed to the bottom of the stack
alt text

Implementation¶

Comparison pair flip-flop
e.g.three cache blocks(A,B,C)
take pair AB,AC,BC
T_AB:A is accessed later than B
T_AB,T_AC,T_BC represents the sequence of access by applying triggers and gates
huge block number:Layered comparison

4.What happens on a write?(Write Strategy)¶

When data is written into the cache,is the data also written to main memory?
Write Through

can always discard cached data
only a valid bit
memory always have the latest data

Write Back

can't discard
valid bit and dirty bit(cache与memory不一致)
much lower bandwidth

Write hit write buffer(write through) Write miss

write allocate block is loaded into the cache(write back)
write around block is only written to main memory(not stored in the cache)

Read allocate memory -> cache
read from cache Read through
E.g.Assume a fully-associative write-back cache(empty)
What are the number of hits and misses using no-write allocate vs. write allocate?
no-write allocate

write Mem[100];  //miss ,not write to cache
write Mem[100];  //miss ,not write to cache
read Mem[200];   //miss ,read into cache
write Mem[200];  //hit
write Mem[100];  //miss ,not write to cache

write allocate

write Mem[100];  //miss write to cache
write Mem[100];  //hit
read Mem[200];   //miss ,read into cache
write Mem[200];  //hit
write Mem[100];  //hit

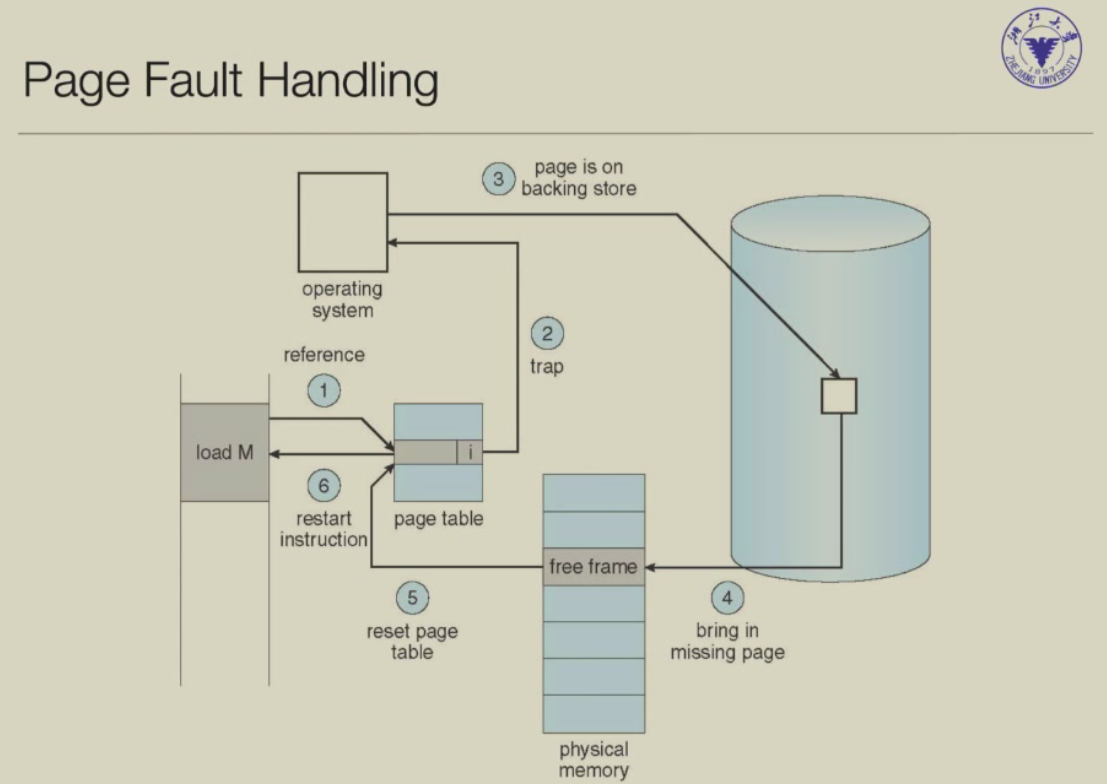

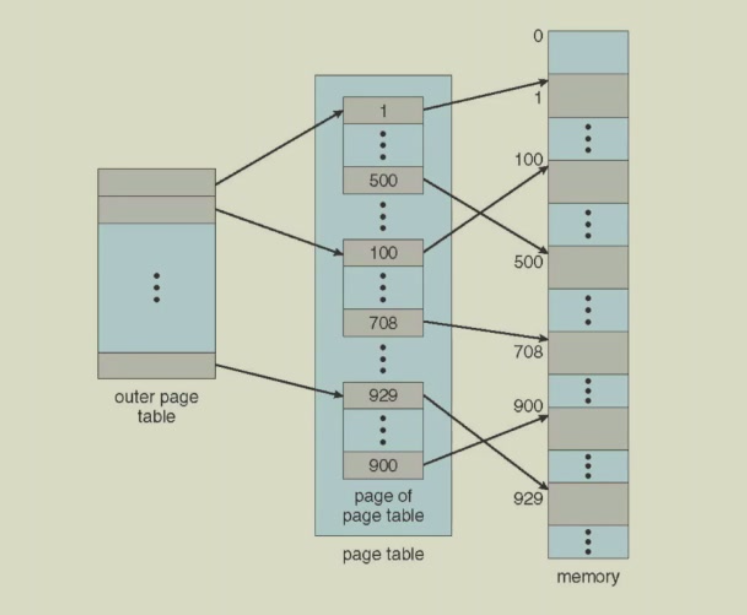

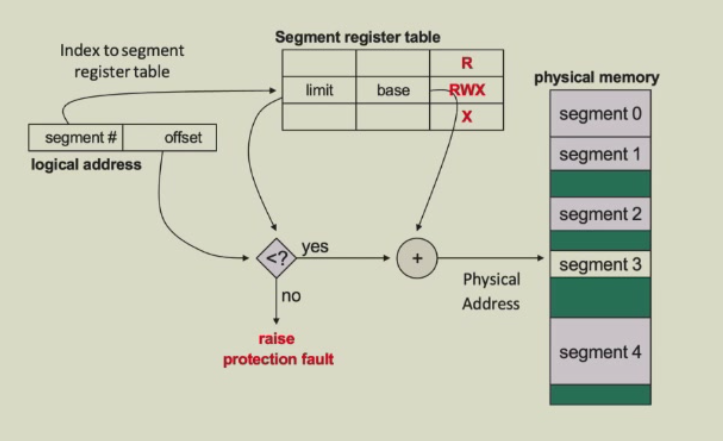

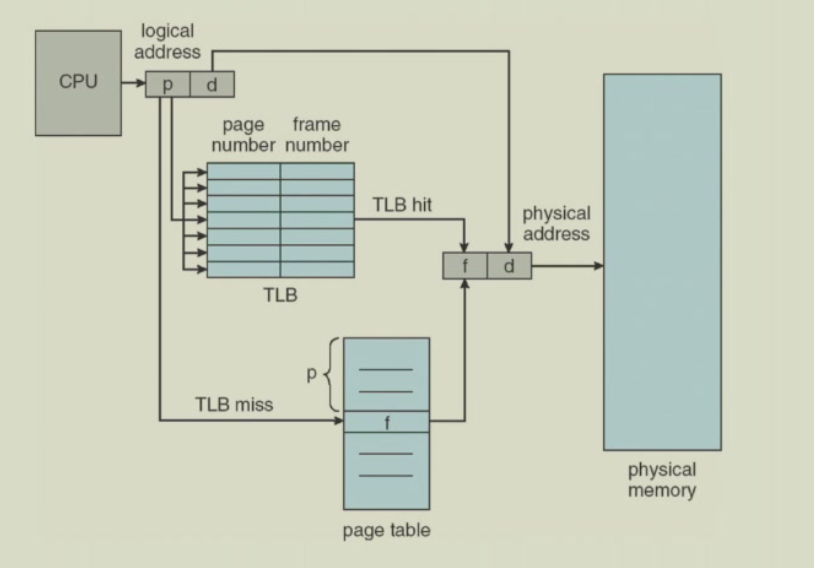

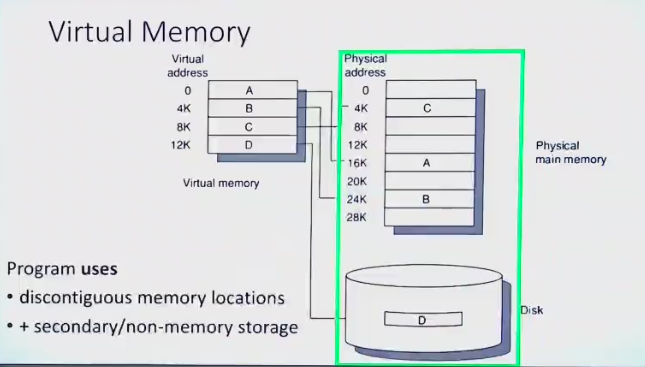

Virtual Memory¶

alt text

Memory System Performance¶

Memory Stall
Average Memory Access Time(AMAT) \(AMAT = (HitTime + MissRate * MissPenalty)\) E.g.Impact on performance

*CPU Vulnerability¶

Meltdown¶

利用Intel CPU乱序执行，利用内存响应时间越界访问

Spectre¶

利用Cache预取指令获取私密信息

Cache Optimization presentation Week 6¶

OS¶

Main Memory Week7 - 10¶

Partition¶

using physical memory
multi-programming:partition
protection,fast-execution,fast context switch
Once process starts,partition cannot be moved
Solution:logical address(offset within the partition相对地址)
Simple implementation:base and limit(length) registers(privileged)
between base and base + limit:segmentation
limit check for protection

built-in protection
fast execution(hardware)
fast context switch(only change base and limit)
norelocation of program address
partition can be suspended and moved at any time

Memory allocation strategy¶

fixed
same size causing Internal Fragmentation(分配的用不完)
variable External Fragmentation(有空process但放不进)
first-fit,best-fit,worst-fit

Segmentation¶

.text,.data,... have different authority,can they be put into the same partition?
No,we map one process to n partitions(each is called a segmentation)
[Problem] Insufficient base and limit registers
[Solution] Segment table:an array where each entry has base and limit and perm(permission)
Every process has a segment table
Only a base register is needed to point to the segment table
Every entry represents a segmentation
logical address now is a pair:
alt text
limit can be changed,therefore it is a variable allocation,no internal fragmentation but external fragmentation
Segmentation is used effectively in Unix(before paging because of small amount of additional hardware)
address binding
source code(symbolic) -> compiler(relocatable) -> linker(absolute)
Memory-Management Unit(MMU):a translator from logical addr to physical addr

Paging¶

basic idea:cut the process,making it noncontiguous(avoids external segmentation)
divide physical addr into fixed-sized blocks called frames(帧)
divide logical(virtual) addr into blocks of same size called pages
Set up a mapping to translate logical to physical addr,this mapping is called page table(index page,value frame)(not stored in the pages)
Internal fragmentation
fixed length partition
page size:2048,program size:72766(35 pages + 1086bytes)
internal fragementation = 2048 - 1086 = 962
Nowadays,the page size is getting bigger because we allow waste in memory(memory is cheaper)
frame table:which frame is free,how many frames have been allocated,... helps OS manage physical address
logical addr =
m-n bits for page_number,n bits for page_offset
m = 32 or 64,n = log₂(page_size)
x86:2³² = 4GB

Implementation¶

Page-table base register(PTBR),Page-table length register(PTLR)
[Problem] Access page table to find frame number needs one memory access while actually read the data in memory needs another memory access
[Solution] cache the translation to avoid one memory access(TLB:Translation Look-aside Buffer)
hardware implementation:associative memory
tag TLB entries with address-space identifier(ASID)that uniquely identifies a process when context-switch
Associative memory supports parallel search
alt text
Effective Access Time EAT = hit_ratio * memory_access_time + (1 - hit_ratio) * 2 * memory_access_time
In modern design,hit_ratio is approximately 99.9%
Increase the page size helps improve the hit ratio(memory_access_size = TLB_size * page_size)
Memory Protection
present(valid) bit and permission bits in page table
Page Sharing
Run a program multiple times:.text can be shared but .data cannot be shared

Structure¶

[Question] 32-bit logical address space & 4KB page size,what is the page table size?
4GB/4KB = 1M entries(page table lines)
1M * 4B = 4MB(must be physically contiguous because another table needed for mapping if page table is splited)
If we have 1K processes,simply page tables occupies the whole memory
[Insights] Many indices are invalid
[Solution] break down page table into pages
Page size is 4KB,how many entries can fit in one page?
one entry is 4B,thus we have 1K entries/page
1M entries can be broken down to 1K pages,indexed by 1K entries,put into another page(4KB)
alt text
[Advantages] Pages don't need to be contiguous,and no page allocated if invalid in the first level
logical addr = 12-bits offset:4K(Page size)(stored in the last-level pages)
10-bits page_directory_number and 10-bits page_table_number:1K entries per table
If page size is 64KB,we have 16-bits offset,14-bits page_table_number and 2-bits page_directory_number
Page Table in Linux:page table base register CR3(arm:TTBR,RISCV:SATP,x86:PDBR)(store physical addr,otherwise another table for mapping is needed) 64-bit logical address space:16EB(4G * 4GB)
Page table entry:8B page table size:4KB
Entry number/page = 512
3-level page:12 + 9*3 = 39bits(512GB Phone)
4-level page:48bits(256TB Server)
5-level page:57bits(128PB AI)
PTE,PMD,PUD(upper),P4D,PGD(global directory)

Hashed page table¶

virtual page number is hashed into frame number
using linked list if two page number has the same hash value
high collision probability & need contiguous addr

Inverted page table¶

[Insights] physical addr space << virtual addr space
[Solution] index by physical addr
Each entry has a pid and virtual page number
need traverse the whole page table & no memory sharing

Swapping¶

[Definition] extends physical memory with backing disks(用硬盘换内存)
Context switch becomes veryvery slow
Swapping is unfriendly to SSD/flash memory
Android terminates apps if low free memory
Intel IA-32 Page Address Extensions(PAE):page table entries to 64bits,but 2-bits for a 4 entry table
Intel IA-64 6 segmentations
ARM:no segmentations

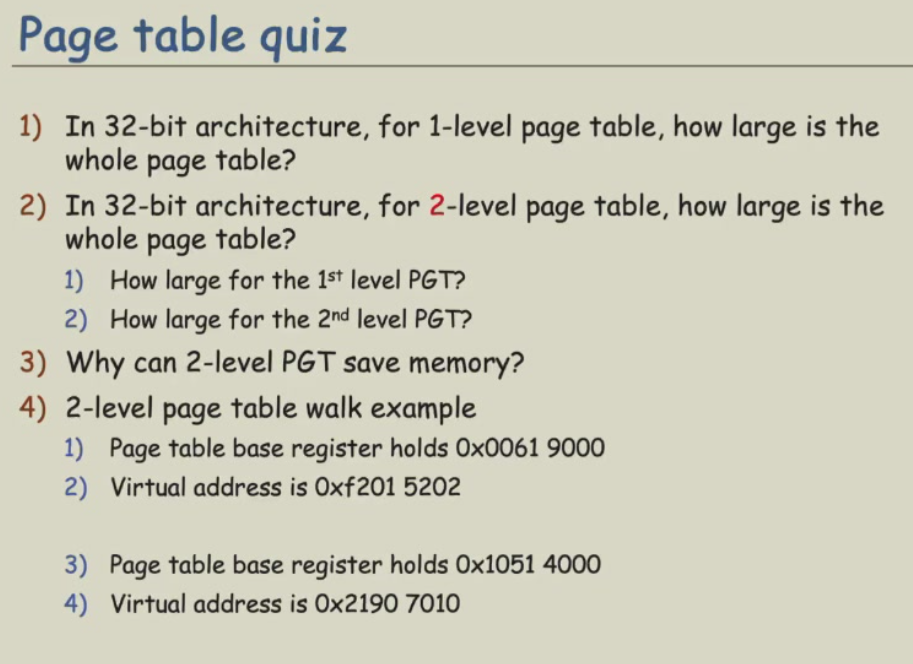

Practice¶

alt text
1)4GB/4KB = 1M entries,1M * 4B = 4MB
2)1ST:4KB,2ND:1K * 4KB = 4MB
3)Pages don't need to be contiguous,and no page allocated if invalid in the first level
4)10-bits page_directory_number,10-bits page_table_number,12-bits offset
0xf2015202 = 0b1111001000|0000010101|001000000010(968,21)

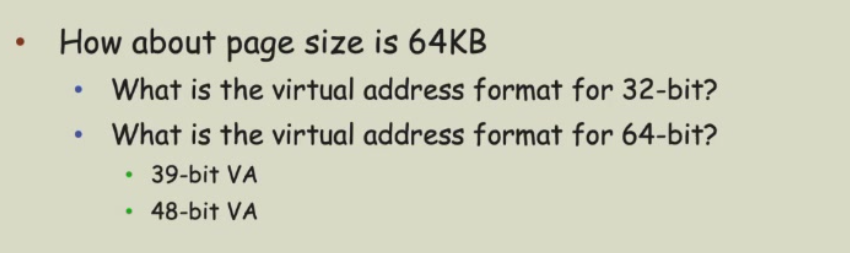

alt text
32-bits:2+14+16
39-bit VA:10+13+16(减少一级)
48-bit VA:6+13+13+16

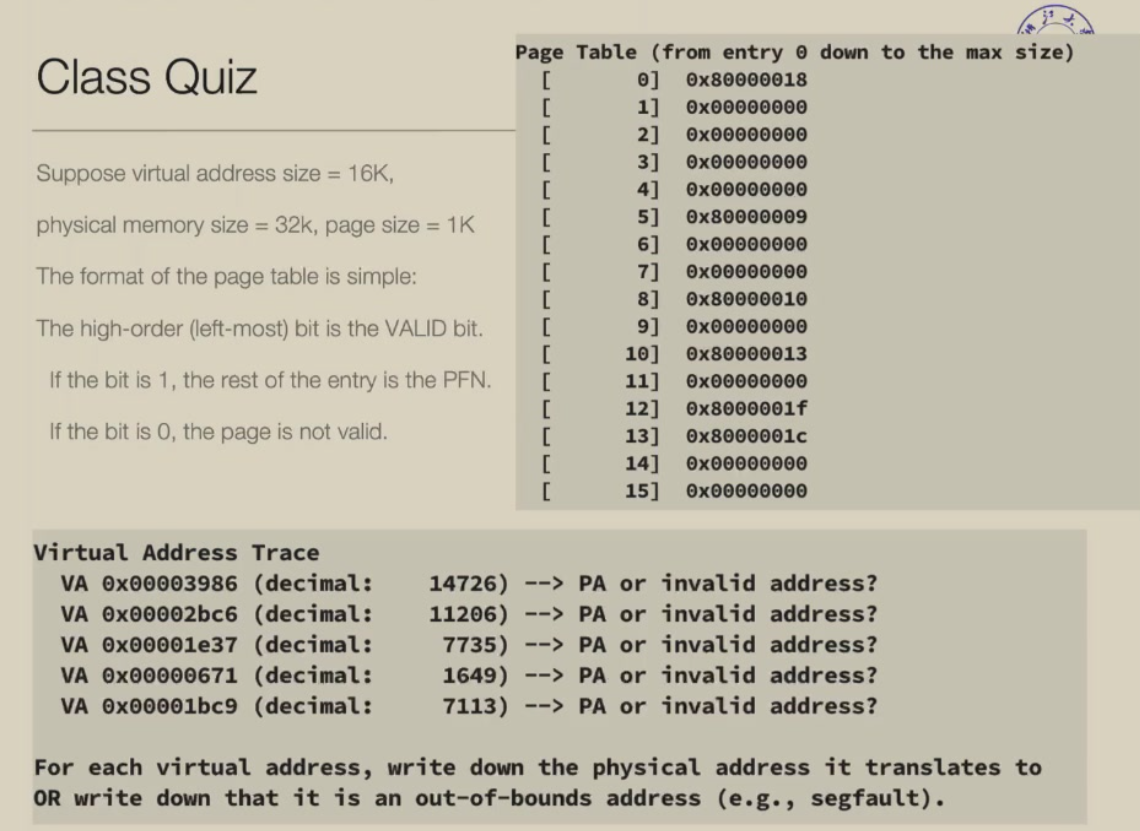

offset:log₂(page_size) = 10 page_number:32-10 = 22 0x00003986:0b0000000000000000001110|0110000110
page_number:14 invalid
0x00002bc6:0b0000000000000000001010|1111000110
page_number:10 offset:0x000003c6
addr = 0x13 << 10 + 0x000003c6(低10位)

Virtual Memory¶

[Insights]Code needs to be loaded to memory in execution,but the entire program is rarely needed at the same time
[Solution]partially-loaded program
demand paging:brings a page into physical memory only when accessed
lasy swap:never swap a page unless accessed
pre-paging:predict pages may be accessed later
invalid -> page fault

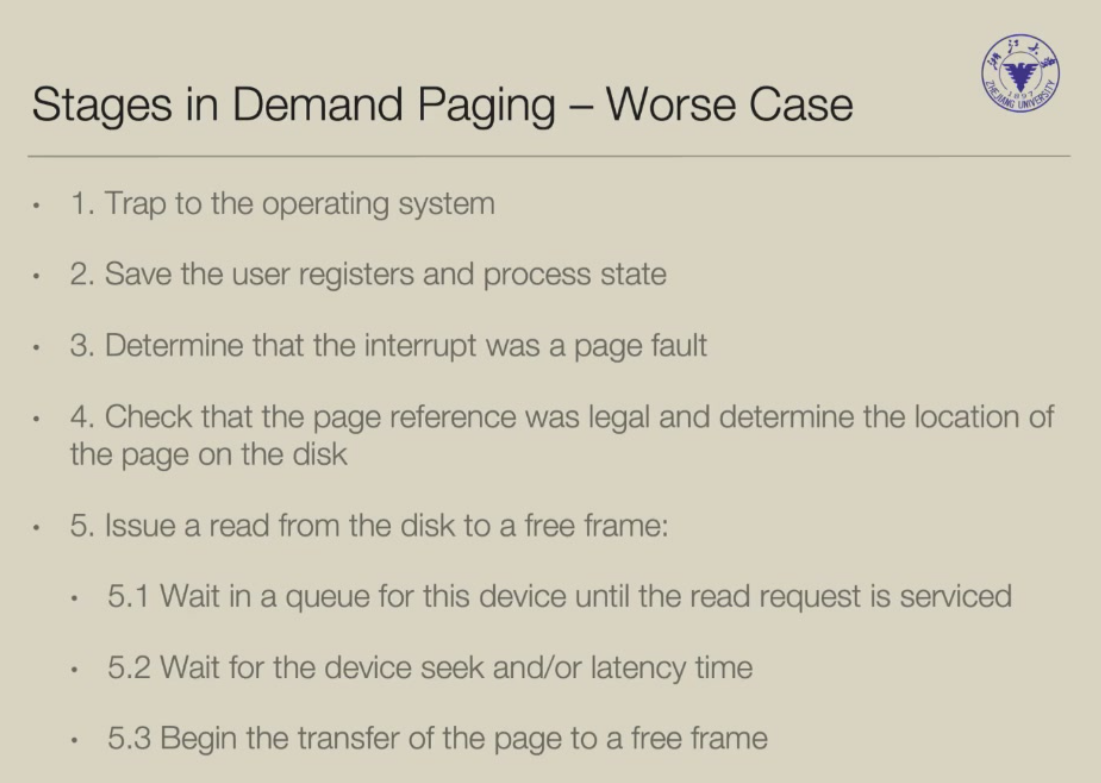

Page fault¶

(1)invalid reference -> exception
(2)valid reference but not in memory -> swap in

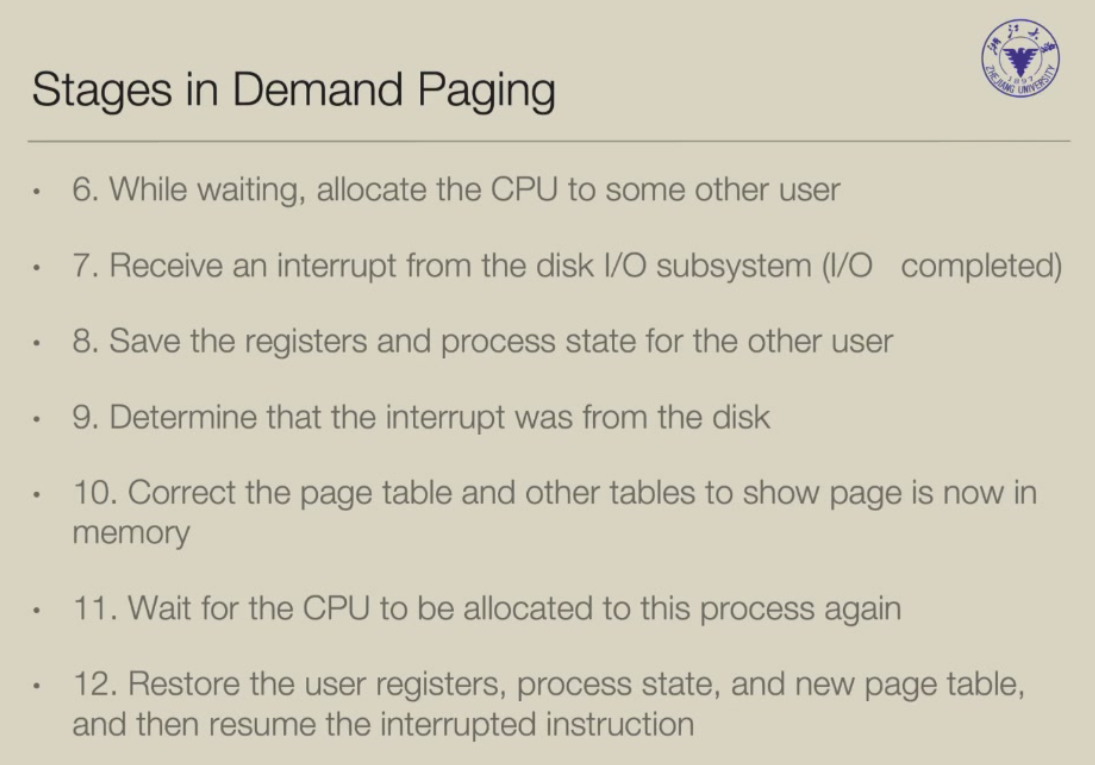

page fault handling

get an empty physical frame
swap page into frame via disk operation(maintained by free-frame list)
set page table entry to indicate the page in memory
restart the instruction

tell OS to map by syscall(brk,mmap),not actually allocation until demand
alt text

allocate free frames using zero-fill-on-demand

EAT:page fault rate:p
EAT = (1-p) * memory access time + p * (page fault overhead + swap out + swap in + instruction restart overhead)
Copy-on-Write(COW):allows the parent and child processes(fork()) to initially share the same pages in memory as long as no process modify(write) it.
If either process writes the COW page,OS copies the page and set the page writable
Page replacement:no free page when needed
[Solution] swap out some pages to swap分区
[Question] How to select victim page to avoid thrashing?
Dirty bit:whether the page is modified after loaded?
We can directly replace the pages if not dirty
page fault handling with replacement

find the location of the desired page on disk
find the free page
if there is a free page,use it
if there is none,pick a victim frame if the frame's dirty,write to the disk
update the page table
restart the instruction

potentially 2 page I/O for one page fault
Page replacement algorithm:FIFO,optimal,LRU,LFU,MFU
For FIFO,adding more frames may cause more page faults(Belady's anomaly)(not stack replacement)
(Enhanced) Second-Chance Algorithm:take order pair(reference,modify(dirty))(0,0 > 0,1 > 1,0 > 1,1)
Page-Buffering Algorithm:always keep a pool of free frames

Allocation¶

Fixed(Local) allocation per process
Global allocation
Reclaiming pages
memory below minimum threshold:choose process to kill according to OOM scores
Major page fault:page is referenced but not in memory
Minor pape fault:mapping does not exist,but page in memory
shared library
reclaimed and not freed yet
Non-Uniform Memory Access(NUMA):speed of access to memory varies(multi-core and multi-core-correspond-memory)
allocating memory "close to" the CPU by scheduler

Thrashing¶

[Definition] a process does not have enough pages,causing higher page fault rate,page fault to get page,existing existing frame,but quickly need replaced frame back,thereby a process is busy swapping pages in and out
Why does thrashing occur?total size of locality > total memory size
[Solution] 1.using local or priority page replacement(one process thrashing does not affect others)
2.provide a process with as many frames as it needs
Working-set Model
Working-set window(Δ):a fixed number of page references working set of process p_i(WSS_i):total number of pages referenced in the most recent Δ
total working sets:D = ΣWSS_i,monitor the total working set by suspending and swapping out to make D < m
[Challenge] keep track of the working set
[Solution] page-fault frequency(PFF) to check the pressure of process memory,swap out a process is PFF is too high

Kernel Memory Allocation¶

allocated from a free-memory pool
for device I/O,kernel memory needs to be physically contiguous
Buddy System:memory is allocated in units of the size of power of 2
split the unit into two buddies until a proper sized chunk is available
E.g.256KB is available,21KB is requested
256KB -> 128KB -> 64KB -> 32KB = 21KB_round_up

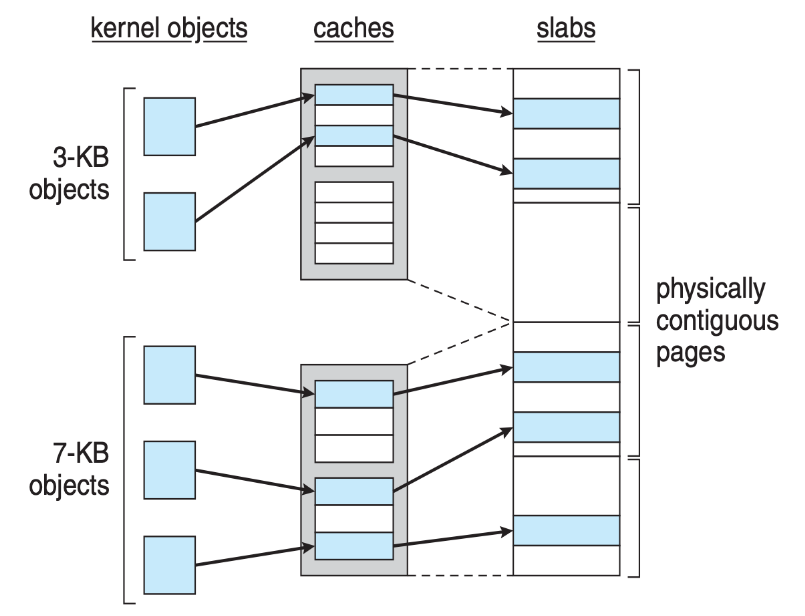

Slab Allocator:a slab contains one or more pages,divided into equal-sized objects
a cache in a slab allocator consists of one or more slabs
fast small kernel object allocation and small internal fragmentation,object fields may be reusable,no need to initialize again
alt text
kmem_cache -> slabs_full/partial/empty -> slab -> page -> object
kmalloc() -> small object using slab/huge object using buddy system:ensuring contiguous PA
vmalloc()(similar to malloc() in user space):huge space requirement but no need contiguous PA

Other considerations¶

Prepaging Page Size(and reason)

Fragmentation:small page size
Page table size:large
Number of page faults:large
TLB(page table entry cache) size:large
Locality:small
I/O overhead:large(every page fault needs an I/O)
always a power of 2
growing over time

TLB Reach:the amount of memory accessible from the TLB
TLB Reach = TLB size * page size
Program structure
int[128,128],each row is stored in one page,and only one entry in the TLB

for(j = 0; j < 128 ; j++)
  for(i = 0; i < 128; i++)
128*128 = 16384 page faults
for(i = 0; i < 128 ; i++)
  for(j = 0; j < 128; j++)
128 page faults

I/O interlock:pages that are used for copying a file from a device must be locked from being selected for eviction

*Free Space Management¶

In virtual memory space,

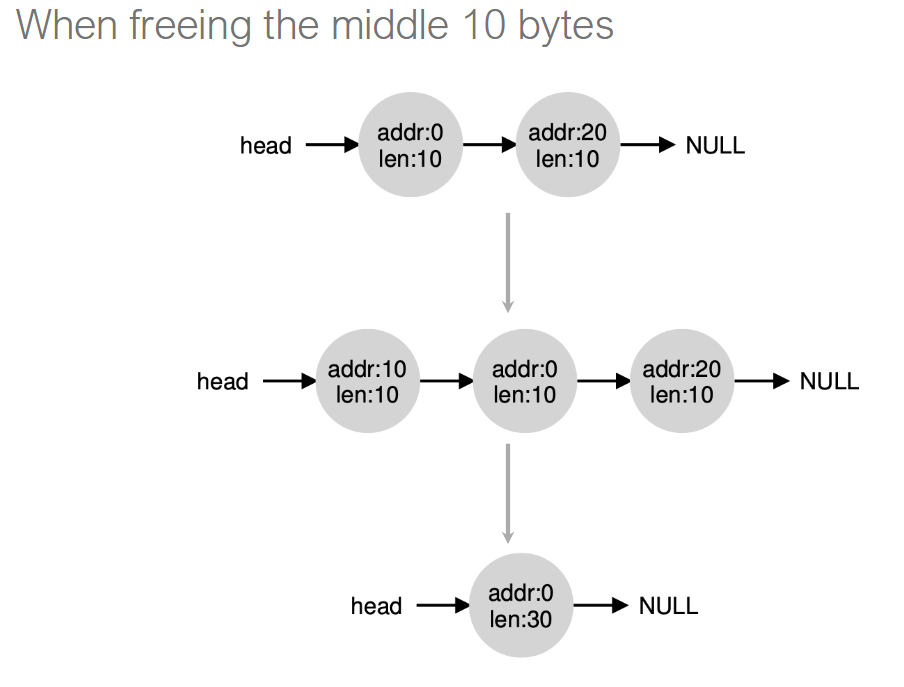

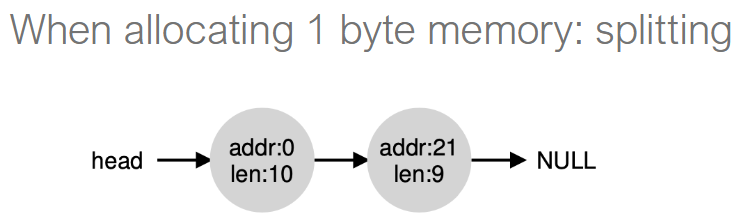

[Mechanism] splitting and coalescing(合并)
alt text

[Problem] the storage of the linked list
[Solution] reuse the freed space

typedef struct __header_t {
  int size;
  int magic;
} header_t;

typedef struct __node_t {
  int size;
  struct __node_t* next;
} node_t;

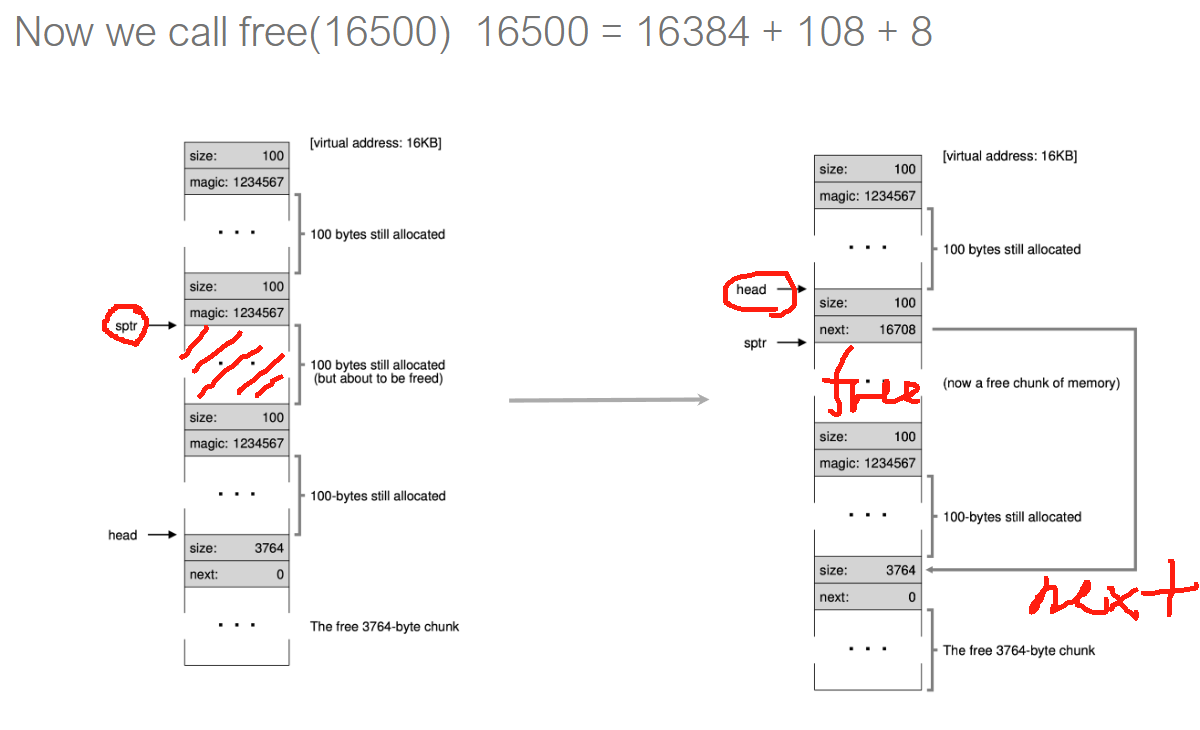

void free(void *ptr) {
  header_t *hptr = (void*)ptr - sizeof(header_t);
  ...
}

16500:a space addr pointer [Question] What is 16500 does not point correctly,e.g.,16508(where size and magic can be cotrolled by user)堆喷

Virtual_Memory_Quiz(2024final)

answer

CDAC

a.VA 15 = 10(VPN) + 5(OFFSET)
PA 12 = 7(PFN) + 5(OFFSET)

b.Virtual Address 0x17f5:0b00101(pde index)|11111(pte index)|10101(PA offset)
pde content from PDBR(108),pte content from pde content(84)
Value:0x1c from pte content & PA offset(78,21)
PA:0b1001110(78),0b10101(21)->0b100111010101->0x9d5

File System Week10 - 12¶

File System Interface¶

[Definition] file is a contiguous logical addr space for storing info
proc file system - use file system interface to retrieve system info(not real data in storage),an alterative of syscalls,using read,open and write
File attributes:name,identifier(tag),type,location,size,protection(permission,e.g.777,access control list(ACL)),time/user identification,checksum,...
File operations:

create:space for file allocated;entry allocated in the directory

open:return a handler for other operations

fd = open(path,...);//file descriptor
//per process mapping[fd,file]
read(fd,...);

read/write:maintain a pointer
seek:reposition the pointer within the file

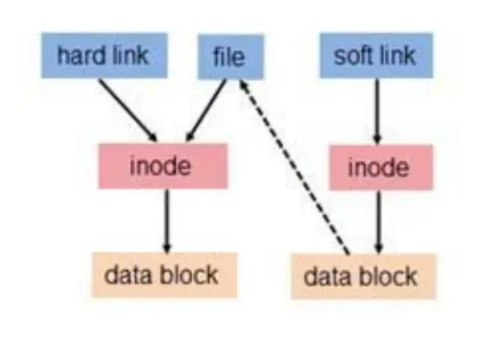

delete:release space,hardlink(delete a file until all the pointers relate to it are deleted),truncate(delete a file but maintains its attributes)
copy:create and read/write

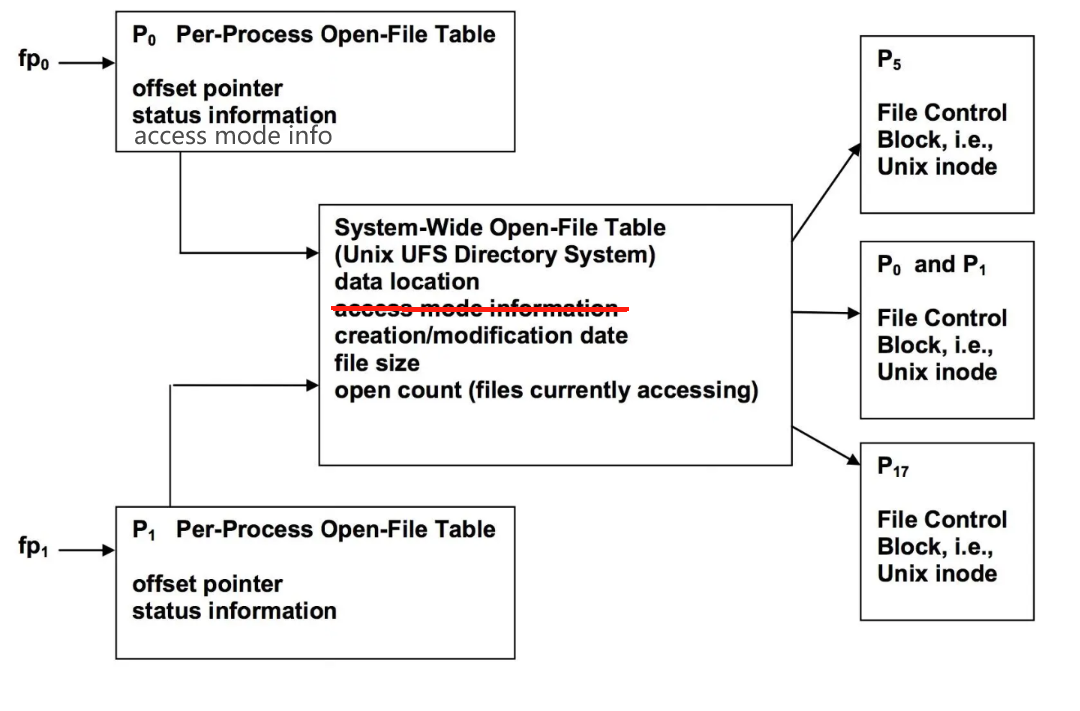

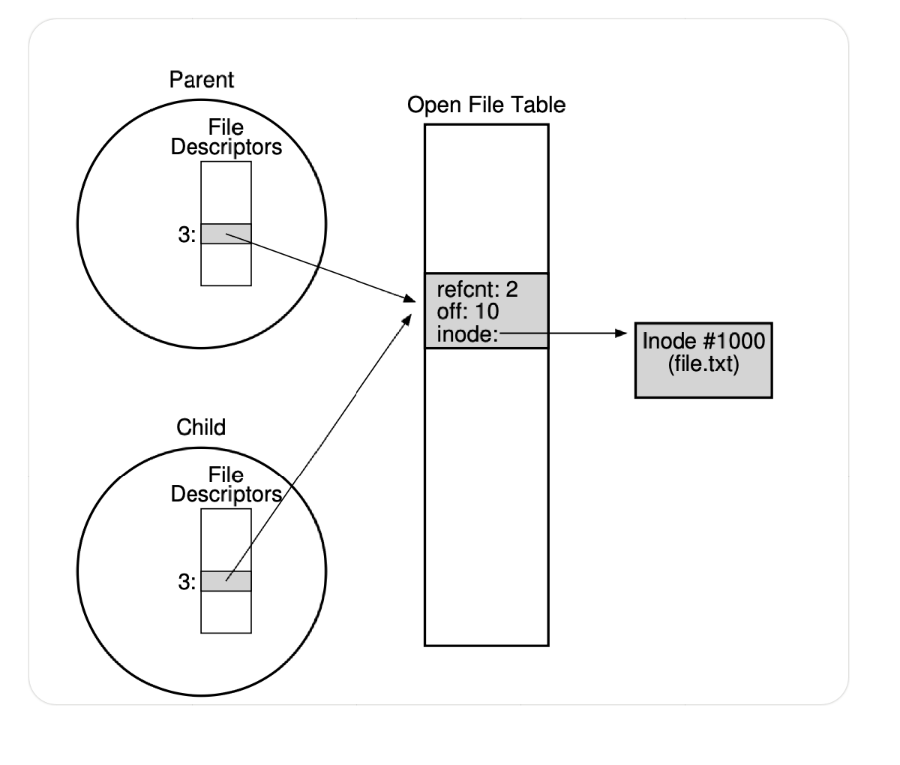

Open files:open-file table(info about all opened files,per-process(position,access right;differ in processes) & system-wide(location on disk))
Info:file position(per-process),file-open count,disk location,access right
*lock:shared lock & exclusive lock
file types:magic number(.exe,.o,.c,.txt,...)

File structure¶

no structure:linux
simple record structure:database
complex structure:word document,relocatable program file

Access methods:
sequential access:tape
direct access(random access):access an element of arbitary position in (roughly) equal time
other method:multiple layers of index points to blocks

directory structure:a collection of nodes containing info about all files
disk structure:subdivided into partitions(分区),each volume(partition) tracks file system info in the volume's table
raw disks(no partition,no file system):preferred in database

Directory operations

create LinkAT FileName,INode
delete
list
search
group(locally group files by properties,e.g. all java project)

Single-Level Directory¶

A single directory for all users
[Problem]
two users can't have same file name
hard to group files

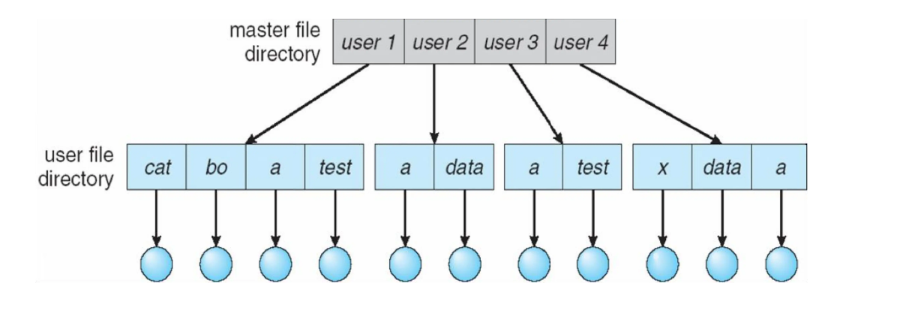

Two-Level Directory¶

Separate directory for each user
alt text
[Problem]
no file sharing

Tree-Structured Directory¶

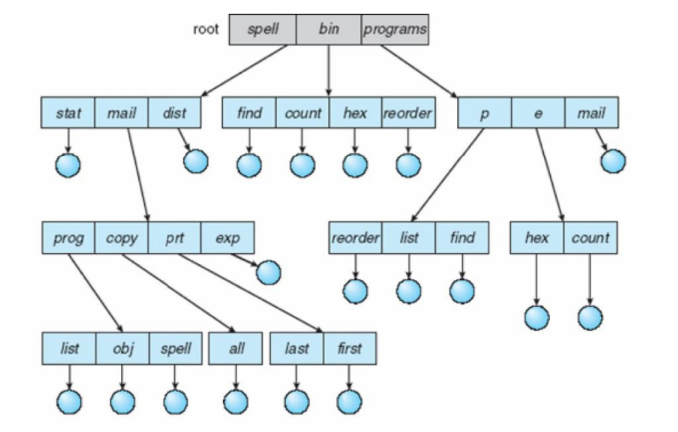

alt text
efficient searching,grouping and naming
File can be accessed using absolute or relative path name
absolute path name: /home/alice/..
relative path(pwd):/... Delete:
Option I:rm directory cannot delete unless it's empty
Option II:rm -rf delete all files,directories and sub-directories

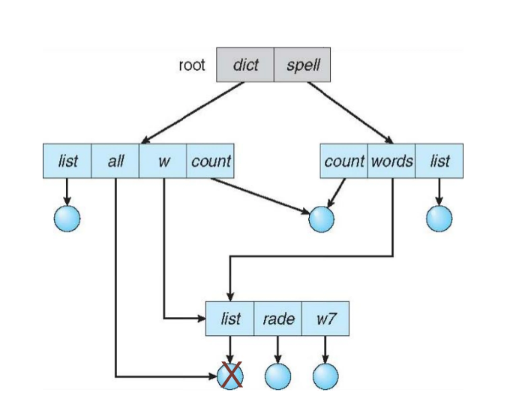

Acyclic-Graph Directory¶

allow links to a directory entry/files for aliasing(renaming)
alt text
[Problem] Dangling pointer(悬挂指针)
Delete /dict/all,then /dict/w/list & /spell/words are dangling pointers
[Solution]
backpointer:record all the pointers to the entry
reference counter:count # of links to it,only delete when counter = 0

//dangling pointers
char *ptr = malloc(size);
char* ptr1 = ptr;
free(ptr);
ptr = null;
//ptr1 is a dangling pointer

[Advantage] Shared files
alt text

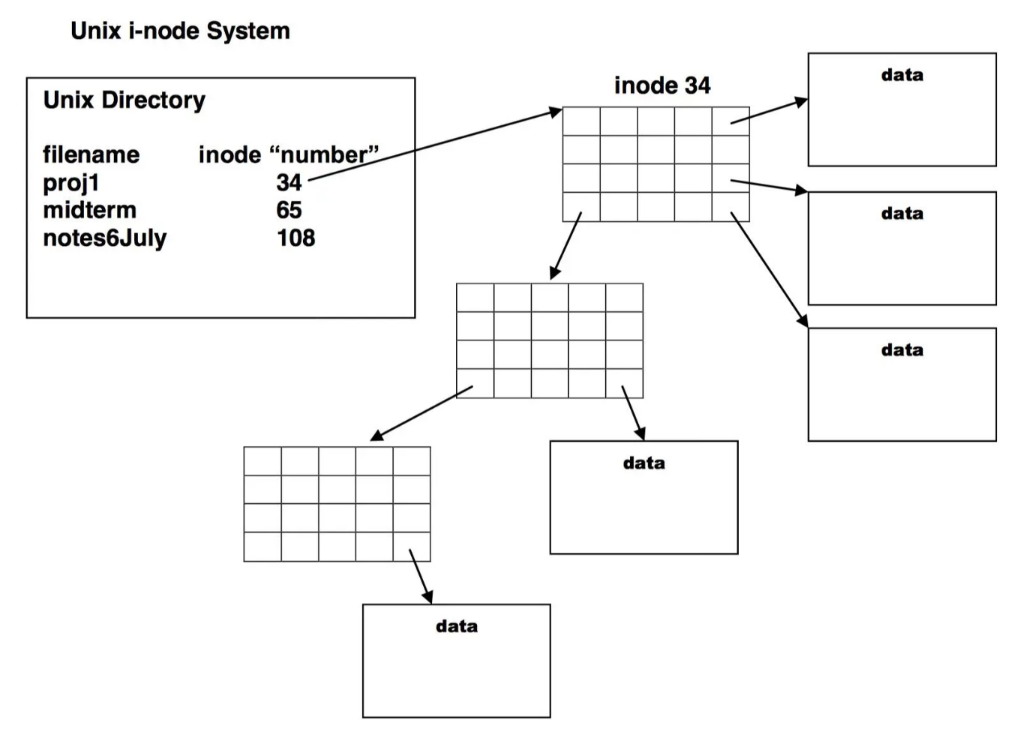

metadata in inode
link:多个文件路径指向同一文件
hardlink:多个文件名指向同一个inode
softlink(symbolic link):datablock存放真正link的路径(快捷方式)

/home/
  file
  file1
  file2
Directory:Name  inode
          file  500
          file1 500
          file2 501 block#1000(/home/file)

file1 automatically removed if rm /home/file
softlink need multiple searches and may cause broken link(linked file not exist)
hardlink deletes the datablock only when the links are all deleted
softlink can link files cross-filesystem
cycles in graph structure
garbage collection & cycle detection algorithm

Mounting¶

A file system must be mounted(挂载) before it can be accessed,e.g.插入U盘
a mounted file system makes the old directory at the mount point invisible

protection by user ID & group ID
NFS(Network File System)

ACL¶

ACL(Access Control List)
fine-grained control(精细控制防止过度授权) but list management is a big deal
UNIX Access Control
默认没有设置ACL但是支持
user types:owner(RWX),group(RW),others(X)

chmod 761 game
# 7 for owner,6 for group,1 for others

fork()

int main(int argc,char* argv[]) {
  int fd = open("./file.txt",O_RDONLY);
  lseek(fd,5,SEEK_SET);

  int rc = fork();
  if(rc == 0) {
    printf("child: fd %d\n",fd);
    rc = lseek(fd,10,SEEK_SET);
    printf("child: offset %d\n",rc);
  }
  else if (rc > 0) {
    (void) wait(NULL);
    printf("parent: fd %d\n",fd);
    printf("parent: offset %d\n",(int)lseek(fd,0,SEEK_CUR));//5?
    //10 actually
  }
  return 0;
}

Per-process access table but not a deep copy for file descriptors(they point to the same handle)
alt text

  if(rc == 0) {
    close(fd);//file descriptor leak
    int fd = open("./file.txt",O_RDONLY);
    /*
    a good way is to close parent process' file descriptor
    before operations in child
    /*
    ...
  }

File and Directory¶

File:linear array of bytes,each has an inode number
Directory:a list of user-readable name to inode number mapping,each entry points to file or other directory
create

int fd = open("foo",O_CREAT | O_WRONLY | O_TRUNC);
/*
O_CREAT:create if not exists
O_WRONLY:can only write
O_TRUNC:truncate it to zero bytes if the file exists
*/

echo hello > foo
cat foo
# hello
strace cat foo #查看系统调用 open("foo",O_RDONLY) = 3
# read(3,"hello\n",131072) = 6
# write(1,"hello\n",6hello) = 6
# read(3,",131072) = 0

seek

off_t lseek(int fildes, off_t offset, int whence);
/*
whence == SEEK_SET,offset = offset_bytes
whence == SEEK_CUR,offset = current_location + offset_bytes
whence == SEEK_END,offset = size_of_file + offset_bytes
*/

write

int fd = open("foo",O_CREAT | O_WRONLY | O_TRUNC);
assert(fd > -1);
int rc = write(fd,buffer,size);
assert (rc == size);
rc = fsync(fd);//forces all dirty data to disk
assert(rc == 0);

stat

stat foo
// File: 'foo'
// Size: 6 Blocks: 8 IO Block: 4096 ...
// ...

remove

strace rm foo
# unlinkat(AT_FDCWD, "foo", 0) = 0

rm:unlink the file and check the Reference count of the inode
free the inode until the reference count == 0
mkdir

strace mkdir foo
# mkdir("foo", 0777) = 0
ls -al
# drwxrwxr-x 2 os os 4096 <time> .
# drwxrwxr-x 3 os os 4096 <time> ..

Empty directory has two entries('.' for current,'..' for upper level)
read directory

int main(int argc,char* argv[]) {
  DIR *dp = opendir(".");
  assert(dp != NULL);
  struct dirent *d;
  while((d = readdir(dp)) != NULL)
    printf("%d %s\n",(int)d->d_ino,d->name);
  closedir(dp);
  return 0;
}
/*
struct dirent {
  char d_name[256];
  ino_t d_ino;
  off_t d_off;
  ...
}
*/

link
link() system call:takes two arguments,an old pathname and a new one

ln file file2 # link(hardlink)
ls -i file file2
# same inode number

echo hello > file
ln -s file file2 # Symbolic link(softlink)
# filepath in datablock of file2
rm file
cat file2
# No such file or directory

TOCTTOU
*Time of Check to Time of Use

if (access("file", W_OK) != 0) //check
  exit(1);
//schedule ?
//symlink("/etc/password","file");
fd = open("file", O_WRONLY);
write(fd, buffer, sizeof(buffer)); //use

O_NOFOLLOW:fail if pathname is symbolic link

File System Implementation¶

File system resides on secondary storage(disks)
disk driver provides interface to read/write disk blocks
file system provides user interface to storage,mapping logical to physical
file control block(inode)

Layered File System¶

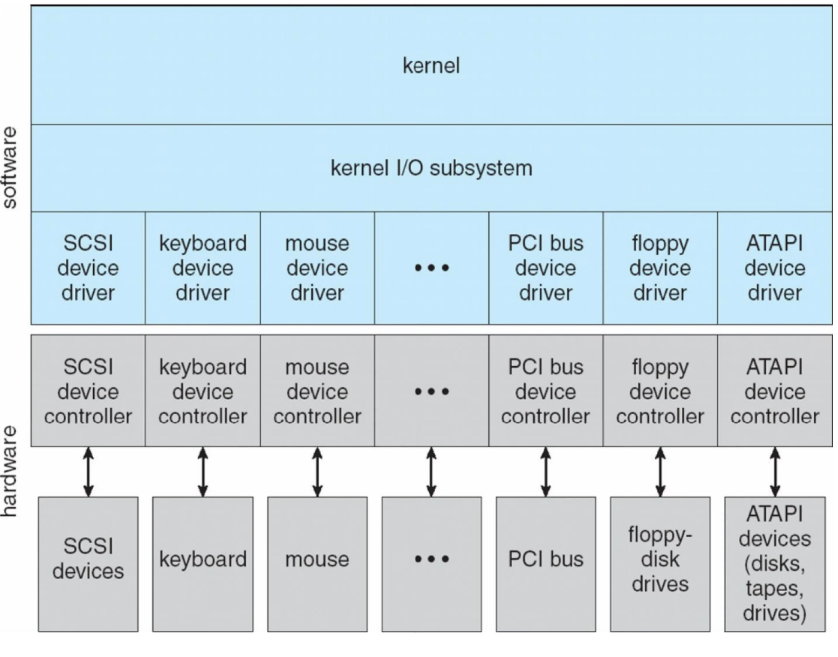

0.I/O control--device drivers
1.basic file system
2.file-organization module
3.logical file system

Implementation¶

on-disk structure(storage)

file control block:perm,dates,ACL,size,data block/pointer to data block(same data inside and other data stored in other place and pointed by a pointer)
boot control block:contains info to boot OS(per volume)
volume control block(superblock):volume details,including total block number,block size,free blocks & pointers,free FCB & pointers(per volume)
FCB count is fixed when formatting the disk for high efficiency
expand if FCB is full
directory structure(per file system)

in-memory structure(access)

mount table
in-memory directory structure cache
system-wide open-file table:copy of FCB
per-process open-file table:pointers to entries in system-wide open-file table and other info
I/O memory buffers

creation
1.FCB allocation
2.link inode & name 3.directory update
In UNIX,directories are treated equally as files,which is different from Windows
open
1.search system-wide open-file table:already opened?
It it is,create a per-process open-file table pointing to the existing system-wide open-file table
If not,search the directory for the file name,place the FCB in system-wide open-file table once found
2.make an entry in per-process open-file table with pointers to the entry in the system-wide open-file table(FCB in system-wide)
3.increment the open count in the system-wide open-file table
4.return a pointer fd to the entry in per-process open-file table
close
1.remove per-process open-file entry
2.decrement open count
3.all processes close file -> copy info to disk,remove system-wide open-file table
alt text

mount
Boot block:series of sequential blocks containing bootloader
In-memory mount table:mount points,type of file system mounted,access path,(UNIX)a pointer to the superblock(global metadata,fixed location on disk)
Virtual File System
VFS:an object-oriented way for implementing file systems
VFS object types:superblock,inode,dentry(associates name to inode),file
Directory
Linear list of file names;hash table(faster search but collsion)

Disk Block Allocation¶

contiguous allocation:best performance in most cases,simple to implement
not flexible:file size hard to change,causing external fragmentation
extent-based contiguous allocation:extent is a set of contiguous blocks but extents are not necessarily adjacent
linked:each file is a linked list of disk blocks
blocks can be scattered,no external fragmentation
many I/Os and seeks for locating
Improvement:cluster the blocks,but causing internal fragmentation
indexed:each file has its index blocks of pointers to its data blocks
random access avaliable,no external fragmentation
but storing index requires space,a waste for small files

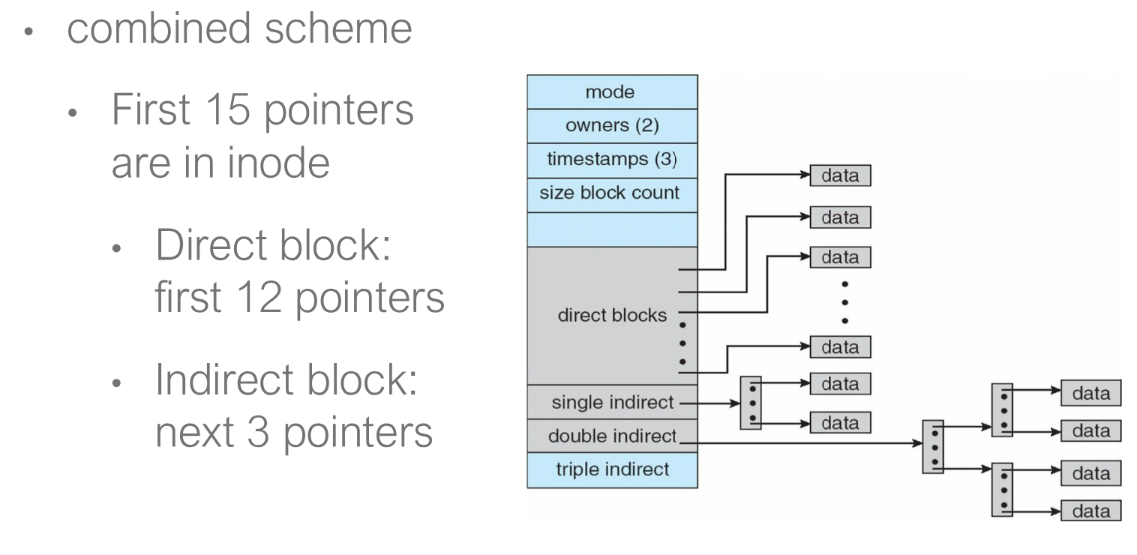

index block allocation:multiple-level

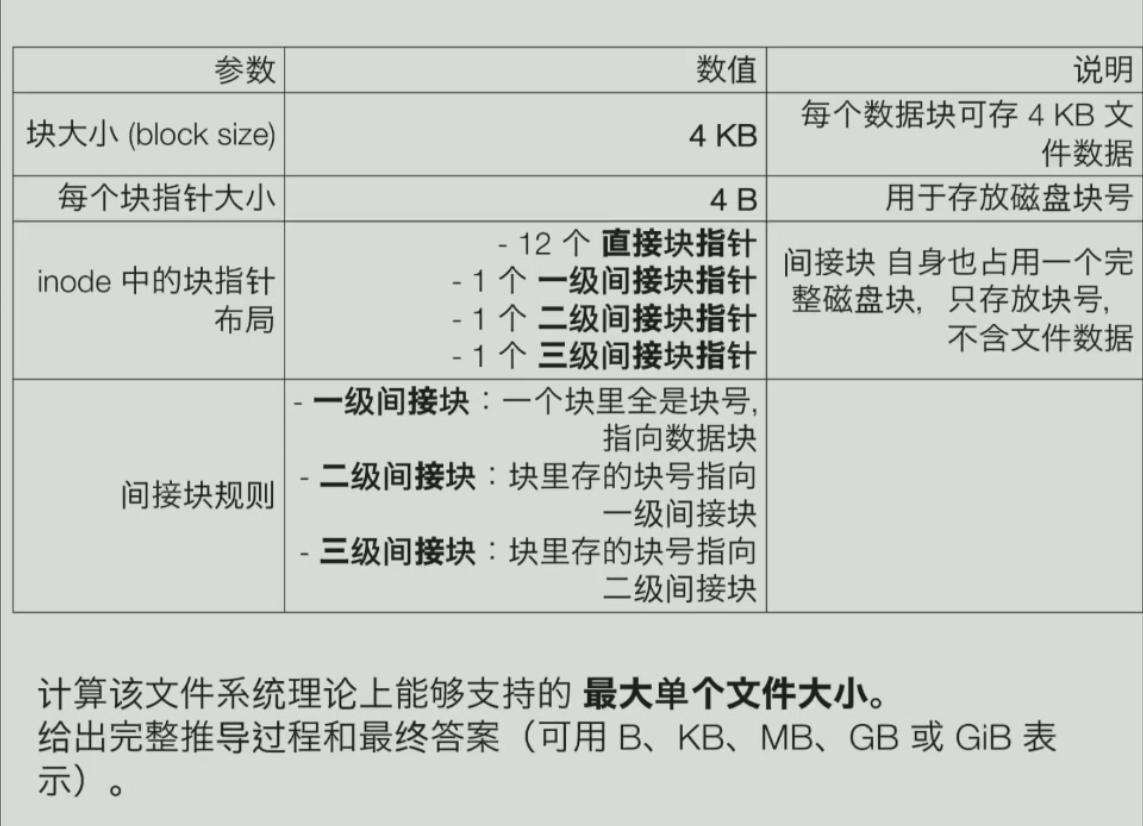

quiz answer:4TB

Free Space Management¶

Bitmap:one bit for each block,but require extra space for bitmap storage
Linked list:no waste of space but difficult for getting contiguous space
note:usually no need to traverse the list
Grouping:use indexes to group free blocks
store addr of n-1 free blocks in the first free block and a pointer to next index block
Counting:a link of clusters

File System Performance¶

• disk allocation and directory algorithms
• types of data kept in file’s directory entry
• pre-allocation or as-needed allocation of metadata structures
• fixed-size or varying-size data structures
Performance Improvement:
1.keep data and metadata close together,because every operation to data operates metadata
2.use cache

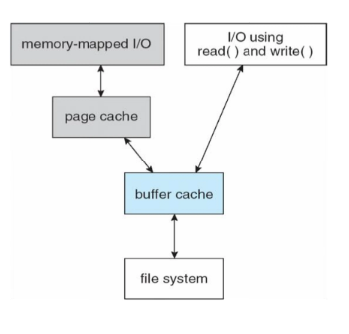

Page cache:caches pages for MMIO(Memory-mapped I/O(fd -> VA))
alt text
unified buffer cache uses the same page cache to cache both memory-mapped pages and disk I/O to avoid double caching
3.use asynchronous writes:buffered or cached,periodically/fsync() to disk
4.optimize sequential access
free behind:remove the previous page from the buffer
read-ahead:read multiple pages ahead
Read often slower than write because of asynchronous writes,no asynchronous read

Recovery¶

1.backup
2.Log structured file systems:metadata for updates sequentially written to a circular log,then commit to write to disk,recommit if failed
only ensure the consistency,not guarantee that data will not be lost

Example¶

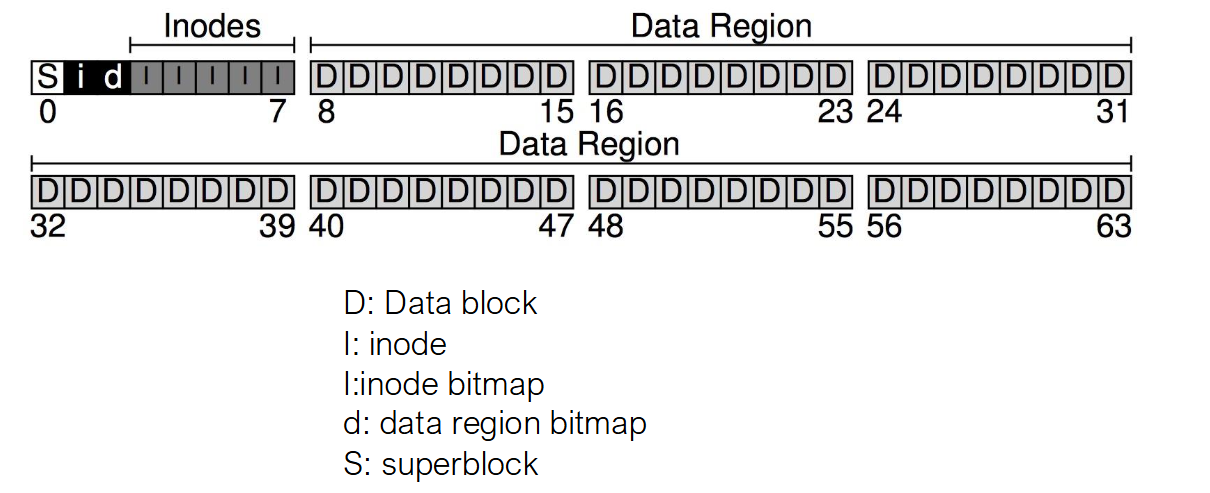

Assume we have 64 blocks,each block size 4K
56/64 for data
5/64 for inode(suppose inode are 256bytes,4Kb block can hold 16 inodes),80 files
1/64 for bitmap for free inodes
1/64 for bitmap for free data regions
1/64 for superblock:info about the file system(inode block number,data block number,inode table begin addr,data region begin addr & a magic number)

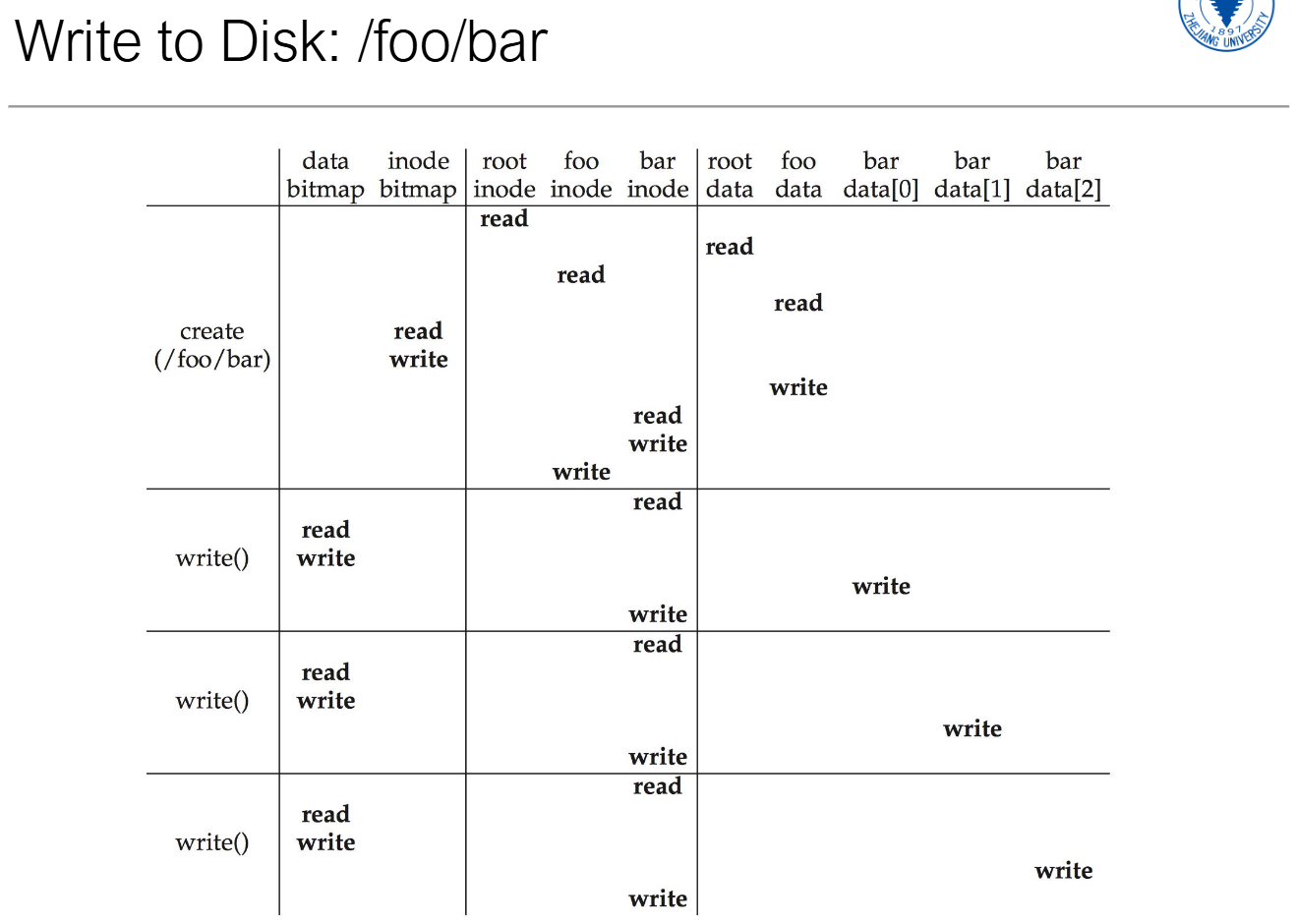

alt text
inode_number addr = inode_number * sizeof(inode) + 4k(superblock) + 8k(bitmap)

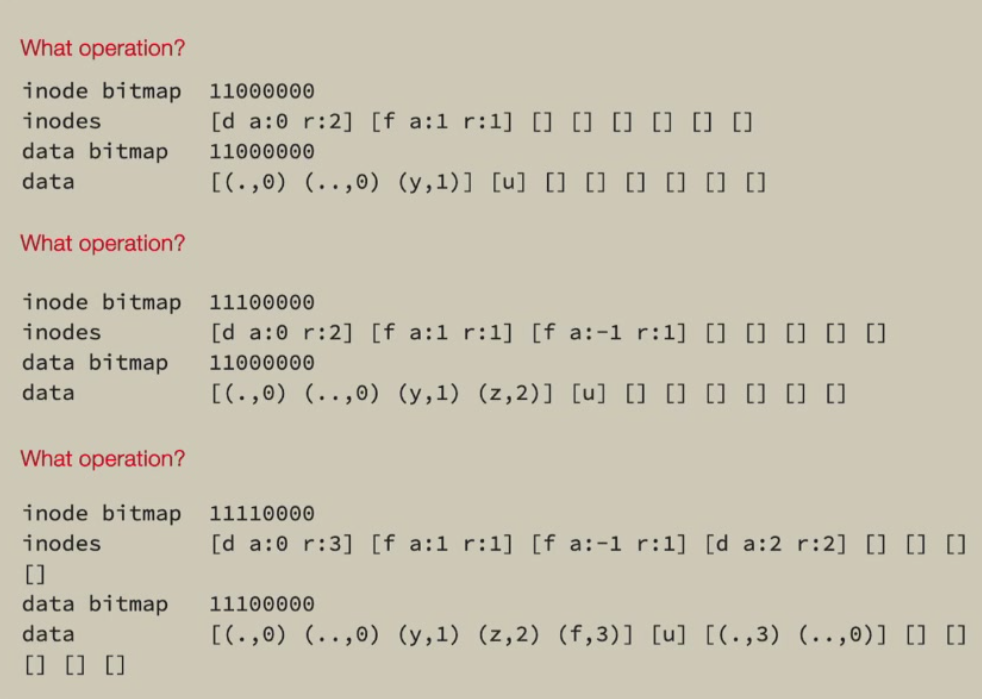

Directory organization¶

a mapping of inode & name,strlen(length of name),reclen(ROUNDUP(strlen))
alt text

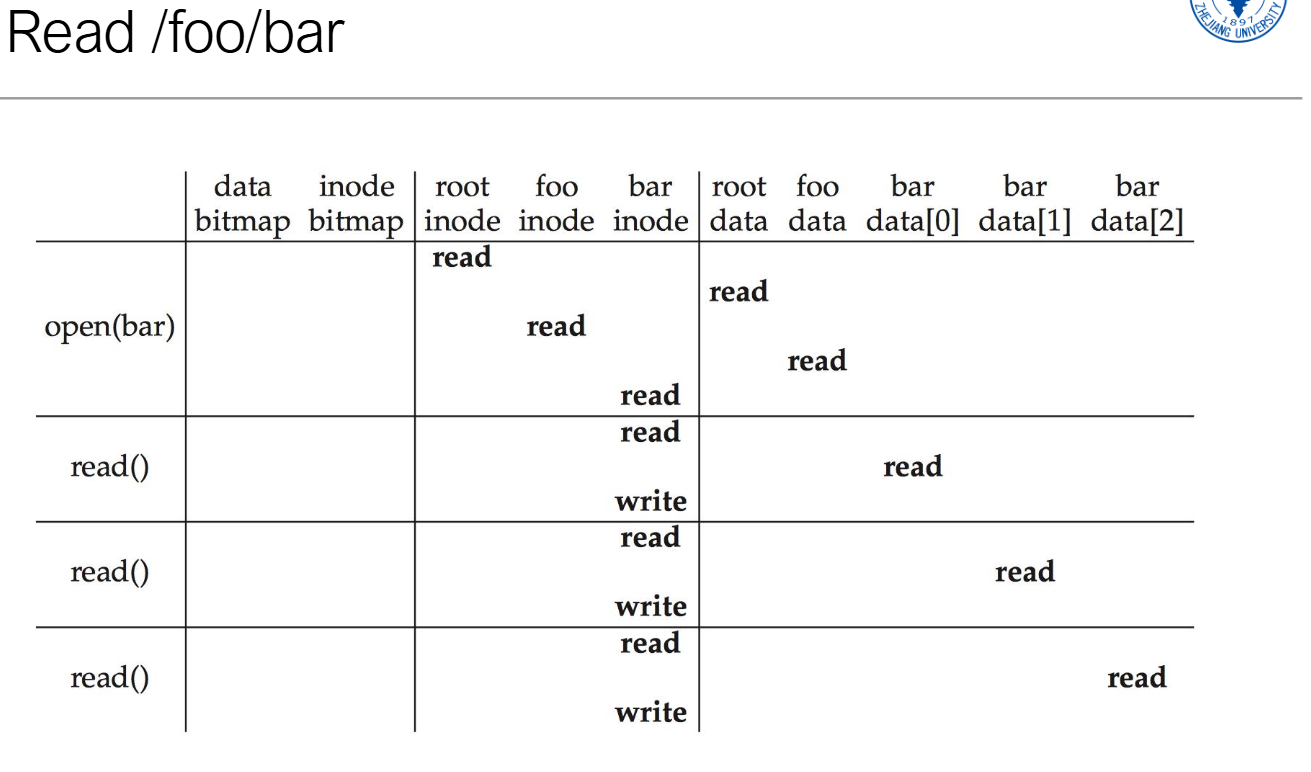

给定相对路径，按绝对路径读
write in open() for updating time,etc in inode
First search system-wide open-file table.If found,we don't need to find the file
After opening the file,put the entry into the per-process open-file table

*Crash Consistency¶

Crash scenarios:write inode,bitmap & data block
[Case1] Only data block is written
[Case2] Only inode is written(inode points to garbage):inconsistency between inode and bitmap
[Case3] Only bitmap is written:a space leak
[Case4] inode & bitmap written:block has garbage data
[Case5] inode & data block
[Case6] bitmap & data block:data belonging unknown
[Solution1] checker

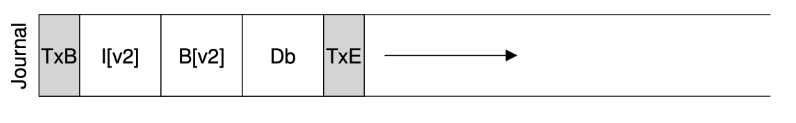

[Solution2] journaling(writing ahead logging)
1.write inode,bitmap & data to log(a.k.a journal)
2.Transaction begin(TxB) -> Transaction end(TxE)
3.After the transaction is safely on the disk,overwrite the old data(checkpointing)
checkpoint:write from log to disk alt text
crash when writing to journal
[Solution1] issue one operation at a time
[Solution2] split write to two steps
Recovery
[Case1] crash when writing to log
no TxE,data lost but no inconsistency
[Case2] after transaction committed but before checkpoint
redo logging
[Case3] during checkpointing
redo
Journal structure:circular
[Problem] writing each data block twice
[Solution] Metadata journaling
[Option1] write data after the transaction finishes
[Option2] write the data block first(no garbage pointer)
alt text

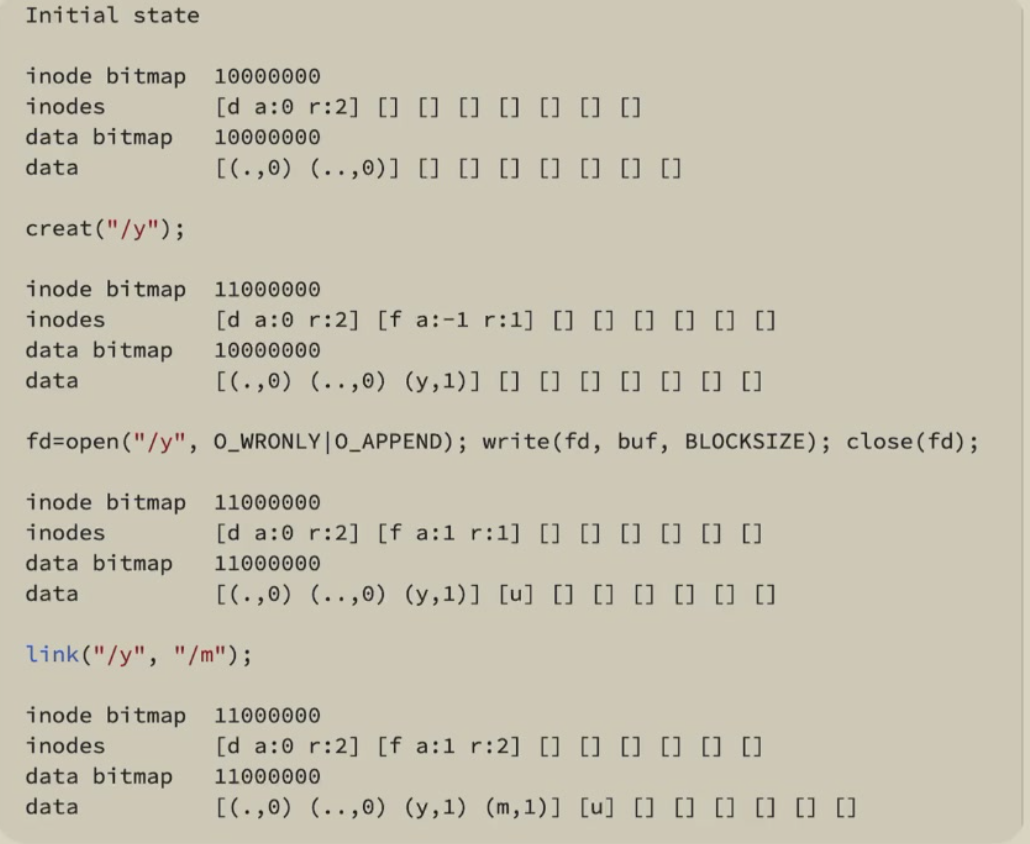

quiz answer:unlink("/m");creat("/z");mkdir();

Mass Storage Week13¶

See [databaseChap12]

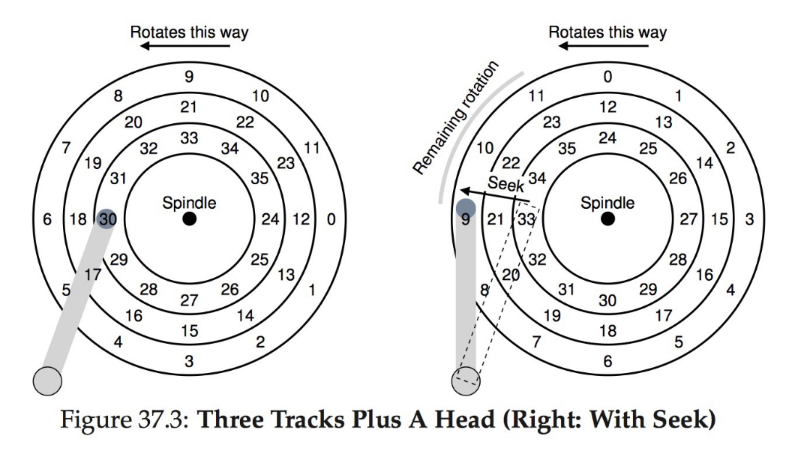

sector,track,cylinder
alt text

Magnetic Disk¶

positioning time(random-access time) = seek time + rotational latency
performance:transfer rate(Gb/sec)
average access time = average seek time + average latency
average I/O time = average access time + (data to transer/transfer rate) + controller overhead

Non-volatile memory devices¶

solid-state disk(SSDs) more reliable than HDDs
1.read and written in pages increment but can't overwrite in place(must be erased)
2.can only be erased a limited number of times
3.lifespan measured by drive writes per day(DWPD)
NAND Flash Controller Algorithm
flash translation layer(FTL) table

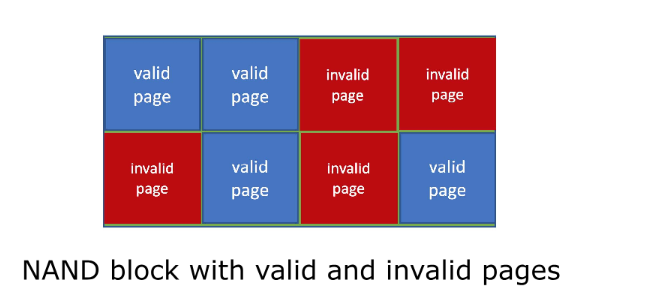

garbage collection:free invalid page space
alt text

Disk Attachment¶

host-attached storage:hard disk,RAID,CD,DVD,tape,... using I/O bus
network-attached storage(NAS)
over TCP/UDP on IP network
storage area network(SAN)
high speed interconnection and efficient protocols(than TCP/IP)

Disk scheduling¶

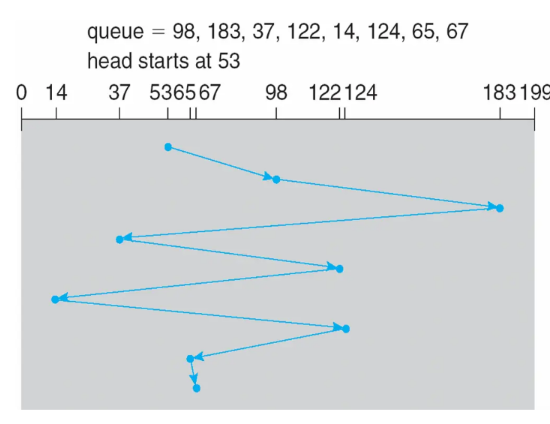

FCFS¶

alt text

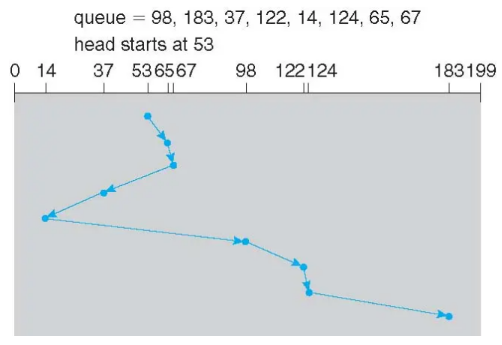

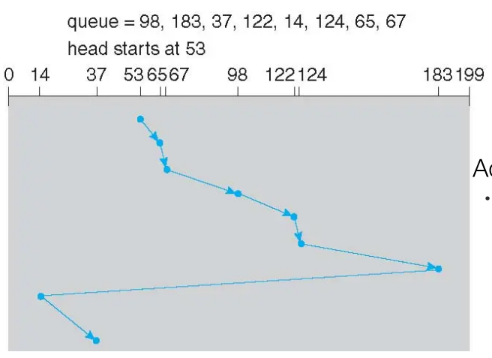

SSTF¶

shortest seek time first(not optimal,compare to SJF),starvation exists
alt text

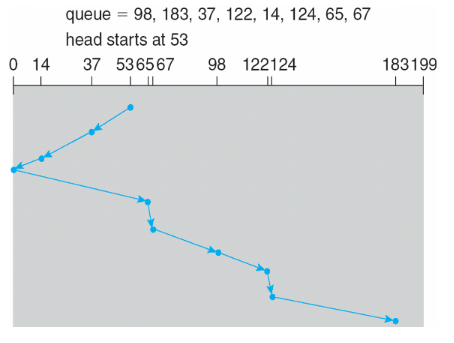

SCAN(Elevator)¶

alt text

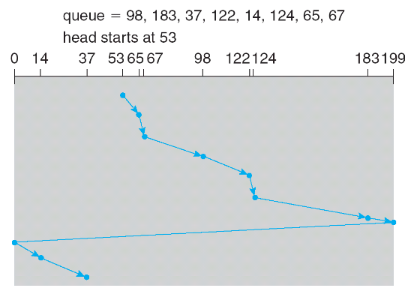

C-SCAN¶

Circular-SCAN alt text

LOOK/C-LOOK¶

alt text

Disk Management¶

Physical formatting:divide disk into sectors
Logical formatting:OS partition disk into groups of cylinders,each treated as a logical disk
root partition:only contains the OS,mounted at boot time
boot block:point to bootloader(codes of how to load kernel)
swap space management
扩展物理内存(DRAM),暂存不活跃的page用于交换
Swap partition交换分区

RAID¶

Redundant array of inexpensive disks

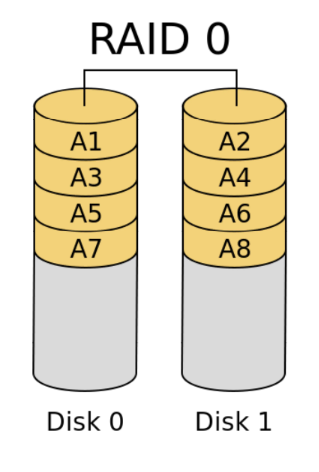

RAID 0:split evenly on two or more disks
alt text

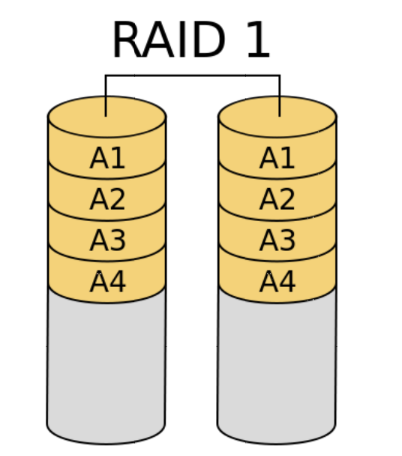

RAID 1:exact copy/mirror

RAID 2:stripe data at the bit-level,use Hamming code
RAID 4:block-level striping with a dedicated parity disk
RAID 5:block-level striping with parity data distributed across all disks
RAID 6:adding additional parity block
detect/recover from disk failures,does not prevent or detect data corruption
ZFS adds additional checks(checksum) to detect errors

I/O Week13 - 14¶

I/O hardware¶

I/O devices:storage,communication,human-interface
bus:interconnection
port:device connection part
controller
access by polling(CPU周期性检查,very high network load,busy-wait) or interrupt(from I/O,context switch)
direct I/O Instruction:In/Out <Device.no>(x86)
MMIO:VA Space -> I/O device

Interrupts¶

[type] protection error(invalid access),page fault,system calls
Multi-CPU can process interrupts concurrently,even use a CPU to handle interrupts dedicatedly,CPU affinity(lock on global data if accessed by multiple cores)
APIC(Advanced programming interrupt controller)

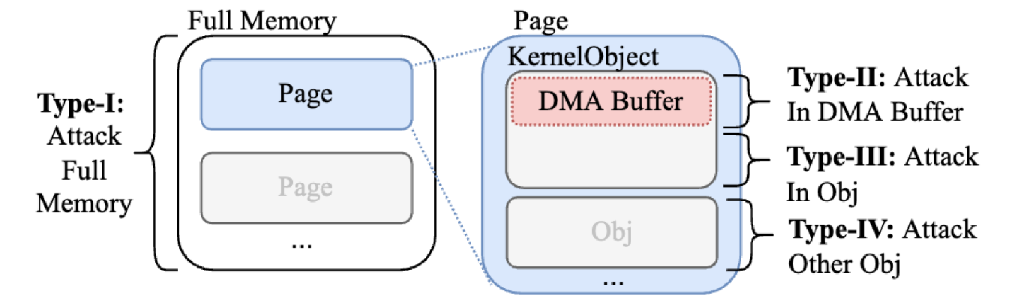

DMA¶

[Definition] Direct Memory Access:transfer data directly between I/O & memory(bypass the CPU) using DMA controller in the device
[Problem] Device may change physical address directly
[Solution] IOMMU:Device address -> Physical address
[Problem] IOMMU can only control page size granularity
alt text

I/O Devices¶

character-stream:sequential,block:random-access(read,write,seek),memory-mapped file access,network socket
direct manipulation(操作) of I/O device is not allowed(e.g. 监听password)

Synchronous I/O
blocking:process suspended until I/O completed
non-blocking:I/O return as much data as avaliable,use select to find data if ready then use read or write to transfer data
Asynchronous I/O:process runs while I/O executes,I/O signals process when completed(data already in buffer,read() not needed)

Kernel I/O Subsystem¶

scheduling:queue I/O requests via per-device queue
buffering:store data in memory while transferring between devices because of speed unmatch,device transfer size unmatch or maintain copy semantics(e.g,write(fd,buf,...))
cache:hold a copy of data for fast access
spooling:hold output 打印机
device reservation:exclusive access to device
name to device representation:major/minor(编号) in UNIX

Error Handling¶

recover by retrying or advanced handling
return error code

I/O Protection¶

direct I/O Instruction:define all I/O instructions to be privileged
MMIO:security check in MMU(user mode cannot access I/O VA)
alt text

Performance¶

[Improvement] reduce context switches,reduce data copying,reduce interrupts by using large transfers,small controllers,polling,use DMA,smarter hardware,move user-mode processes to kernel threads(reduce context switches and essures non-blocking)

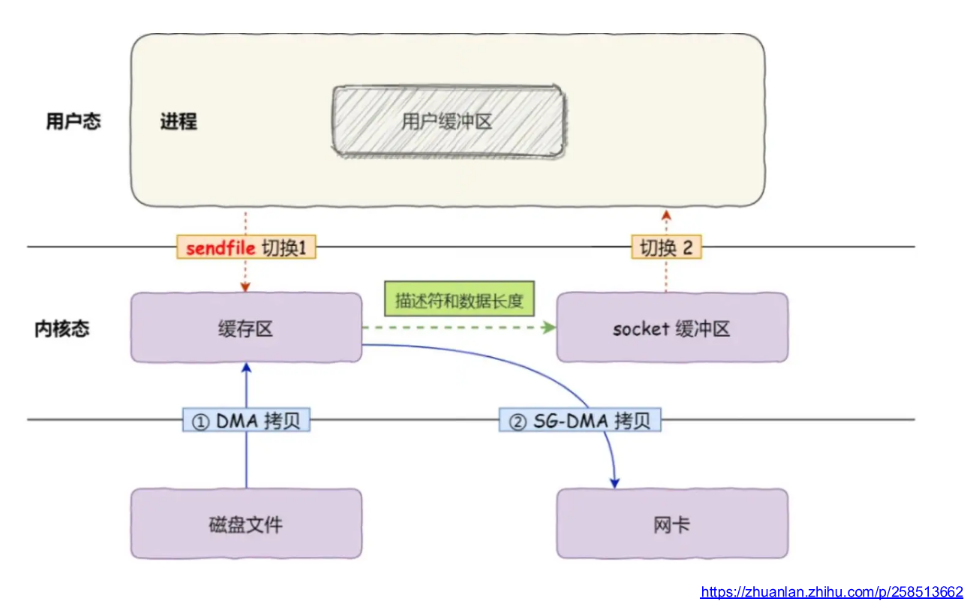

sendfile(),SG-DMA copy
zero-copy in practice:2 context switch + 2 DMA copy (no CPU copy)
alt text

Page Cache¶

in memory,before read from disk
not work for big file(data written in cache but never read)
File_System_Quiz

体系结构¶

DLP,TLP Week14 - 15¶

SIMD:Vector processor¶

SIMD:single instruction multiple data 单指令流多数据流
\(D = A * (B + C)\),A,B,C,D are vectors of length N
1.horizontal processing method
\(d_i = a_i * (b_i + c_i)\)
data related:N times,function switching:2N times(static pipeline needs drain排空)
2.vertical processing method
\(K = B + C\)
\(D = A * K\)
data related:1 time,function switching:2 times
[Problem] what if N is very big;multiplication has to wait for all add operations complete
3.vertical and horizontal(grouping) processing method
N is very big,each group can put n instructions
N = s * n + r
data related:s+1 times,function switching:2(s+1) times

CRAY-1¶

64 instructions per group,12 single-function pipeline
Vi conflict

V0 = V1 + V2
V3 = V0 * V4

V0 = V1 + V2
V3 = V1 * V4 # V1 may not be entirely stored in memory

V3 = V1 * V2
V5 = V4 * V6 # hardware conflict

instruction types:

Vk = Vi op Vj
Vk = Si op Vj
Vk <- Memory
Memory <- Vi
Memory:6 beats
Add:6 beats
Multiply:7 beats
Every data transfer:1 beat

Performance improvement¶

1.multiple functional units

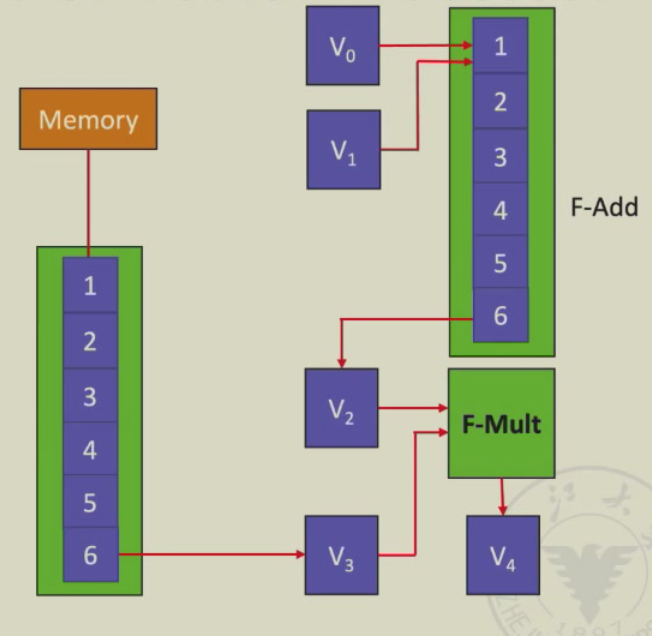

2.vector chaining technology向量链接

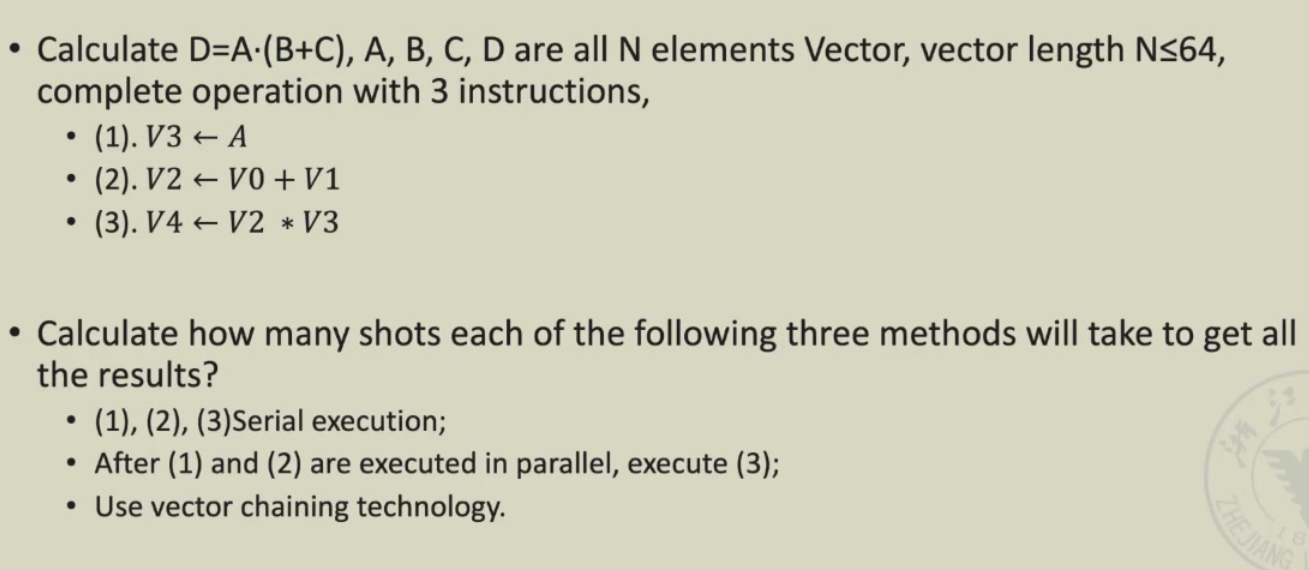

\(D = A * (B + C)\),N <= 64
V0 = B,V1 = C

V3 <- memory
V2 = V0 + V1
V4 = V2 * V3 # RAW but no functional/hardware conflict,using chaining!

once the first output of V4 come out,every clock cycle another output of V4 come out
alt text

(1)((1 + 6 + 1) + N - 1) + ((1 + 6 + 1) + N - 1) + ((1 + 7 + 1) + N - 1) = 3N + 22
(2)((1 + 6 + 1) + N - 1) + ((1 + 7 + 1) + N - 1) = 2N + 15
(3)(1 + 6 + 1) + (1 + 7 + 1) + N - 1 = N + 16
3.Segmented vector
4.Multi-processor system
RISC-V(scalar) -> RV64V

Array Processor阵列机¶

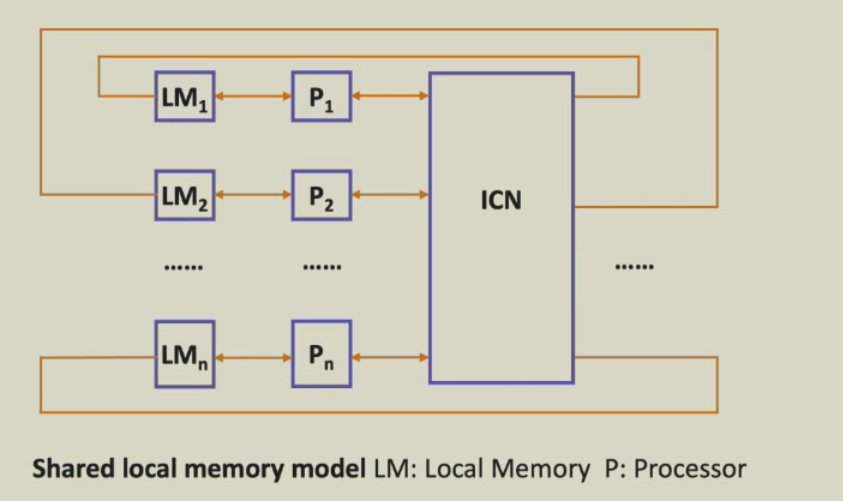

Distributed memory:each processor has its own memory(ICN,dynamic network connecting the processors)

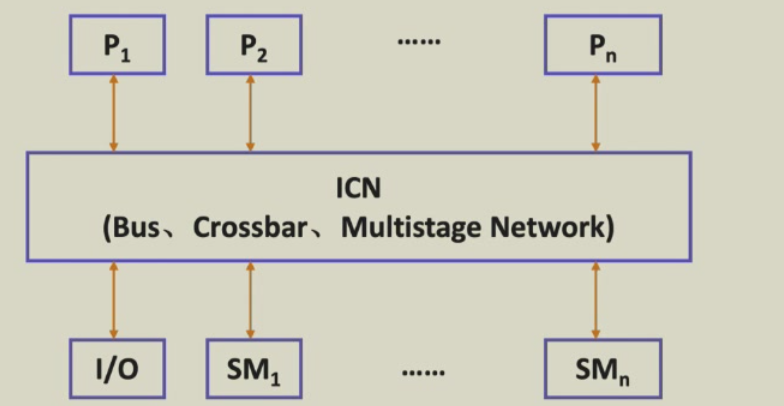

Centralized shared memory:N processors and K memories interconnect by ICN
[Question] connection path:direct or indirect
interconnection network:static or dynamic
[Goal] any two PEs can achieve info transfer in a few steps
single-stage/multi-stage interconnection network

Single-state interconnection network¶

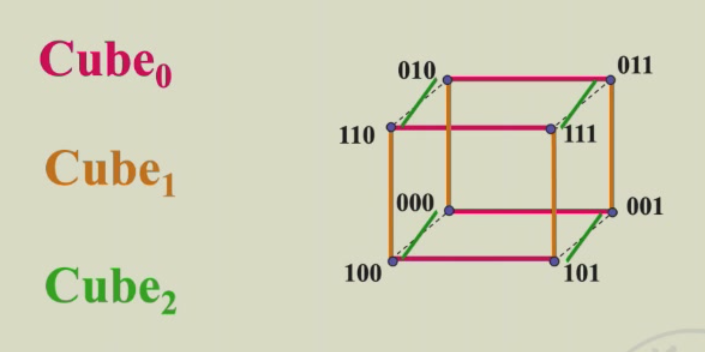

Cube:N inputs and outputs are encoded with n-bit(\(n = log_2N\)) binary code \(P_{n-1}...P_i...P_1P_0\)
\(Cube_i(P_{n-1}...P_i...P_1P_0) = P_{n-1}...\overline{P_i}...P_1P_0\)
alt text
The 3D cube can transfer data between any two processing elements at most 3 times
if N is bigger,then we have at most \(log_2N\) times(hyper cube)
PM2I(Plus Minus \(2^i\)):\(PM2_{+i}(j) = (j + 2^i)mod N\),\(PM2_{-i}(j) = (j - 2^i)mod N\),2n functions,2n-1 different functions(i = n - 1)
transfer data between any two processing elements at most n - 1 times

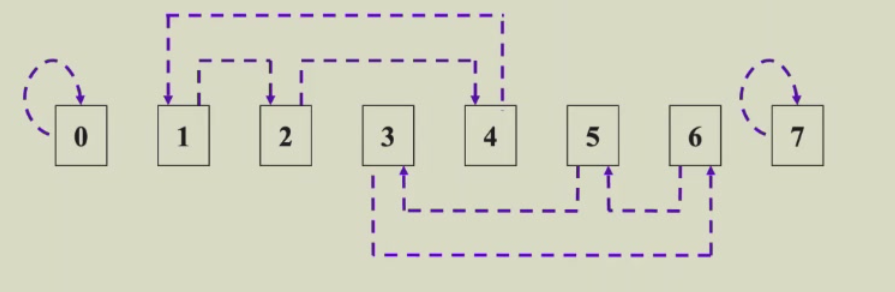

Shuffle exchange
\(shuffle(P_{n-1}...P_i...P_1P_0) = P_{n-2}...P_{i-1}...P_1P_0P_{n-1}\)
exchange:\(Cube_0\)
alt text
If N is bigger,from all '0' to all '1', we need n shuffles and n - 1 exchanges
Other static networks

Linear array
Circular array

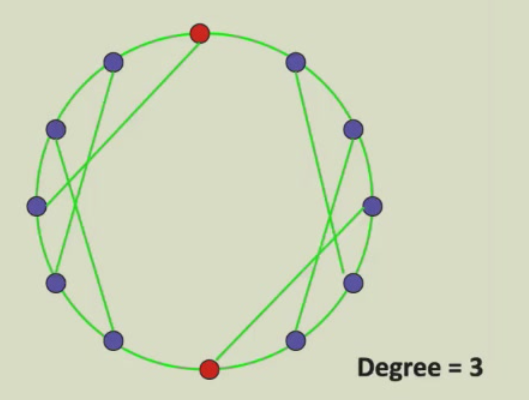

Loop with chord array
Tree array

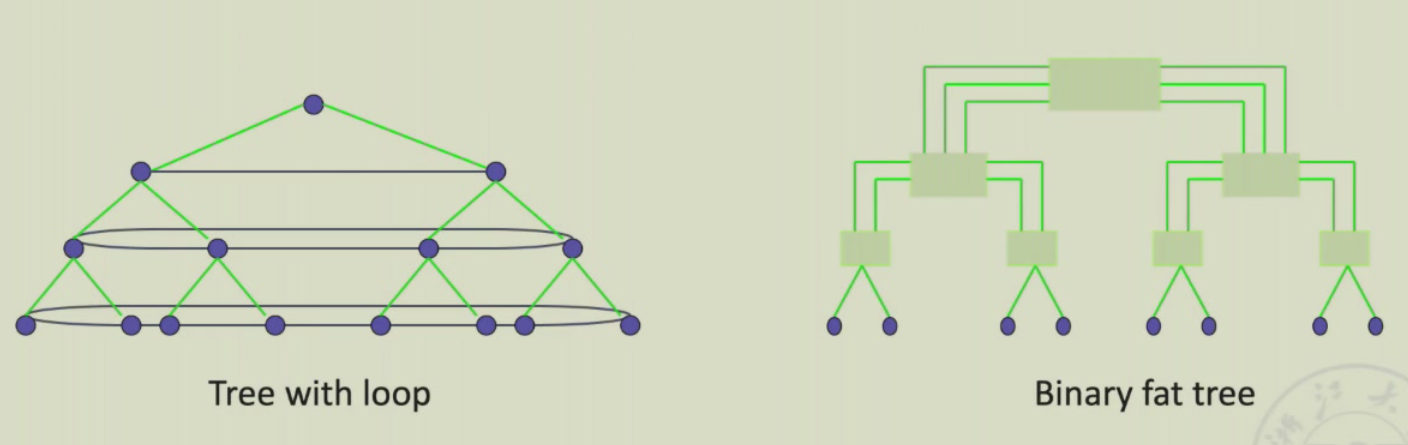

tree with loop,binary fat tree
Star array
Grid:格

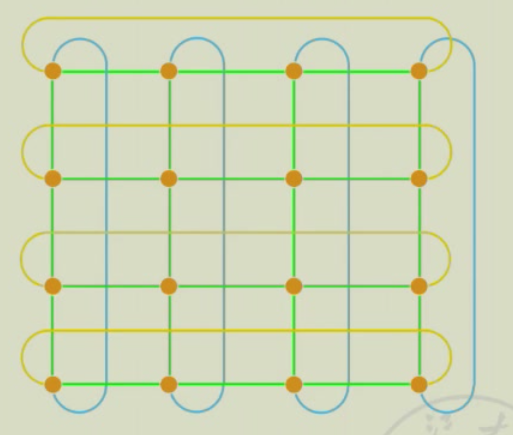

2D torus
Hypercube

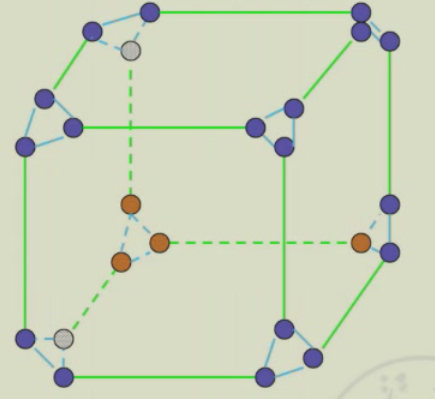

Cube with loop

Network Charactistics¶

Dynamic networks

buses:time-division characteristics,only one pair of nodes are transmitting data at the same time

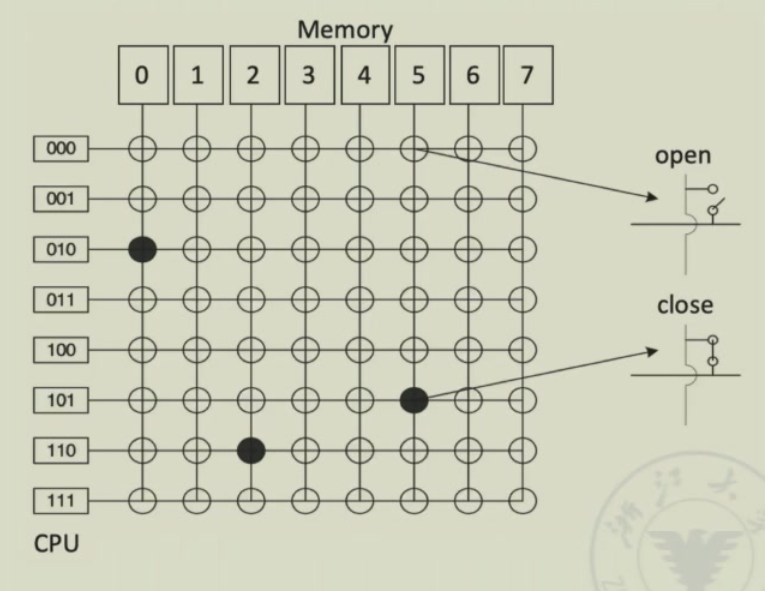

crossbar switches

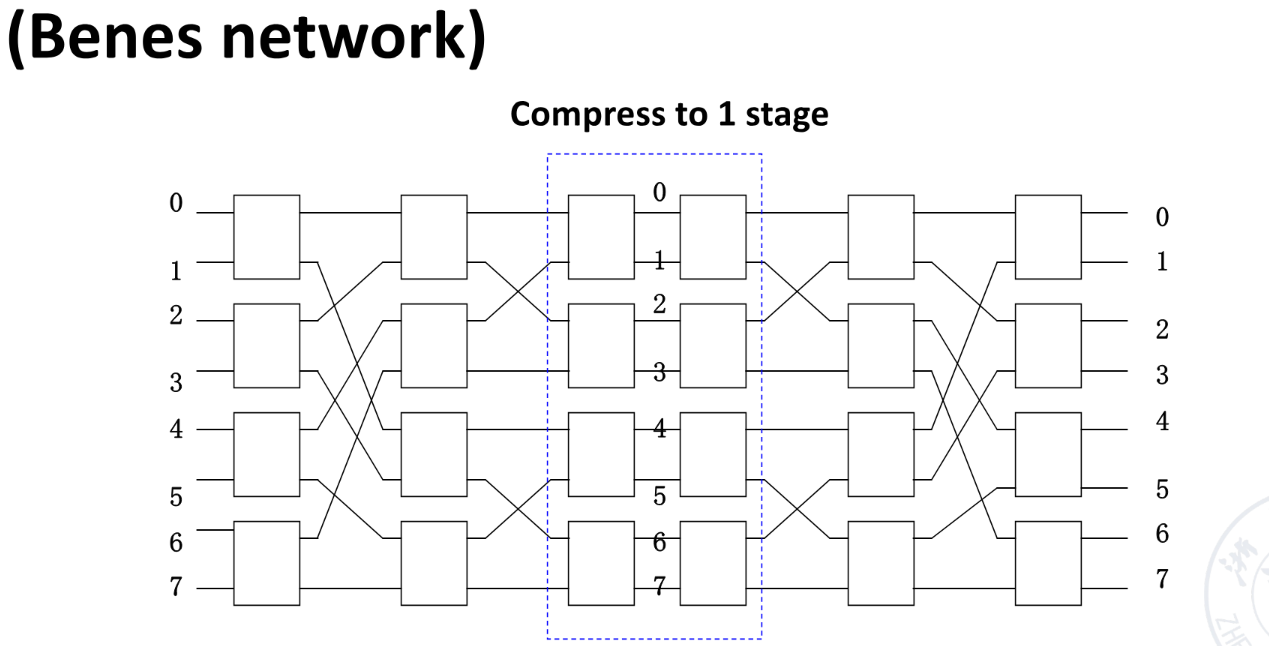

multi-stage interconnection network(Switch unit:m input and m output switches)

switch function
switch control method
topology

cube

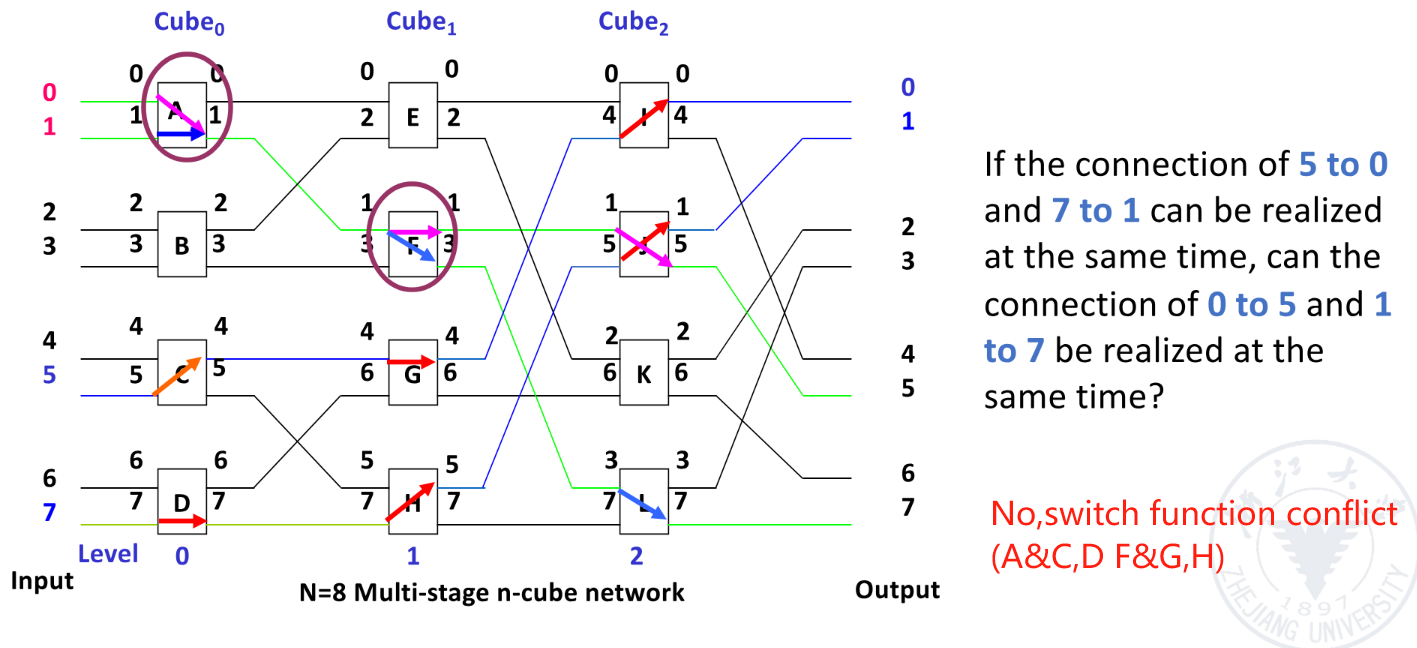

alt text

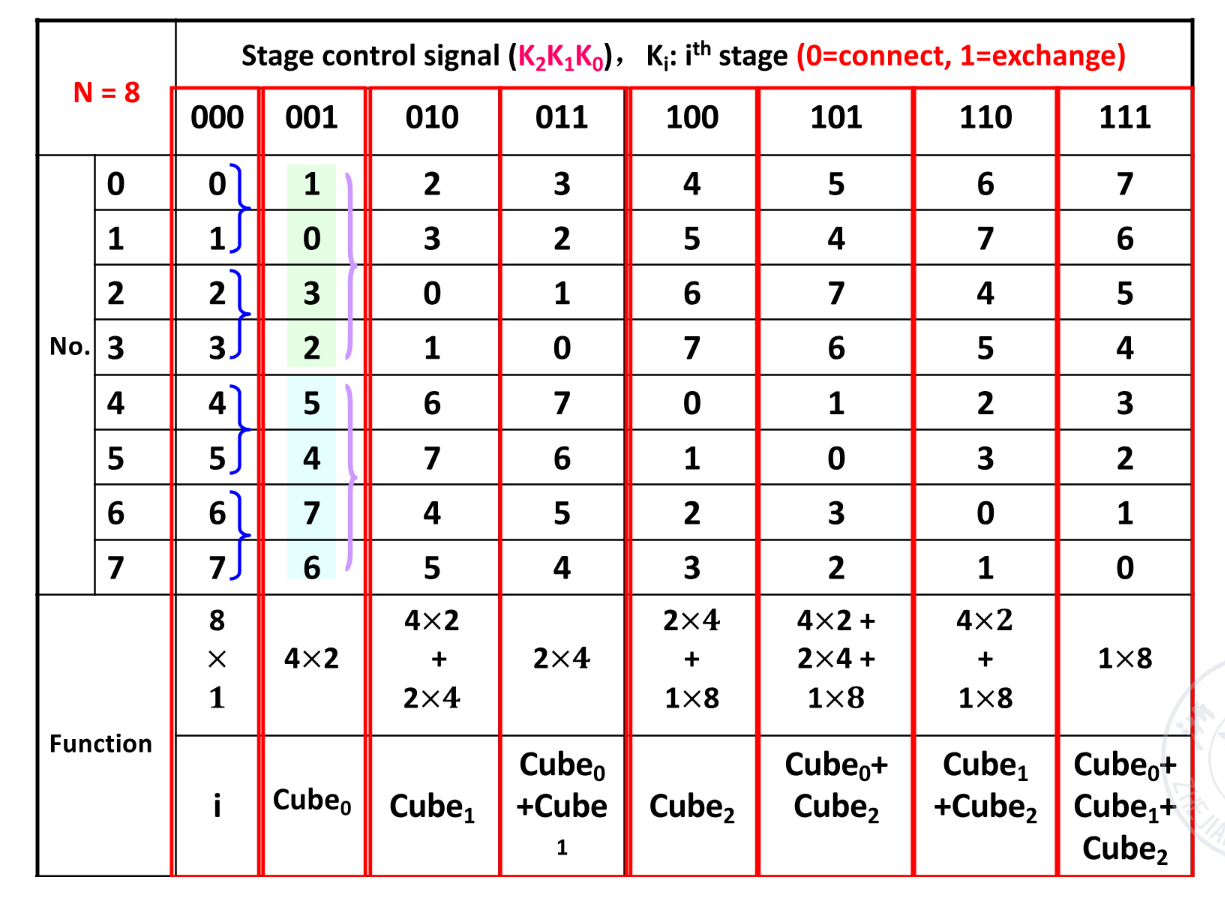

Each switch can be chosen direct connection or exchange connection,8 different connections in total

hint:the binary representation of connect/exchange corresponds to the function

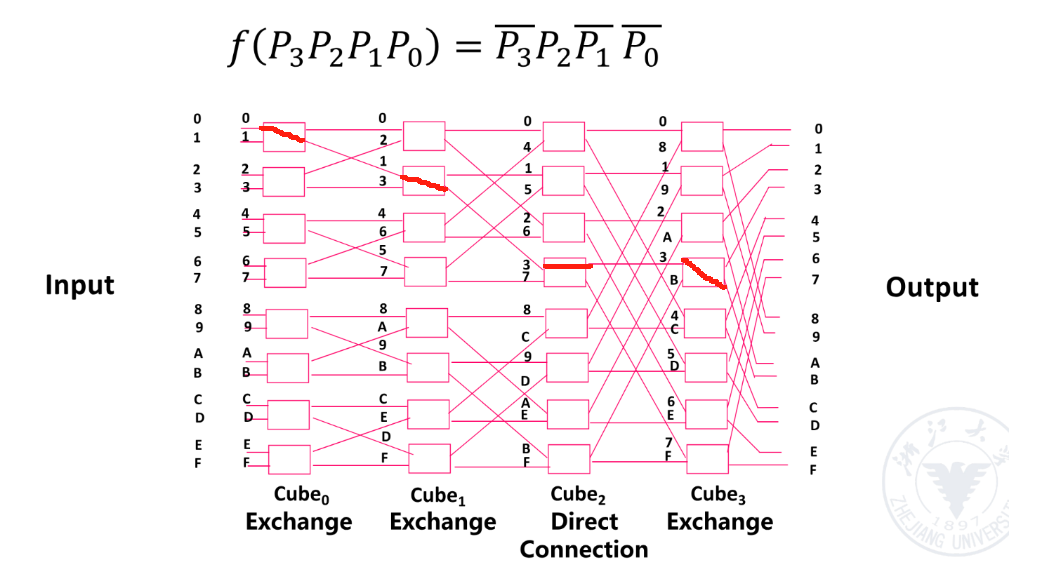

Example:

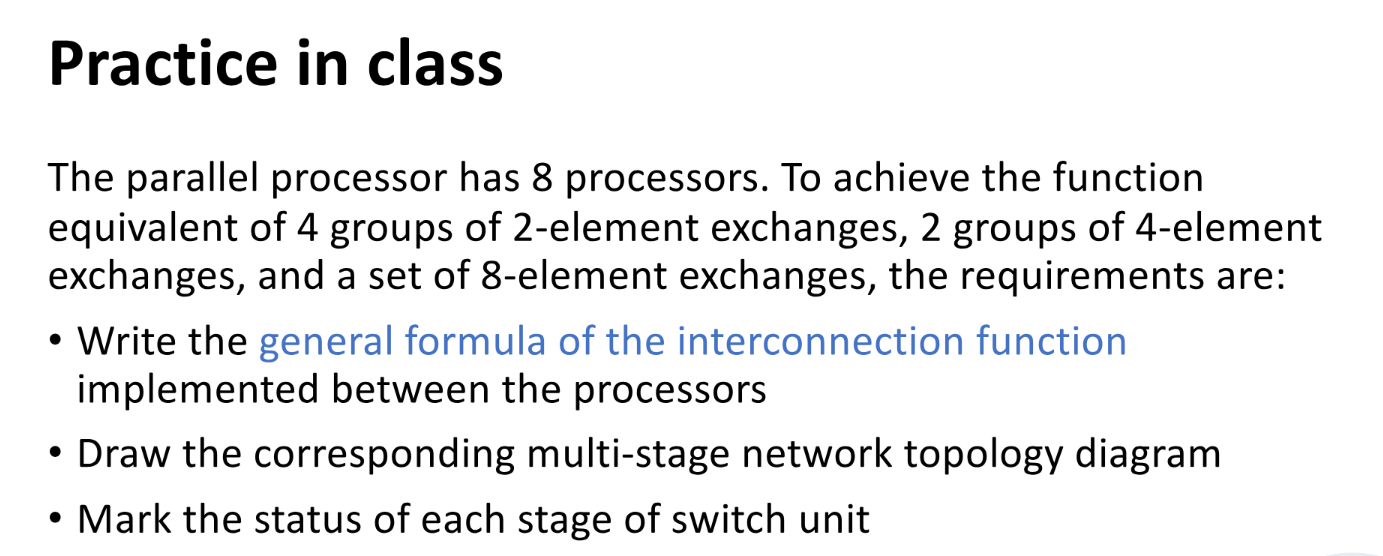

Practice

alt text
shuffle

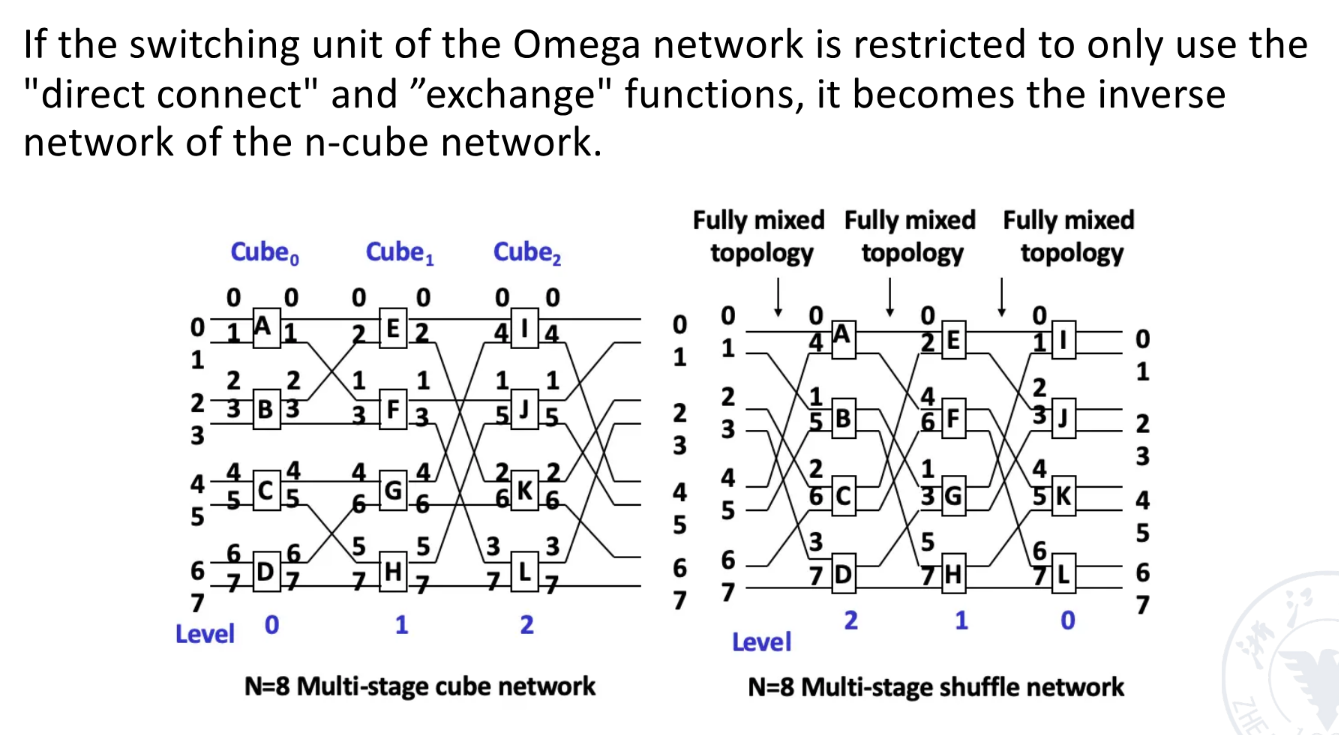

Multi-level shuffle exchange network(a.k.a Omega network)

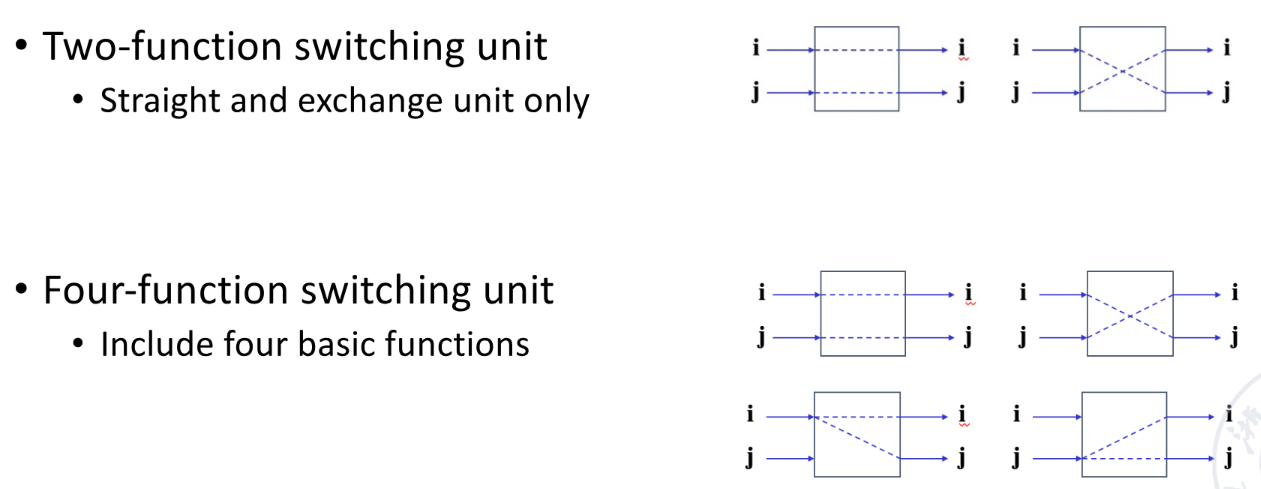

switch function has 4 functions
topological structure is inverse to the cube structure

alt text

DLP in GPU¶

SIMD exploit parallelism for:matrix,media
Graphical Processing Unit(GPU)
heterogenous(异源) execution model

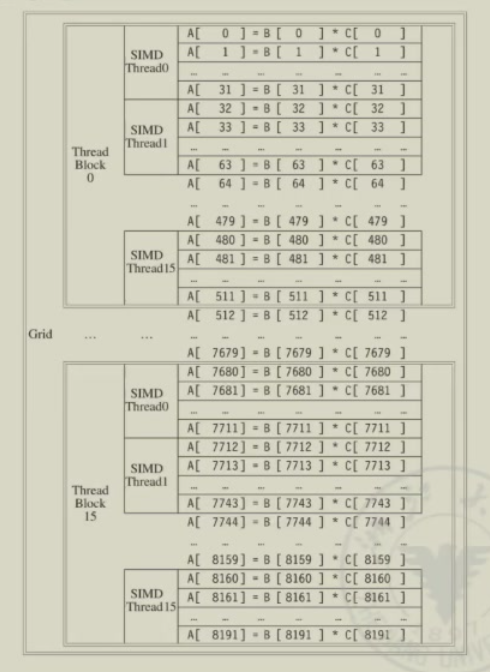

forms of GPU parallelism:CUDA(Compute Unified Device Architecture) thread
Single instruction multiple thread

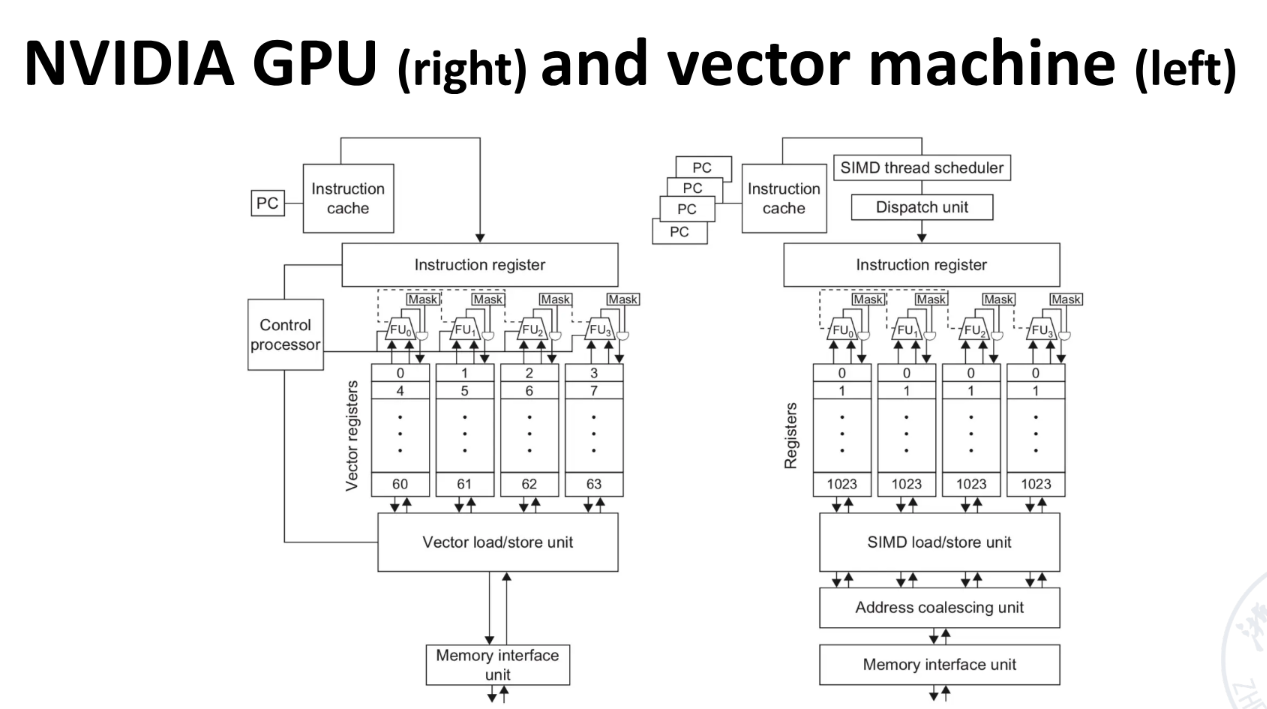

Multithreaded SIMD processors:SIMT
alt text
GPU memory is shared by all grids
Local memory is shared by all threads of SIMD instructions within a thread block
Private memory is private to a single CUDA Thread

LLP¶

LLP:Loop-Level Parallelism
Loop-carried dependence:focuses on determining whether data accesses in later iterations are dependent on data values produced in eariler iterations

for(i=999;i>=0;i--)
  x[i] = x[i] + s;//no loop-carried dependencence

for(i=0;i<100;i++) {
  A[i+1] = A[i] + C[i];  //S1->S1
  B[i+1] = B[i] + A[i+1];//S1->S2,S2->S2
  //loop-carried dependence
}

for(i=0;i<100;i++) {
  A[i] = A[i] + B[i];  //S1
  B[i+1] = C[i] + D[i];//S2
  //S1 uses value computed by S2 in previous iteration
  //S2 in i-1 -> S1 in i
  //but dependence is not circular,S2 can be done in parallel
}

//rewrite to erase loop-carried dependence
A[0] = A[0] + B[0];
for(i=1;i<100;i++) {
  B[i] = C[i-1] + D[i-1]; //生产者
  A[i] = A[i] + B[i];     //消费者
  //data access depends on the value produced in the same iteration
  //no loop-carried dependence
}
B[100] = C[99] + D[99];

for(i=0;i<100;i++) {
  Y[i] = X[i]/c;
  X[i] = X[i] + c;//name dependence
  Z[i] = Y[i] + c;//RAW
  Y[i] = c - Y[i];
}
//rewrite:
for(i=0;i<100;i++) {
  T[i] = X[i]/c;
  P[i] = X[i] + c;
  Z[i] = T[i] + c;
  Y[i] = c - T[i];
}

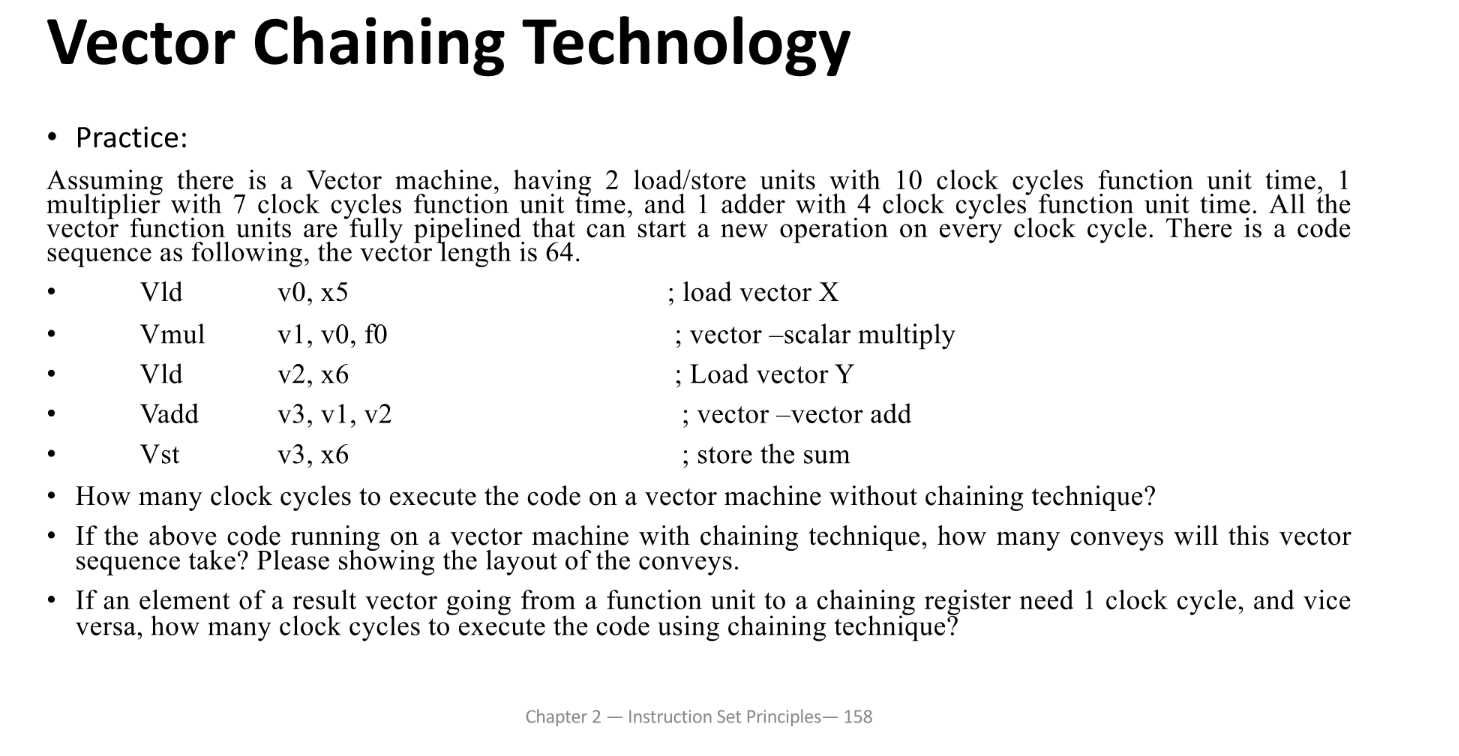

!!! TODO:practice alt text

MIMD:Thread-level Parallelism¶

MIMD:multiple instructions multiple data multi-processor:shared memory
multi-computer:message passing
NORMA(no-remote memory access)
alt text

Uniform-Memory Access(UMA)¶

集中共享，紧耦合的共享资源，a.k.a SMP(Symmetiric(Shared-memory) Multi-Processors)
alt text
each CPU owns its cache and small private memory

Non-Uniform-Memory Access(NUMA)¶

分布式，a.k.a DSP(Distributed Shared-memory Processors)
alt text
NC-NUMA:Non-Cache Non-Uniform Memory Access
CC-NUMA:Coherent Cache Non-Uniform Memory Access

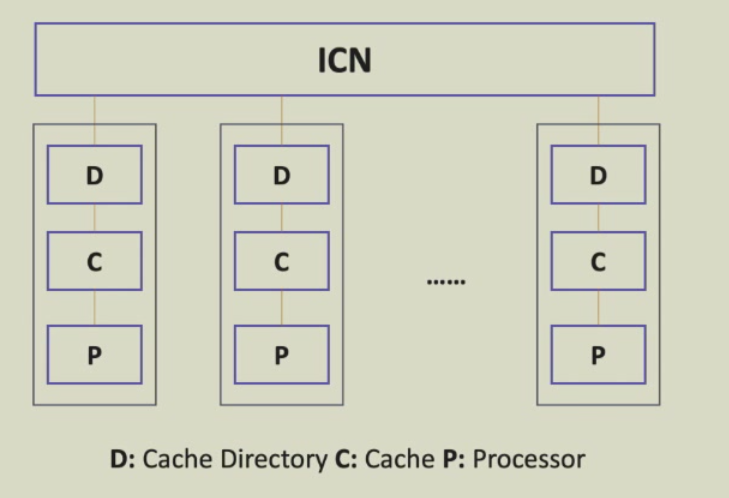

Cache-Only Memory Access(COMA)¶

alt text
COMA is a special case of NUMA
Coherent Cache by applying cache-coherence protocol

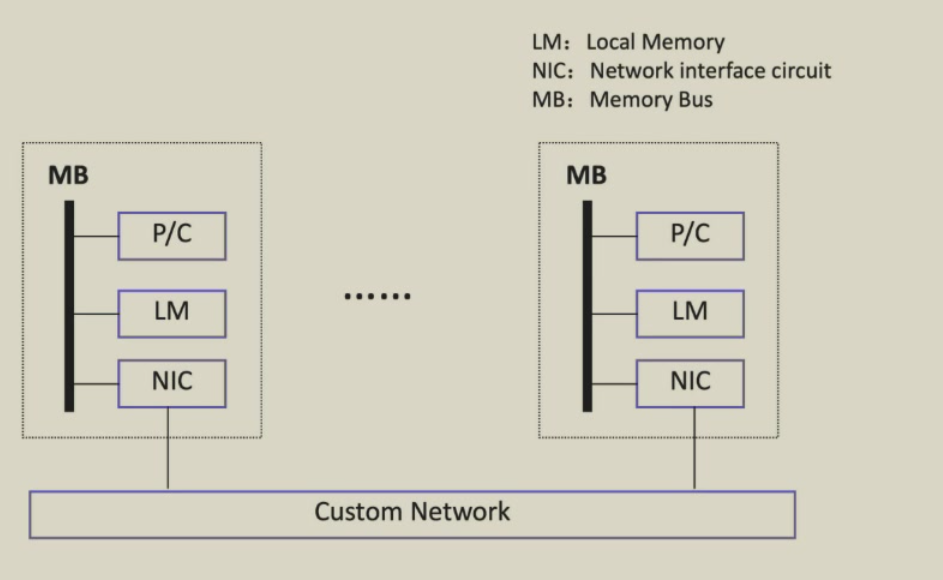

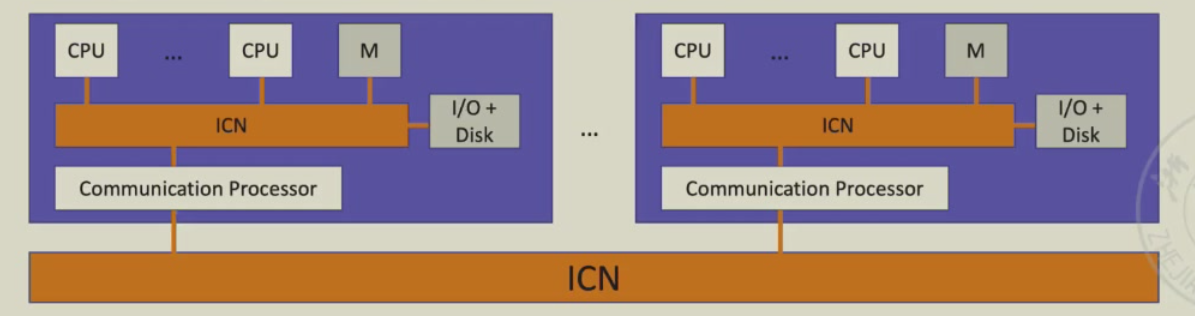

Massively Parallel Processors(MPP)¶

Multiple processors(standard CPUs) connected by custom network
alt text

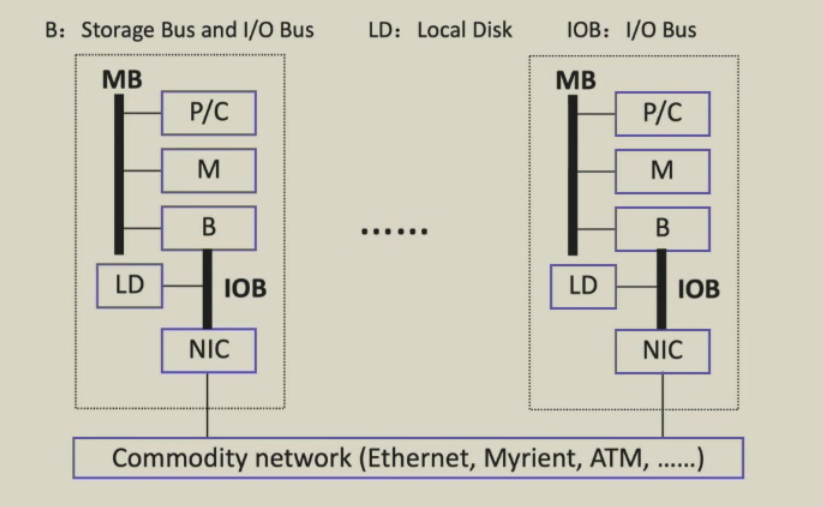

Clusters of Workstations(COW)¶

a large number of PCs or workstations connected by commercial network
alt text

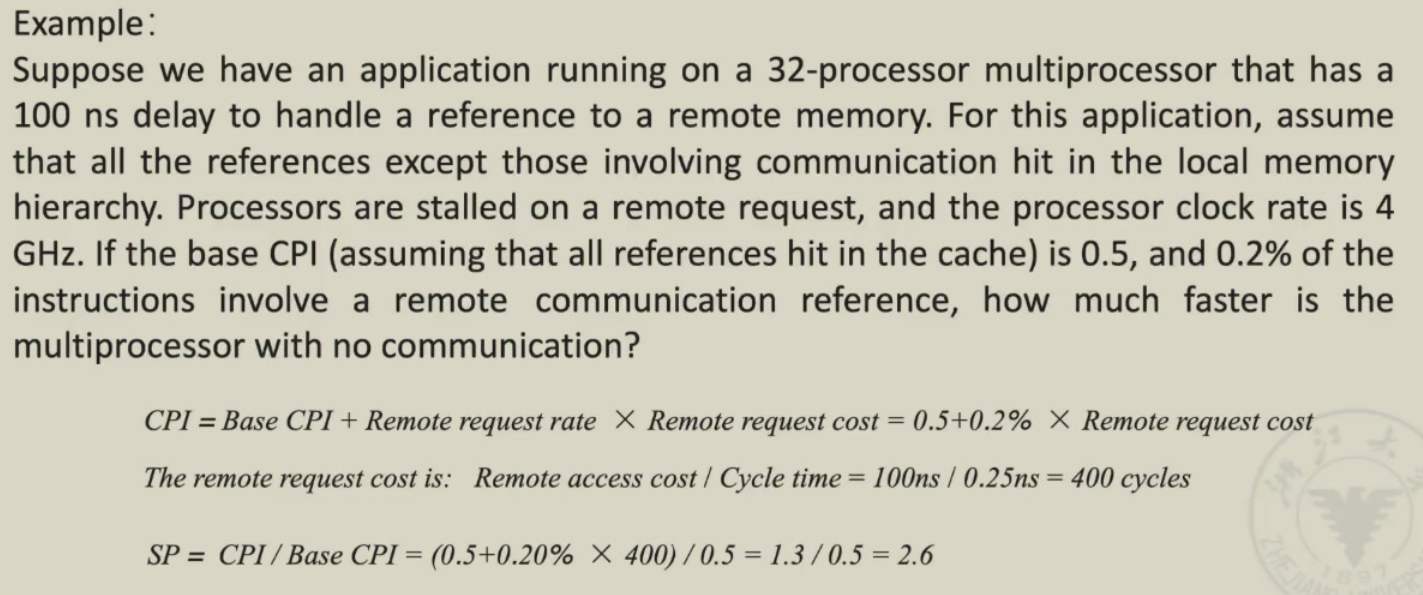

Performance evalutation¶

hurdle:limited parallelism avaliable in programs,relatively high cost of communications
Recall Amdahl's Law:
\(Speedup_{overall} = \frac{Execution\ time_{old}}{Execution\ time_{new}}= \frac{1}{(1-Fraction_{enhanced}) + \frac{Fraction_{enhanced}}{SpeedUp_{enhanced}}}\)
alt text

Cache Coherence¶

An example

time	event	cacheA	cacheB	memory
0				0
1	Aread	0		0
2	Bread	0	0	0
3	Astore	1	0	1

memory consistency:a processor writes location A followed by B,any processor that sees the new value of B must also see the new value of A读写顺序
using memory consistency model
relaxed consistency model:allows out-of-order execution,using synchronization
R->W,R->R are often relaxed
cache coherence:all reads by any processor must return the most recently written value,writes to the same location by any two processors are seen in the same order by all processors
causing by migration & replication
using cache coherence protocol

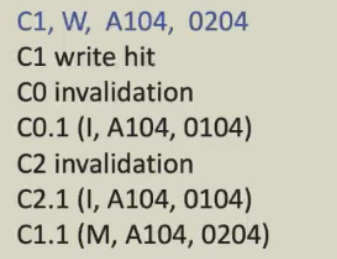

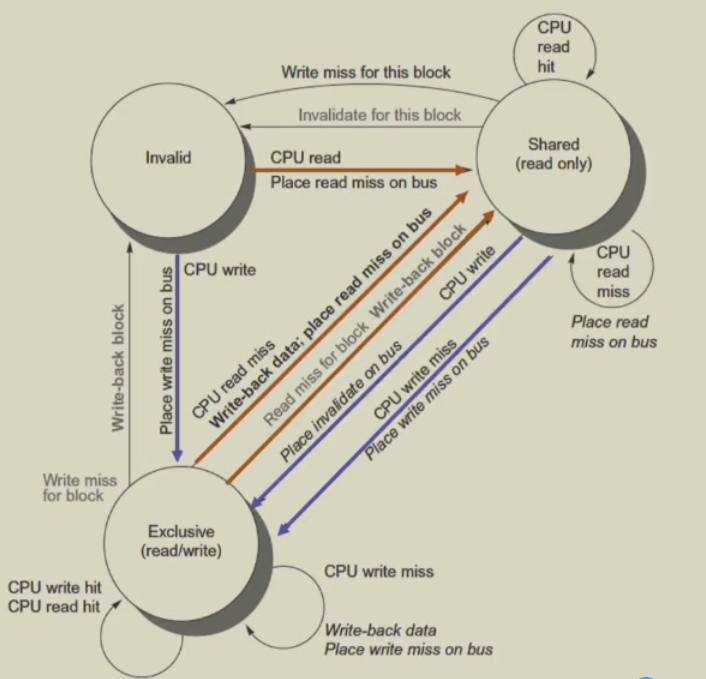

Bus snooping protocol(UMA)¶

监听:broadcast invalid info/update data on the bus to invalidate/update other copies
write through & write back

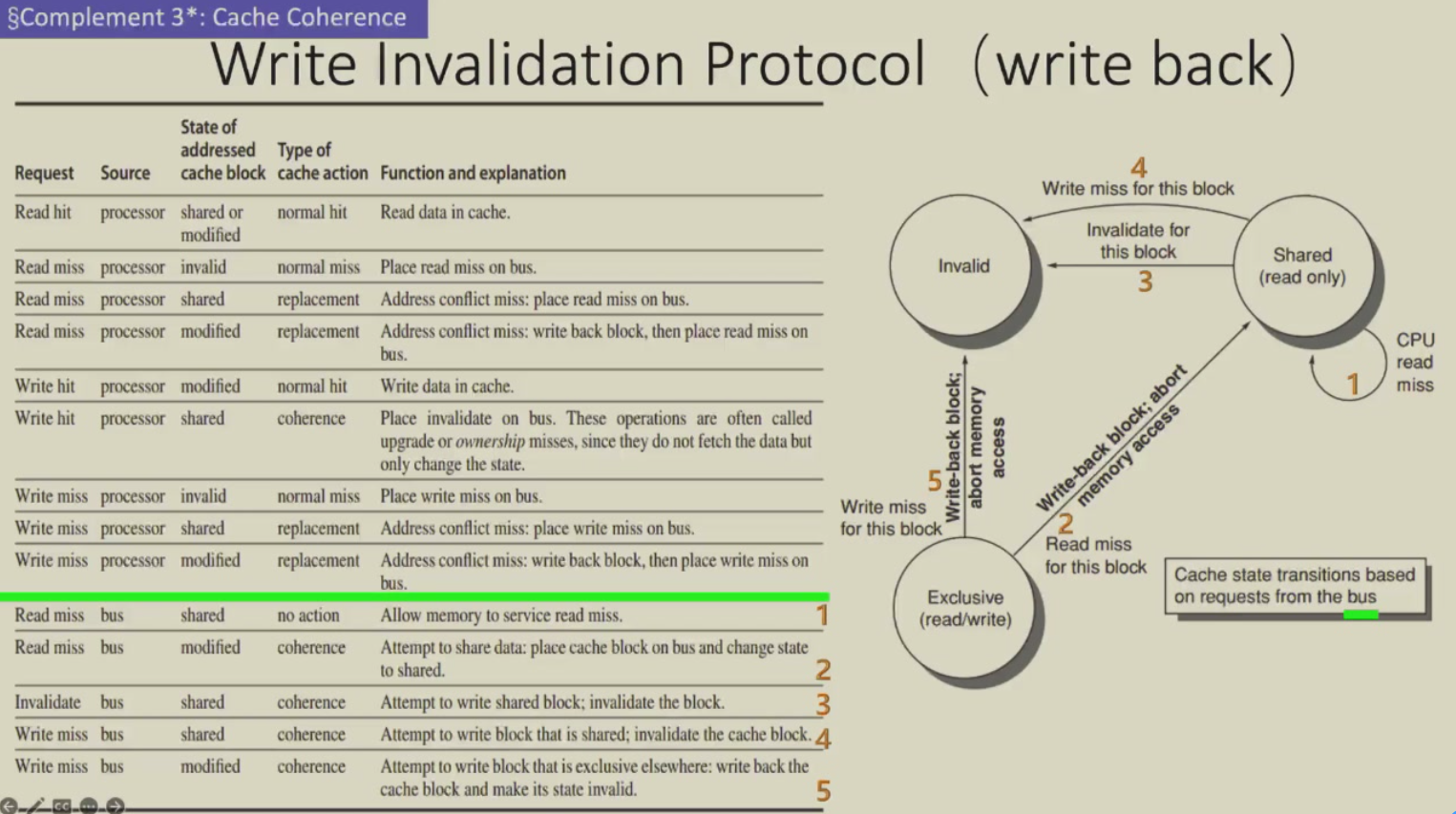

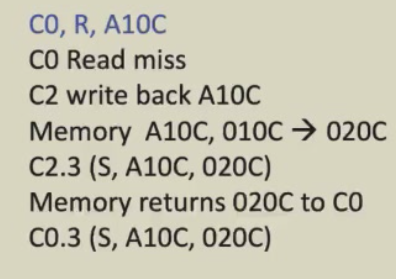

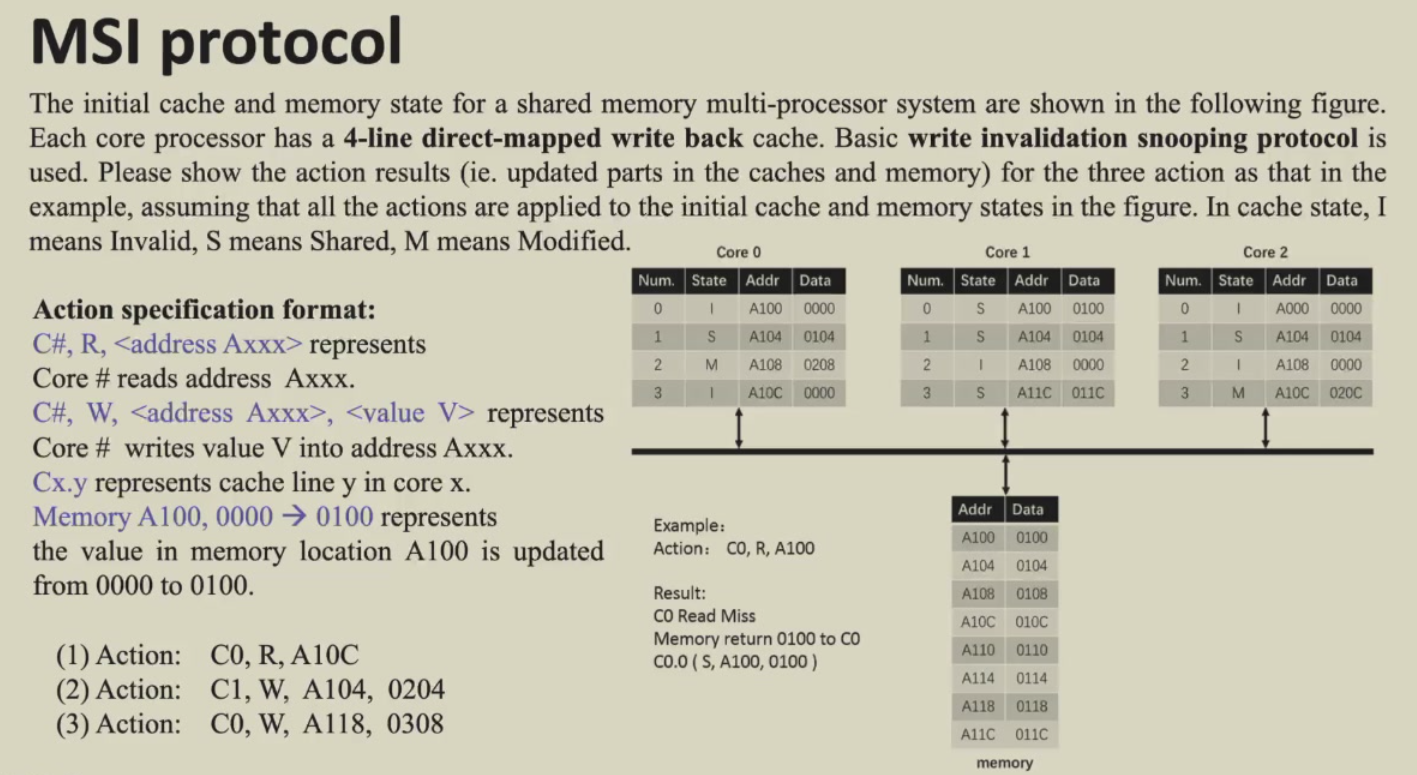

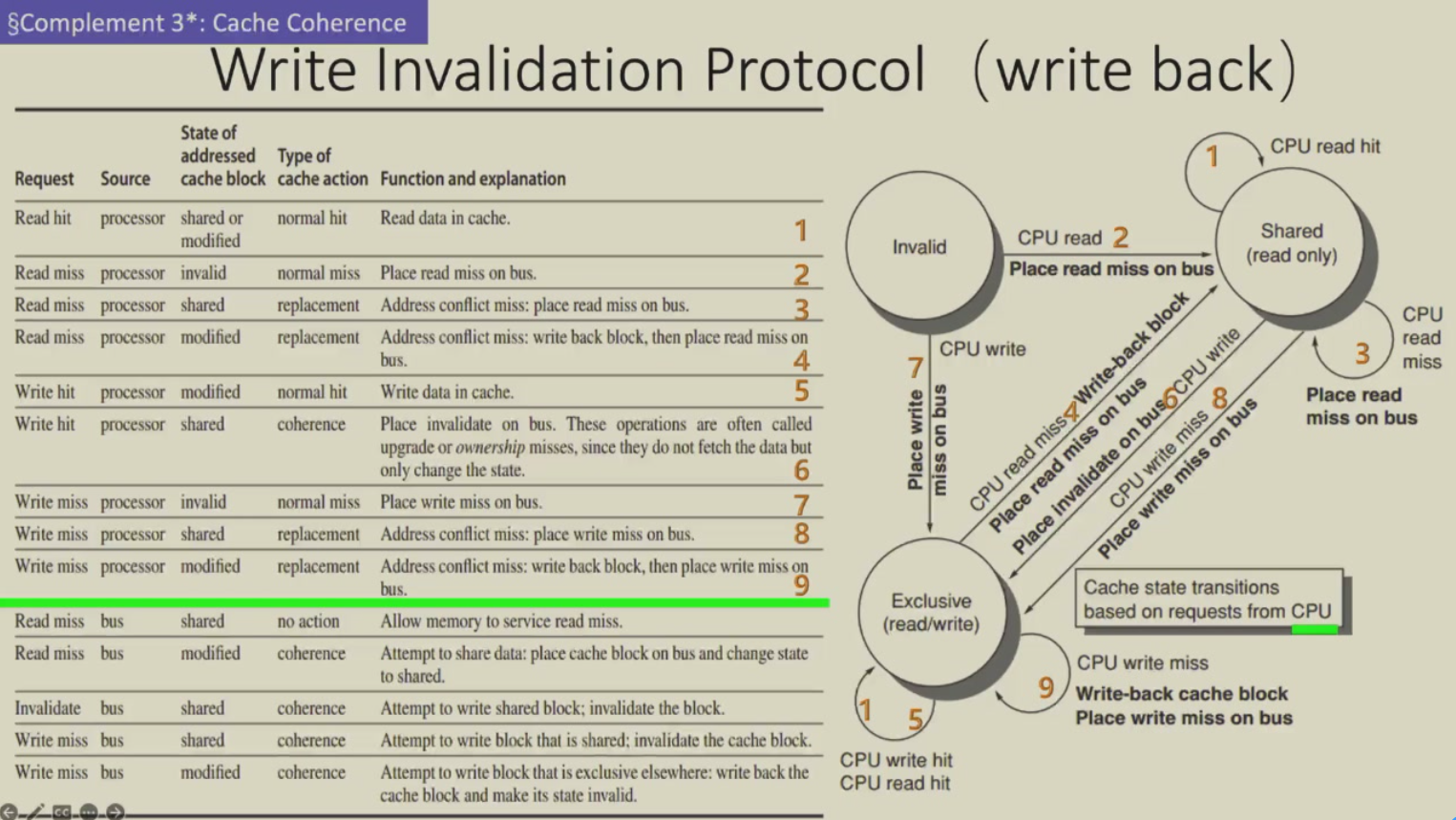

write invalidate protocol(using write back)
|processor|buss|cacheA|cacheB|memory| |-------|-------|-------|-------|-------| |||||0| |Aread|cache miss|0||0| |Bread|cache miss|0|0|0| |Awrite|invalidation|1|X|0| |Bread|cache miss|1|1|1|

MSI protocol
- Invalid
- Shared
- Modified(Exclusive)

alt text

!!! TODO:practice

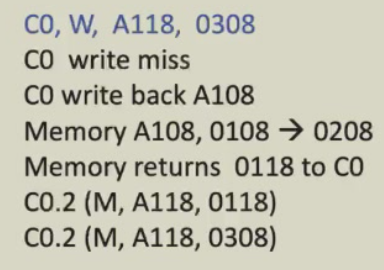

alt text

MESI protocol
exclusive -> shared if read by others
exclusive -> modified if written
True exclusive,no copy in other cores,no invalidation will happen(no broadcast is needed)

Directory based protocol(NUMA)¶

directory for recording which processors in the system have copies of certain blocks in the cache,sends invalid signal to processors that have copies through the directory when one cache writes

Final Review Week16¶

体系结构¶

量化研究方法¶

选择题 CPI,CPU time的计算
Amdahl's Law:计算SpeedUp

ILP¶

Data Dependencies
Name Dependencies
(RAW,WAR,WAW)
Control Dependencies
是否存在冒险的区分

Scoreboard¶

ID -> IS(in-order) + RO(out-of-order)

Tomasulo¶

Reservation station,command bus

Hardware-based Speculation¶

using Reorder buffer(ROB) before writing back to registers

Cache¶

Block placement(fully associative,set associative,direct mapped)
Which one has a lower cache miss rate?
Block identification(tag/block)
Given cache size,associative method,calculate the tag bit number,...(see homework)
Block replacement(Random,LRU,FIFO)
Write strategy(Write Back,Write Through(with write buffer))
What happens if write hit or write miss?(combined with cache coherence protocol)
\(AMAT = (HitTime + MissRate * MissPenalty)\)
给定CPI，MissPenalty，MissRate计算AMAT，CPUTime等

Multiple issue & static scheduling¶

选择题，区分Superpipeline,superscalar,VLIW

DLP¶

SIMD
各自的特点

Vector Processor¶

CRAY-1

Array Processor¶

interconnect network

TLP¶

MIMD
UMA(SMP),NUMA(DSP)区别，适用场景
memory consistency不涉及，只考察与Coherence的区别
MSI protocol(snooping)
状态机
MESI(+Exclusive)

OS¶

Main Memory¶

Paritition,Segmentation
Fragmentation(internal,external)
Paging to avoid external fragmentation
Address translation
PTBR(page-table base register) contains physical address
TLB acceleration:page cache in CPU
Effective Access Time(EAT)
pages must physical contigious
page directory number,page table number,page offset(calculation!)
Hashed page table,inverted page table

Demand paging¶

Page Fault
Page replacement(FIFO,optimal,LRU,LFU,MFU)
几次缺页

Page size¶

TLB reach

Mass Storage¶

Disk scheduling(FCFS,SSTF,SCAN,C-SCAN,C-LOOK)计算各个算法下磁头移动的距离

I/O System¶

Polling & Interrupt

File System¶

File attributes Open files(per-process table,system-wide table)
Directory:link&unlink Protection:permission(ACL,Unix)

File System Implementation¶

FCB(file metadata)
note:file name is stored in directory metadata,not FCB!
on-disk structure,directory structure
multi-level pointer(计算max file size)
例：最多读3次(single indirect)
disk block allocation:contiguous,linked-list,indexed

计算机系统III¶

体系结构¶

Fundamentals of computer system Week1¶

系统量化研究方法 Quantitative approach¶

Amdahl's Law(性能优化)¶

Great Architecture Ideas¶

Instruction-Level Parallelism(ILP) Week2 - 3¶

Branch prediction¶

Dynamic Scheduling¶

Scoreboard¶

Tomasulo¶

Hardware-Based Speculation 硬件前瞻¶

Exploiting ILP Using Multiple Issue and Static Scheduling¶

VLIW¶

Superpipeline¶

Memory Hierarchy(Cache) Week4 - 5¶

Introduction¶

Technology Trend¶

Memory Hierarchy¶

Cache Miss¶

Cache Design¶

1.Where can a block be placed in the upper level?(Block placement)¶

Direct mapped¶

Fully associative¶

n-way Set associative¶

2.How is a block found if it is in the upper level?(Block Identification)¶

Cache Size calculation¶

3.Which block should be replaced on a cache/main memory miss?(Block Replacement)¶

Random¶

LRU¶

FIFO¶

OPT(In theory)¶

Stack replacement algorithm¶

Implementation¶

4.What happens on a write?(Write Strategy)¶

Virtual Memory¶

Memory System Performance¶

*CPU Vulnerability¶

Meltdown¶

Spectre¶

Cache Optimization presentation Week 6¶

OS¶

Main Memory Week7 - 10¶

Partition¶

Memory allocation strategy¶

Segmentation¶

Paging¶

Implementation¶

Structure¶

Hashed page table¶

Inverted page table¶

Swapping¶

Practice¶

Virtual Memory¶

Page fault¶

Allocation¶

Thrashing¶

Kernel Memory Allocation¶

Other considerations¶

*Free Space Management¶

File System Week10 - 12¶

File System Interface¶

File structure¶

Single-Level Directory¶

Two-Level Directory¶

Tree-Structured Directory¶

Acyclic-Graph Directory¶

Mounting¶

File Sharing¶

ACL¶

File and Directory¶

File System Implementation¶

Layered File System¶

Implementation¶

Disk Block Allocation¶

Free Space Management¶

File System Performance¶

Recovery¶

Example¶

Directory organization¶
