数据挖掘导论¶
Lecture 1:Introduction¶
[Definition] knowledge discovery from data
1.extraction of implicit,previously unknown and potentially useful info from data
2.exploration and analysis,by automatic or semi-automatic means,of large quantities of data to find meaningful patterns
input data -> data mining -> output data -> information pattern
data types:relational table,set data,sequence data,time series,multimedia data,spatial-temporal data,graph data
patterns:association rule,prediction(classification & regression),clustering,ranking(PageRank),recommendation(collaborative filtering,user-based & item-based)
- structured data:relational record,matrix data
attribute types:numerical,string,category(nominal(hair_color),binary,ordinal(size)),discrete vs. continuous
- semi-structured data:emails,HTML,JSON
- unstructured:textual,audio,image,video
central tendency:mean,median,mode(众数)
distribution:symmetric,positively skewed(mode < median < mean,e.g.居民收入),negatively skewed(mode > median > mean,e.g.人口寿命)
disperation:variance(\(\sigma^2\) for population总体) and standard deviation(\(s^2\),unbiased estimation,for sample样本)
boxplot,histogram,scatter
Pearson corelation coefficient
feature data visualization,high-dimensional data visualization with t-SNE,map mesh,hybrid visualizaion,tag cloud,graph
similarity:L1/L2-distance,Minkowski distance(L-h),edit distance(string),Jaccard(set),DTW(Dynamic Time Wrapping for time series)
Lecture 2:Data Preprocessing and Data Warehouse¶
Data Preprocessing¶
Data Cleaning¶
Missing Data,Inconsistent Data,Noisy Data
HoloClean:ML
RetClean:Retrieval-Based Data cleaning via LLM
Data Integration¶
schema integration集成:provide uniform access to data avaliable in multiple,autonomous,heterogeneous and distributed data sources
entity resolution实体解析:识别和合并来自同一个现实世界实体的不同数据记录
redundancy handling
Data Reduction¶
[Definition] Obtain a reduced representation of the dataset that is much smaller in volume but yet produces (almost) the same analytical result
Dimensionality Reduction¶
PCA,LDA
Numerosity Reduction¶
sampling:random/stratified(分层)
Data Compression/Transformation¶

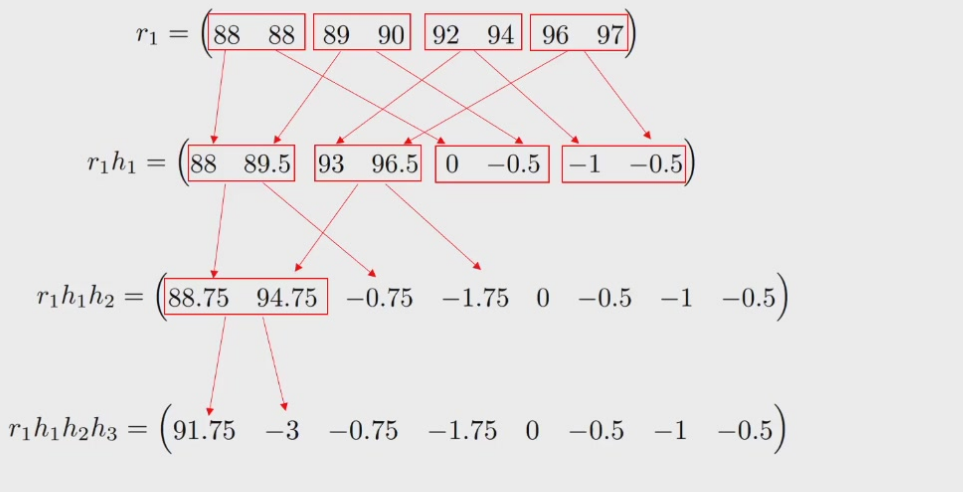

wavelet transform:无损变换，可逆
grid index:外卖配送
normalization:
- min-max scaling \(x'=\frac{x-min}{max-min}\)
- Z-score:\(x'=\frac{x-\mu}{\sigma}\)
- log-based for term freq:\(w_{t,d}=1 + \log t_{f,d}, if\ t_{f,d}>0\)
Data Warehouse¶
[Definition] 用于存储和管理来自多个异构数据源的历史数据、专为分析查询和商业智能优化的大型中央存储系统
OLTP(online transaction processing) vs. OLAP(online analytical processing)
[Features] subject oriented,integrated,time-variant,non-volatile(无损，cannot be deleted or changed)
DataLake:centralized repository that allows you to store all your structured and unstructured data at any scale
DataLake is schema on the read(analyze when use,for data scientists),DataWarehouse is schema on the write(analyze before storage,for business analytics)
DataCube:data be modeled and viewed in multiple dimensions
OLAP operations¶
aggregator:count(),sum(),min(),max(),avg(),median(),mode(),rank()
roll-up & drill-down:increase/decrease data aggregation or removes/add detail level
slicing:set one of the dimensions to reduce the number of cube dimensions
dicing:reduce the set of data by a selection criterion
pivoting:change the structure of the cube,view differently
Implementation¶
View materialization:lazy,periodic or event-based/forced
cube = a lattice of cuboids
indexing:bitmap
ClickHouse
parallel read,join optimization
Lecture 3:Classification¶
semantic analysis,image classification,action recognition
classification vs. regression
weakly-supervised learning:low-quality label supervised learning
self-supervised:crop and resize;masked autoencoding
kNN,decision tree,Bayes classification,SVM
linear regression,logistic regression,model ensemble
Lecture 4: Clustering¶
basic clustering see Machine Learning Lecture 25
soft clustering¶
each point can belong to multiple classes
fuzzy C-means clustering:增加每个点属于某个类的隶属度权重\(w_{ij}\),某个点属于所有超过一定隶属度的类别
Gaussian mixture model¶
fit data with mixture of Gaussian distributions(EM Algorithm)
Spectral clustering¶
- similarity graph(data-pair distance computation)
- k eigenvectors and feature vector of Laplacian matrix
- run k-means on these features

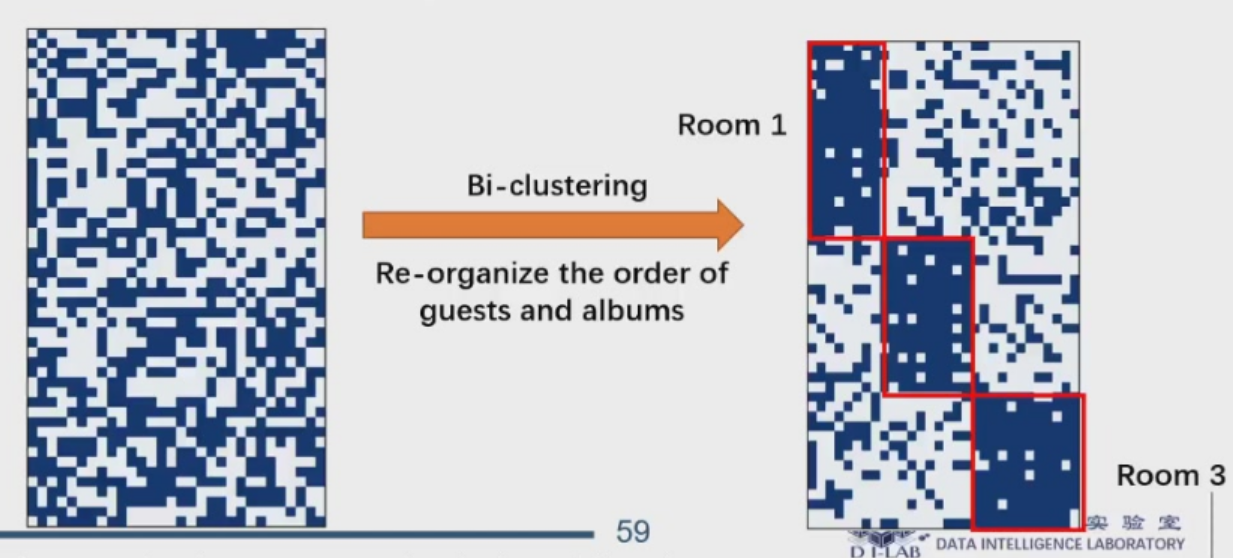

Bi-clustering¶
\(M_{ij}=1\) if guest i likes album j
Lecture 5: Outlier detection¶
[causes] data from different class or underlying mechanism,e.g. rare disease,fraud;natrual variation;data measurement or collection errors
applications:spam/fraud;surveillance;detour;time series;point;contextual
statistical methods¶
\(z=\frac{x-\mu}{\sigma}\)
Grubbs' Test:显著性水平检验
graphical methods¶
box plot
scatter plot
density-based methods¶
max Local Outlier Factor(LOF)
isolation tree¶
distance from a point to root when partitioning a decision tree
credit-card fraud detection¶
autoencoder(regression model):encoder,code and decoder
spam email detection¶
binary classification with ML
trajectory detour detection¶
offline classification model:distance-based feature,time-based feature + logistic regression
prompt engineering¶
role assignment,specific task,clear constraints,format requirements
step-by-step mastery,CoT
sytle mirroring(few-shot prompting)
error correction
Lecture 6: Frequent Pattern Mining¶
frequent item set mining(find the items that are bought together)
frequent attraction set mining
DNA sequence mining
frequent travel route mining
frequent co-location mining
frequent subgraph mining

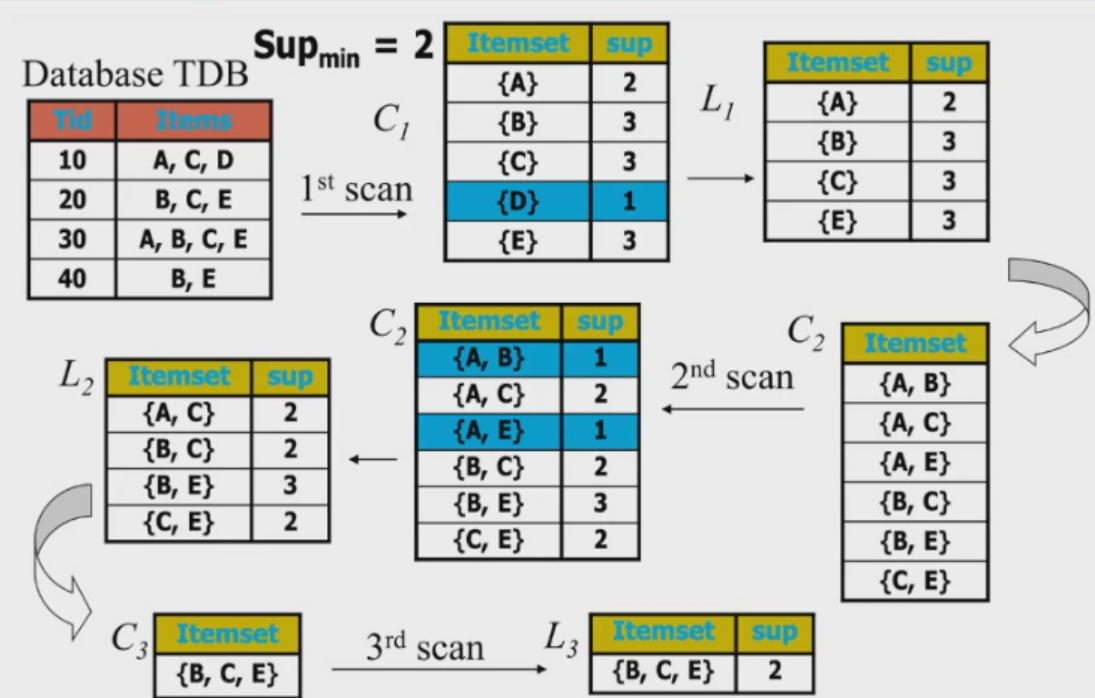

Apriori Algorithm¶
[goal] find the set of items appear together for at least xx times

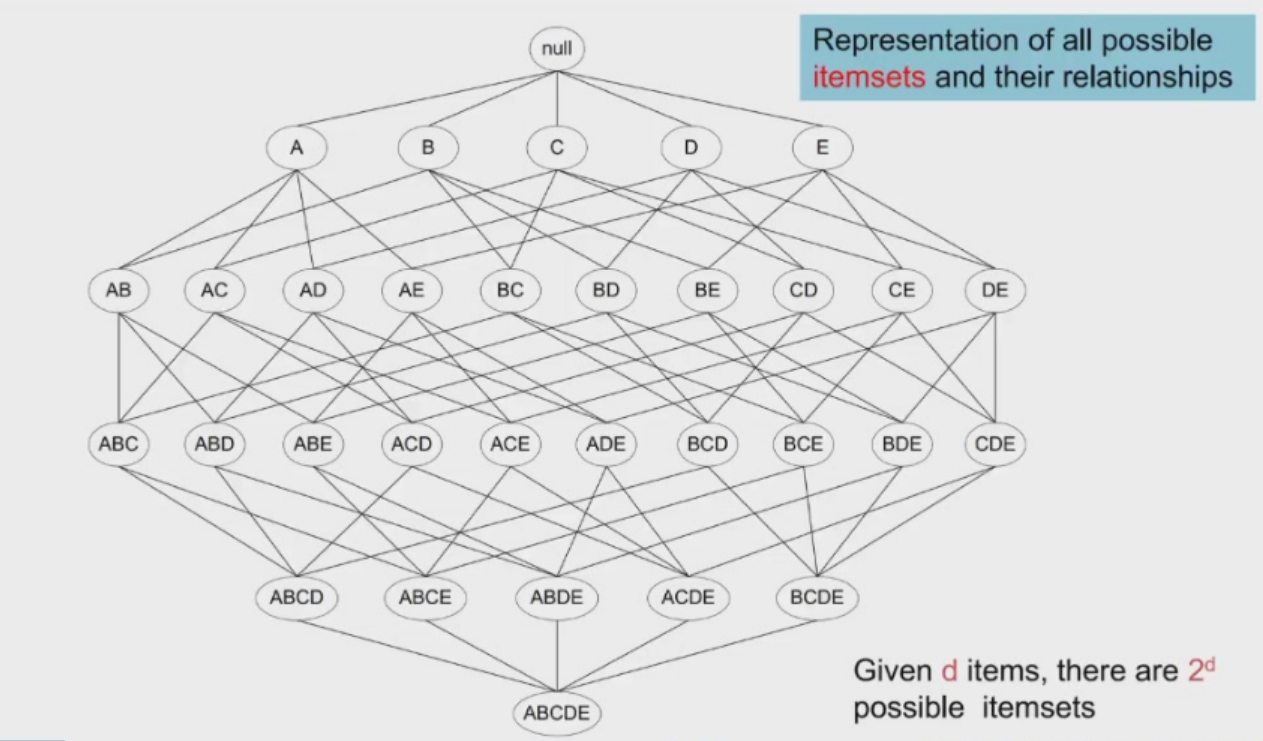

item set lattice
K-item set:{beer,diaper} is 2-item set
support:frequency of an item set(fraction)
frequent item set:support of the item set > minSup
Observation 1:If an item set is frequent,its subsets are frequent
Observation 2:If an item set is infrequent,its supersets are infrequent
candidates in the i-th level generated from the frequent candidates in the i-1-th level,e.g. ABCD = ABC join ABD
pruning:if a candidate is not frequent,prune all its supersets in the next level
[problem] a database scan for every level
Association Rule Mining:Association rule:X->Y,means if X is purchased,so is Y
confidence = P(Y|X)
association rule:confidence of X->Y >= minConf

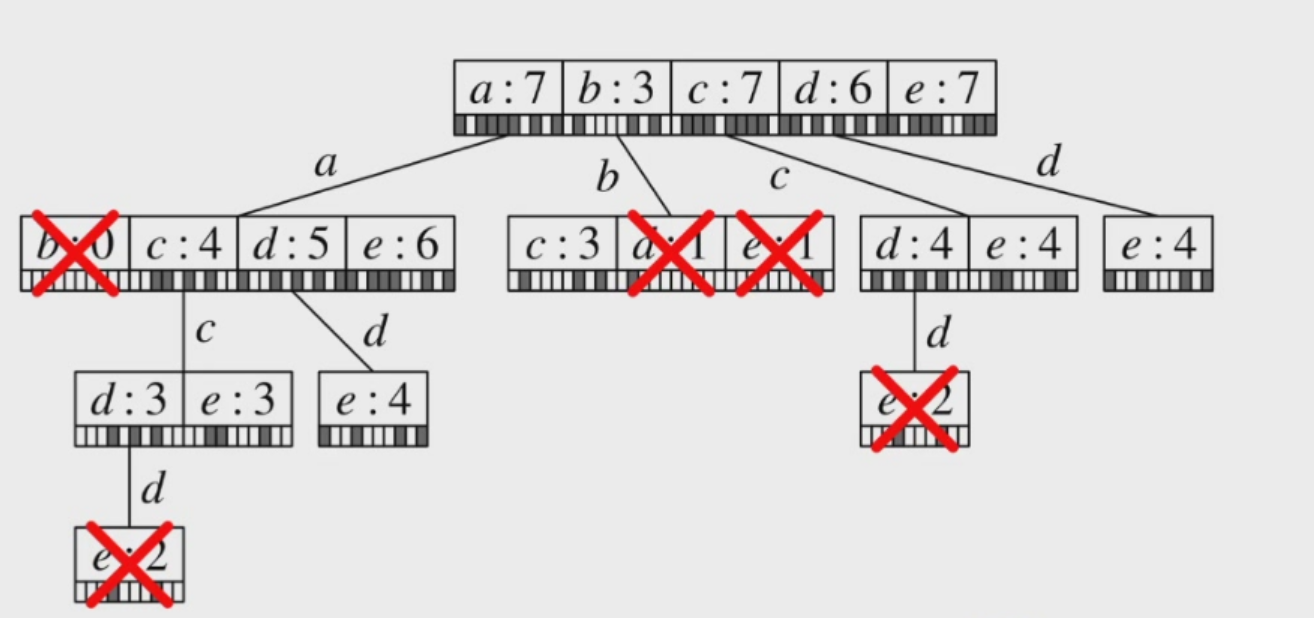

Eclat Algorithm¶

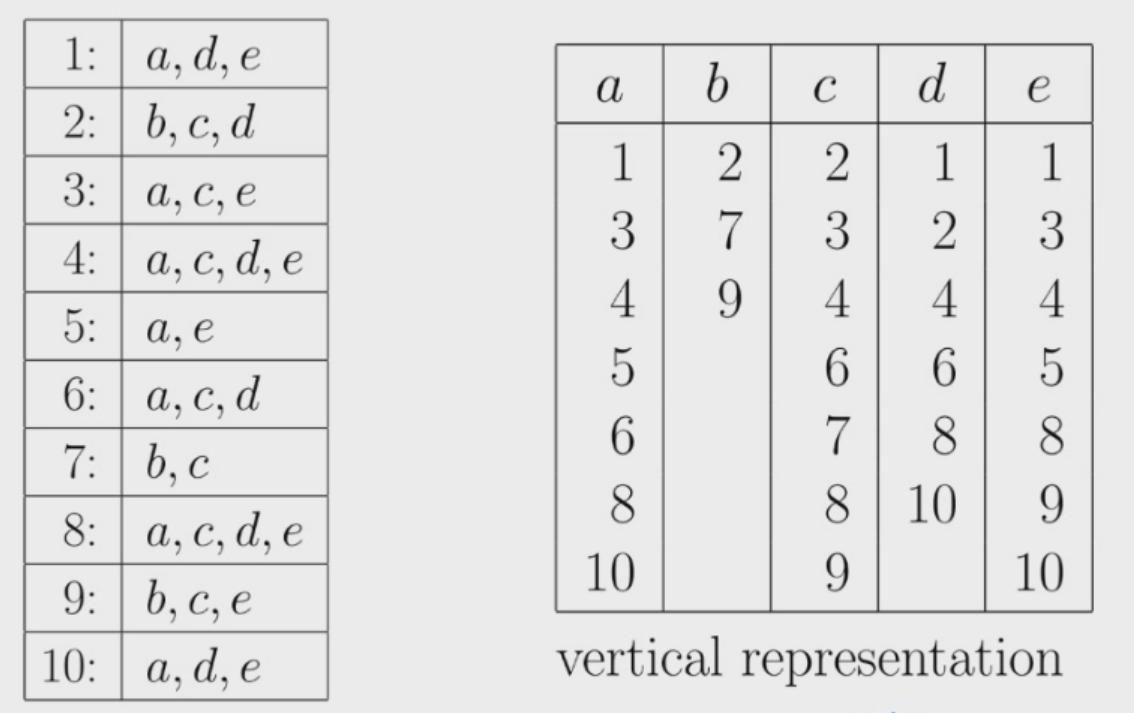

vertical representation
depth-first search

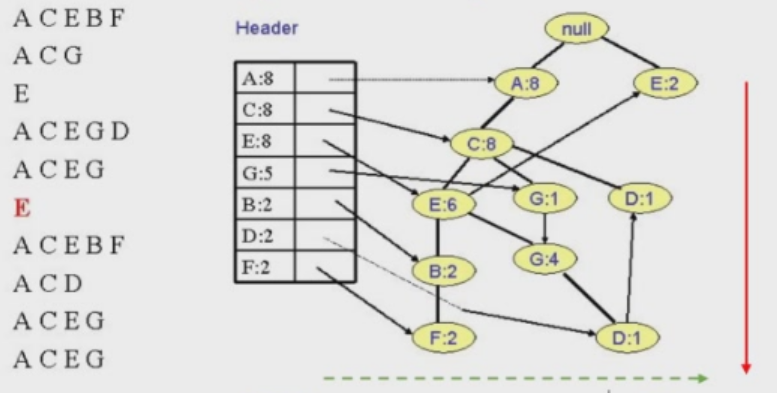

FP-Tree and FP-Growth¶
avoid repeat scan of database
stage 1:using FP-Tree to represent the database using a compressed representation
stage 2:use divide-and-conquer to mine the frequent item sets
F-list:A-C-E-G-B-D-F
minSup = 5 -> candidates end with B,D,F are pruned
patterns end with G,E,C,A -> conditional patterns -> frequent patterns

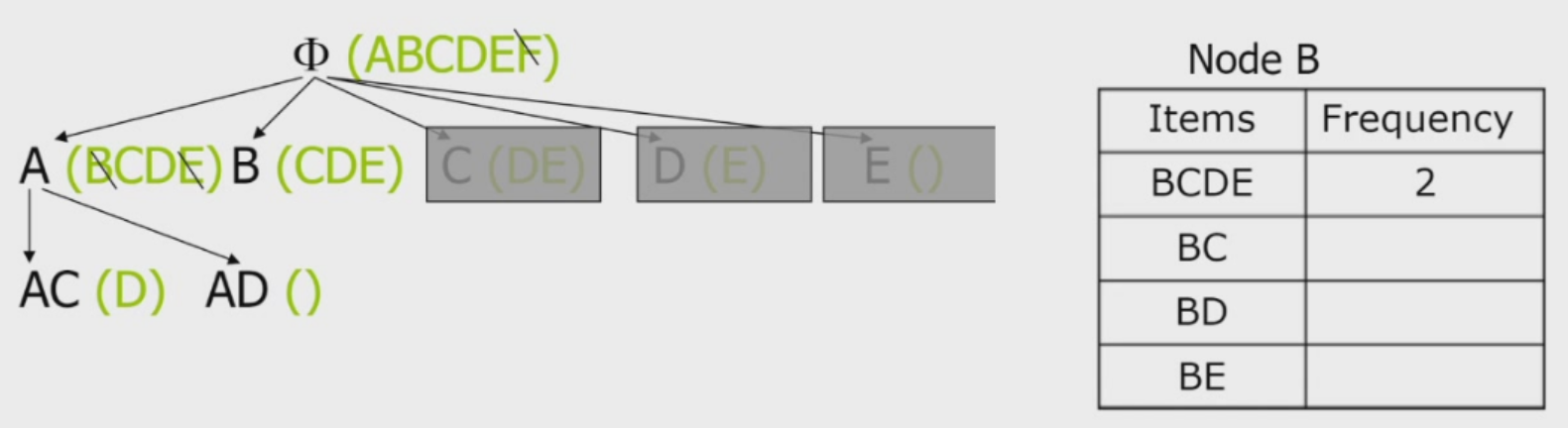

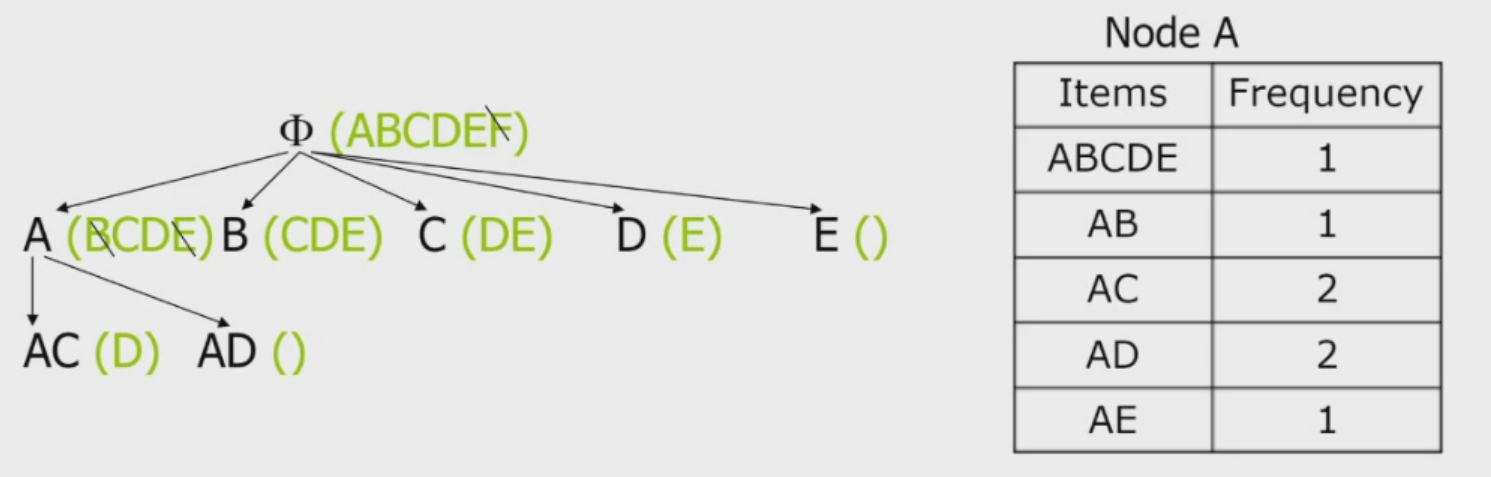

Closed and Maximal pattern mining¶
closed item set:an item set is closed if 1)it is frequent and 2)none of its superset has the same support
maximal item set:an item set is maximal if 1)it is frequent and 2)none of its superset is frequent
MaxMiner Algorithm
Frequent Subgraph Mining¶
Graph Isomorphism同构 determination
Apriori-based Graph Mining:vertex based/edge based
agent skill¶
skill/skill.md,references/,scripts/,assets/
skill.md:metadata, main instructions
按需加载技能具体指令，节省token，避免干扰
reference/:FAQ,API,在skill.md中写明什么时候加载 reference/中的文件
scripts/:python,bash,在skill.md中写明调用脚本的指令与脚本说明
assets/:模板，图片等静态资源
